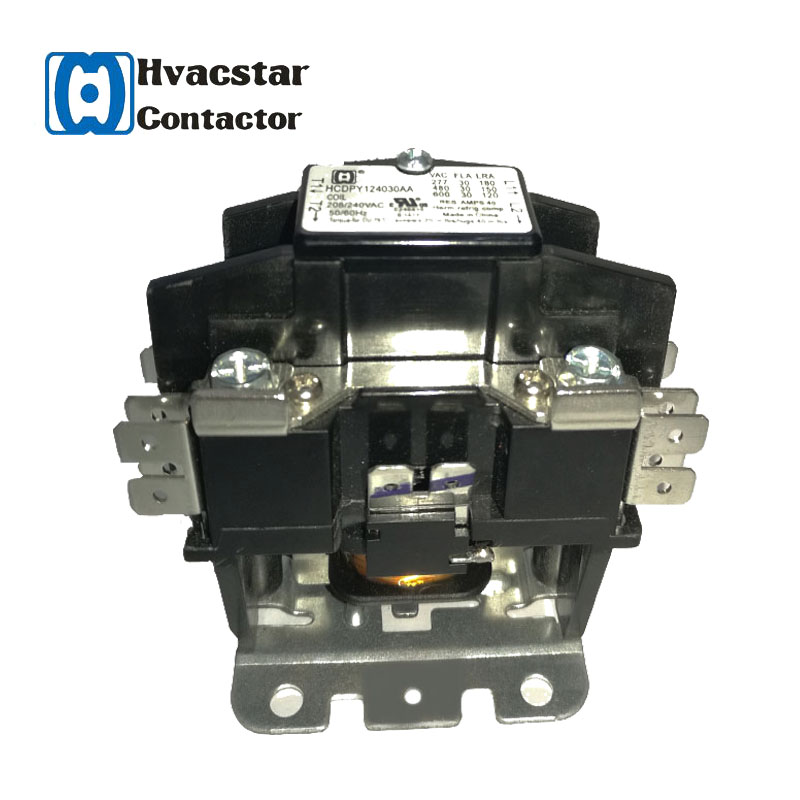

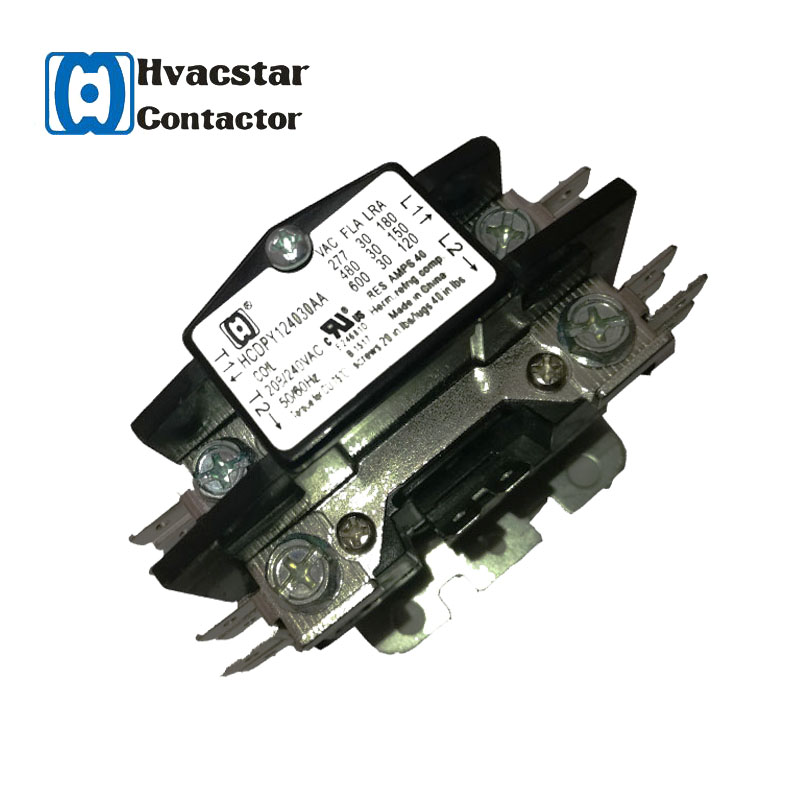

1-Pole 30A Definite Purpose AC Contactor
This 1-pole, 30A AC contactor is designed for definite purpose applications. It is CUL certified for use in HVAC and refrigeration systems.
Technical Specifications
Product Overview
High-Performance Definite Purpose Contactor
This 1-Pole 30A AC contactor is specifically engineered for the demanding requirements of HVAC and refrigeration systems. It offers reliable switching for motors, compressors, and resistive loads, featuring a compact design that integrates easily into residential and commercial units. With UL certification and versatile terminal options, it ensures safe and efficient electrical control in air conditioning and heating applications.
Electrical Ratings
Full Load Amps (FLA)
30 A
Rated Current
Voltage & Load Specifications
| Voltage (VAC) | FLA (A) | LRA (A) |
|---|---|---|
| 277V | 30 | 180 |
| 480V | 30 | 150 |
| 600V | 30 | 120 |
- Resistive Amps
- 40 A
Coil Specifications
- Coil Voltage
- 208/240VAC
- Frequency
- 50/60Hz
Installation & Terminals
Connection Methods
- Quick connect terminals
- Screws
- Box lugs
Tightening Torque
- Control Screws: 20 in-lbs
- Lugs: 40 in-lbs
- Terminal Screws: 25 in-lbs
- Wire Size Range
- 16-8 AWG
Environmental & Safety
- Ambient Temperature Range
- -40°C to 65°C (-40°F to 150°F)
- Insulation System
- 130°C Class B
- Compliance & Certifications
- UL ListedCULCECSACCC
Product Features
Key Features
Hermetically SealedCompact DesignOptional ARC CoverOEM/ODM Available
- Poles
- 1-Pole
