Technical Specifications

Overview

Reliable Definite Purpose AC Contactor

This 1-pole definite purpose AC contactor is engineered for demanding HVAC&R applications, providing reliable electrical switching for motors and heating elements. Designed for consistent performance, it features a robust construction suitable for various voltage ratings and load requirements. Its compact, durable build ensures dependable operation in professional electrical control systems.

Close up view of the 1-pole 30A AC contactor showing terminal layout — Robust construction designed for HVAC&R systems and electrical control applications.

Electrical Ratings

Full Load Amps (FLA): 30 A
Resistive Amps: 40 A
Coil Voltage: 120V AC
Number of Poles: 1

Performance Data

Voltage and Load Performance

Voltage (VAC)	FLA (A)	LRA (A)
277	30	180
480	30	150
600	30	120

Installation & Safety

Terminal Torque Specifications

CU 75°C Screws: 20 in-lbs
Lugs: 40 in-lbs

Certifications & Standards: UL RecognizedCSA CertifiedCE CompliantEN 60947-4-1
Surrounding Air Temperature: 40 °C

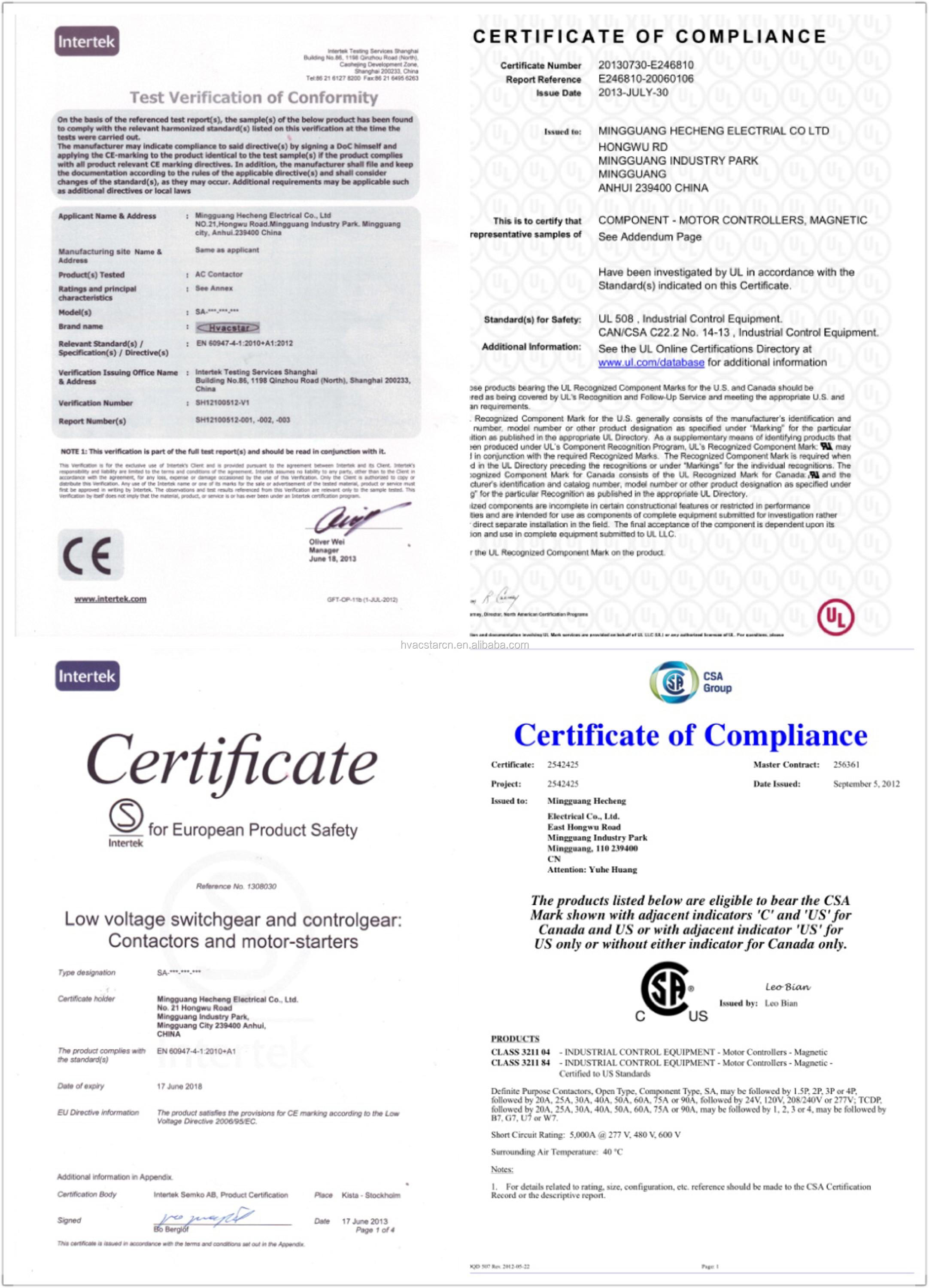

Technical compliance and certification documentation for the AC contactor — Certified for safety and performance, meeting EN 60947-4-1 standards and CE requirements.
