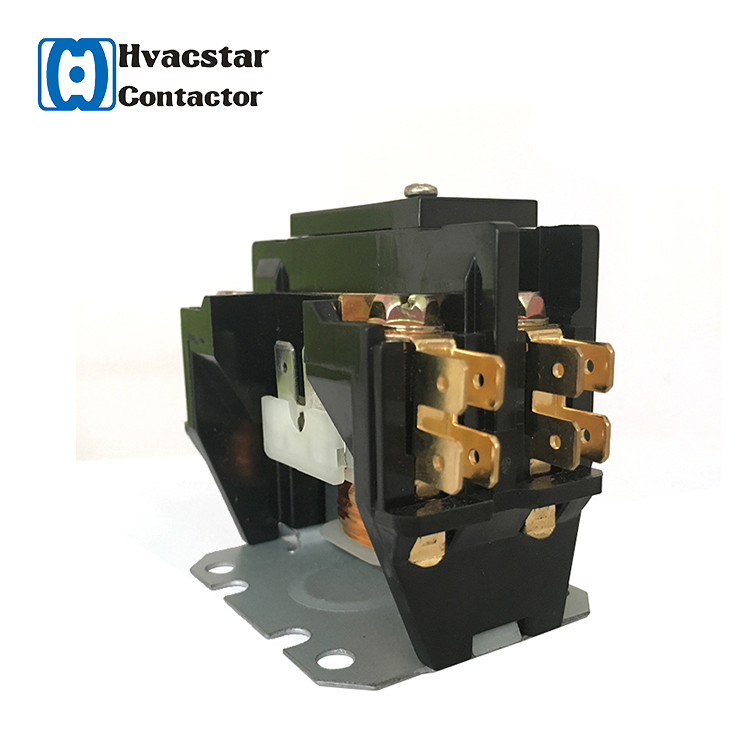

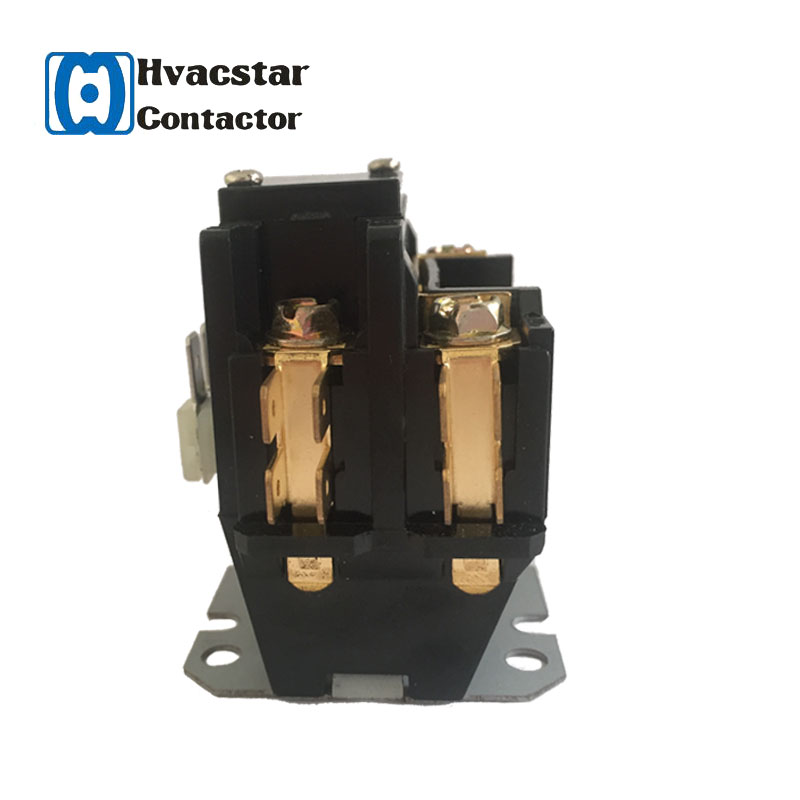

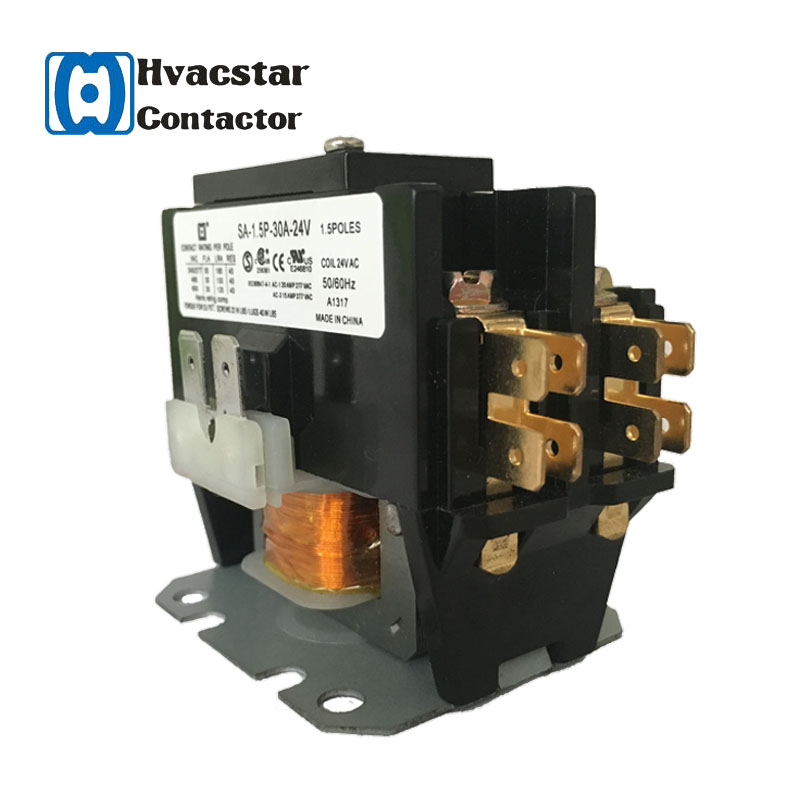

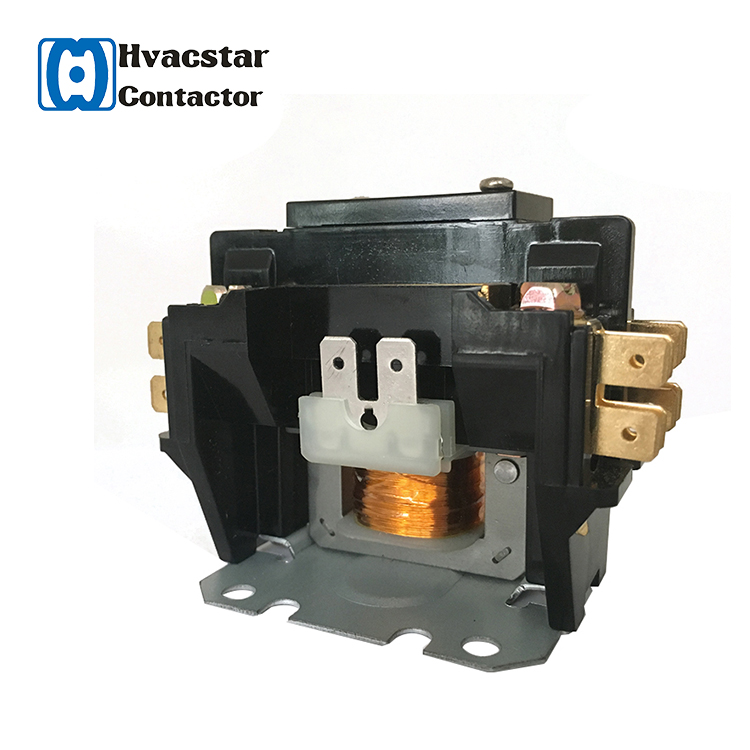

1-Phase 20A Electronic AC Contactor for HVAC

This single-phase electronic AC contactor is designed for HVAC applications. It features a magnetic mechanism for reliable switching and is rated for 20A.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

High-Performance HVAC Contactor

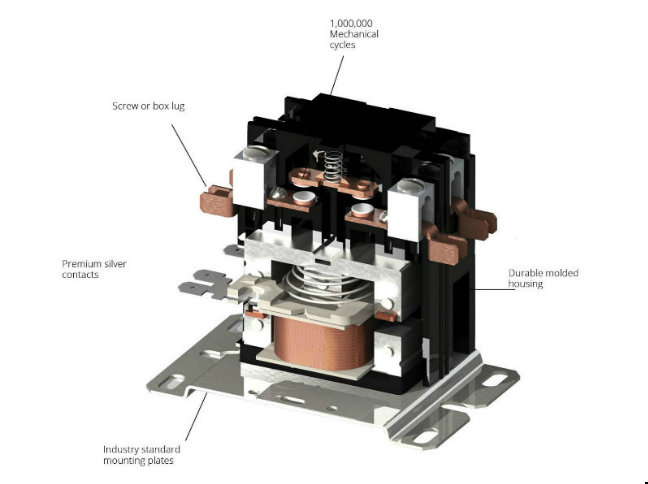

This 1-phase electronic AC contactor is engineered for reliable performance in demanding HVAC and refrigeration applications. Featuring premium silver alloy contacts and a shock-resistant actuator, it ensures long-term durability and consistent electrical switching. The unit is housed in a robust molded plastic casing and is designed for easy installation with industry-standard mounting plates.

Compact design suitable for various HVAC and refrigeration systems.

Electrical Ratings

Rated Current: 20 A
Phase: 1-Phase
Coil Voltage: 24-277V
Frequency: 50/60Hz
Compliance: IEC60947-4-1

Magnetic mechanism ensures precise switching control.

Mechanical Specifications

Mechanical Life

1,000,000 cycles

Cycles

Housing Material: Durable Molded Plastic
Contact Material: Premium Silver Alloy

Engineered with durable components for reliable HVAC operation.

Installation Data

Torque Requirements

Component	Torque
Screws	22 in lbs
Lugs	40 in lbs
