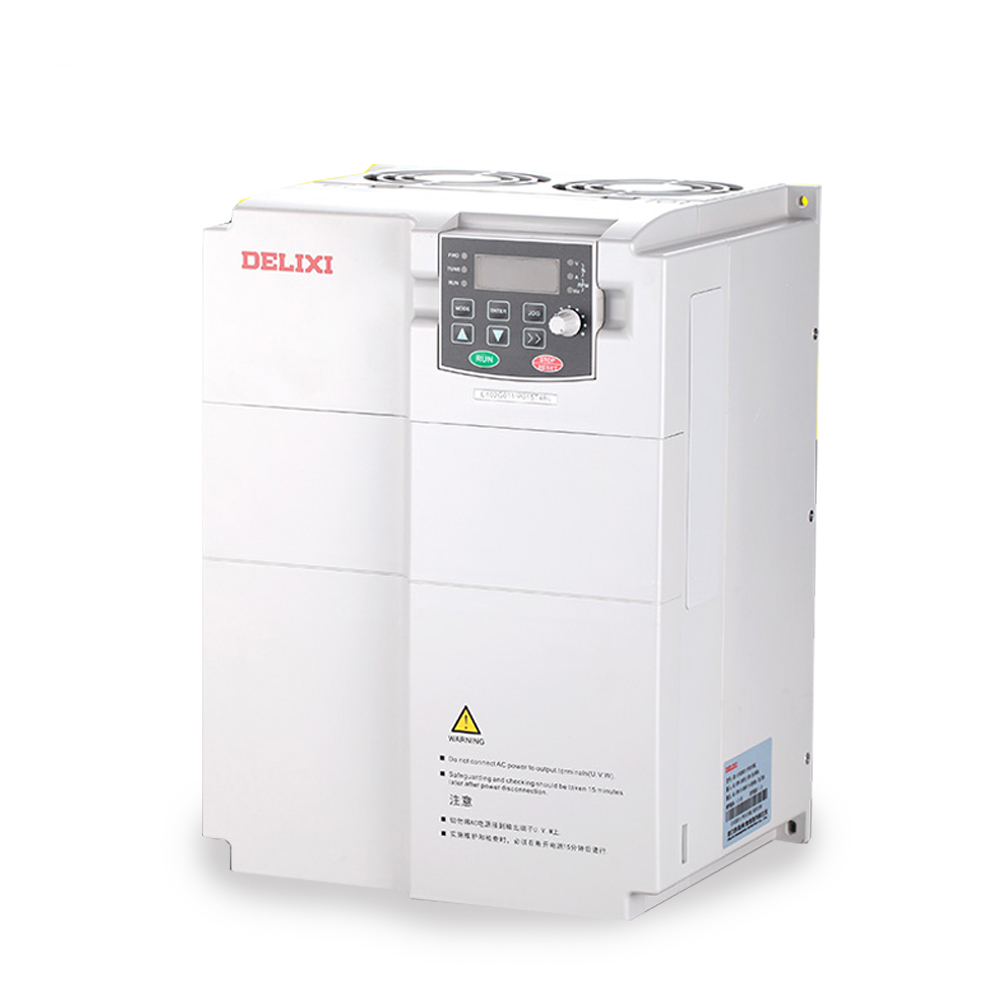

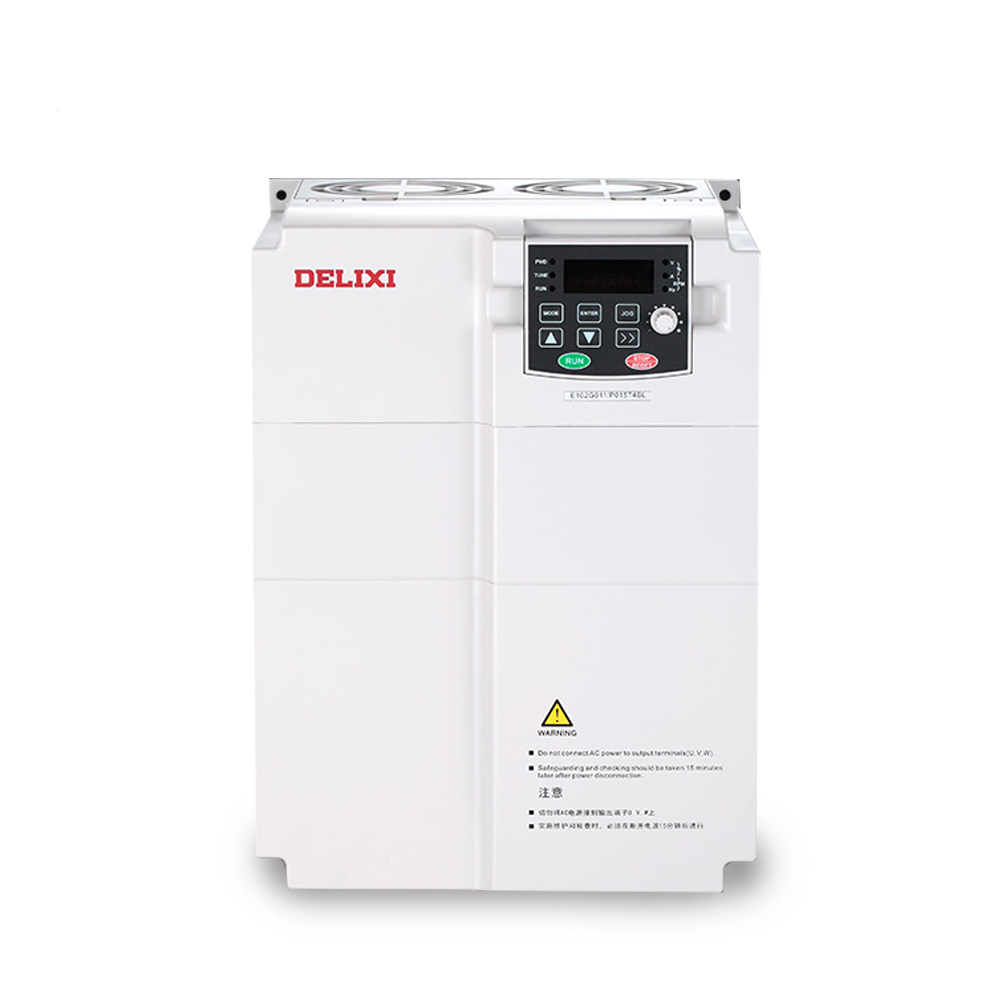

0.4-132kW Variable Frequency Drive
This variable frequency drive provides optimum SVC and V/F control. It is designed for low-power applications requiring stable performance and simplified functions.
Technical Specifications
Overview
Reliable Low-Power Frequency Inverter
The E102-series is a classic-type low-power inverter designed for stable performance using optimum SVC and V/F control. It is engineered to be highly cost-effective by focusing on the most frequently used configurations, reducing resource waste while maintaining high competitiveness. Its compact structure allows for flexible installation via slides or holes, making it an ideal choice for diverse industrial environments.
Technical Performance
Power Range
0.4 kW
Min Power
132 kW
Max Power
Voltage Classes
- Single-phase 220V (50/60Hz)
- Three-phase 220V (50/60Hz)
- Three-phase 380V (50/60Hz)
- Control Modes
- SVC (Sensorless Vector Control)V/F Control
- Output Frequency Range
- 0-3200Hz
Hardware Configuration

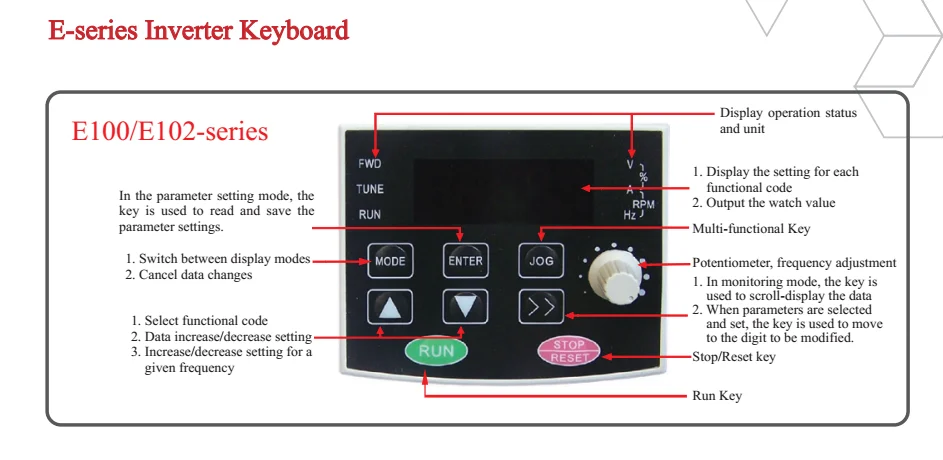

Interface & Display
- LED Keyboard (Standard)
- LCD Keyboard (Optional)
- Potentiometer for frequency adjustment
- Internal Brake Unit
- Standard for 15kW and below; optional for 18.5-22kW models
- DC Inductors
- Standard for 11kW and 15kW; optional for 18.5-22kW models
Connectivity & Expansion

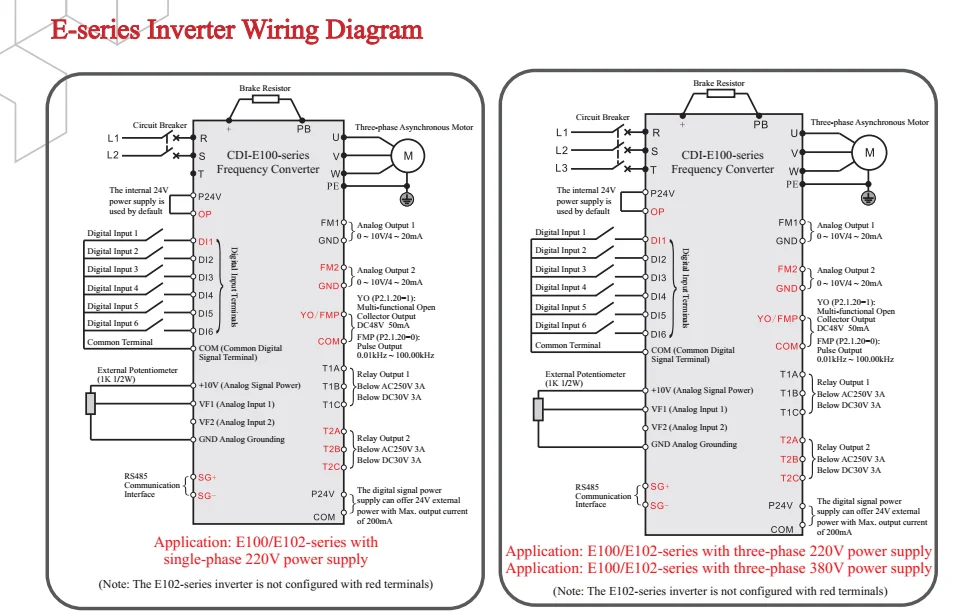

I/O Terminals
- 6 Digital Inputs (DI1-DI6)
- 2 Analog Inputs (VF1, VF2)
- 2 Analog Outputs (FM1, FM2)
- 1 Multi-functional Open Collector Output (YO)
- 2 Relay Outputs
Communication
RS485E102-485 Expansion Card
Applications
Suitable Machinery
- Die-cutting machines
- Carving machines
- Textile machinery
- Glass-making machines
- Dyeing machines
- Air blowers and water pumps
Safety & Compliance
Certifications
CE
- Safety Features
- Built-in protection functions with 15-minute discharge safety warning
