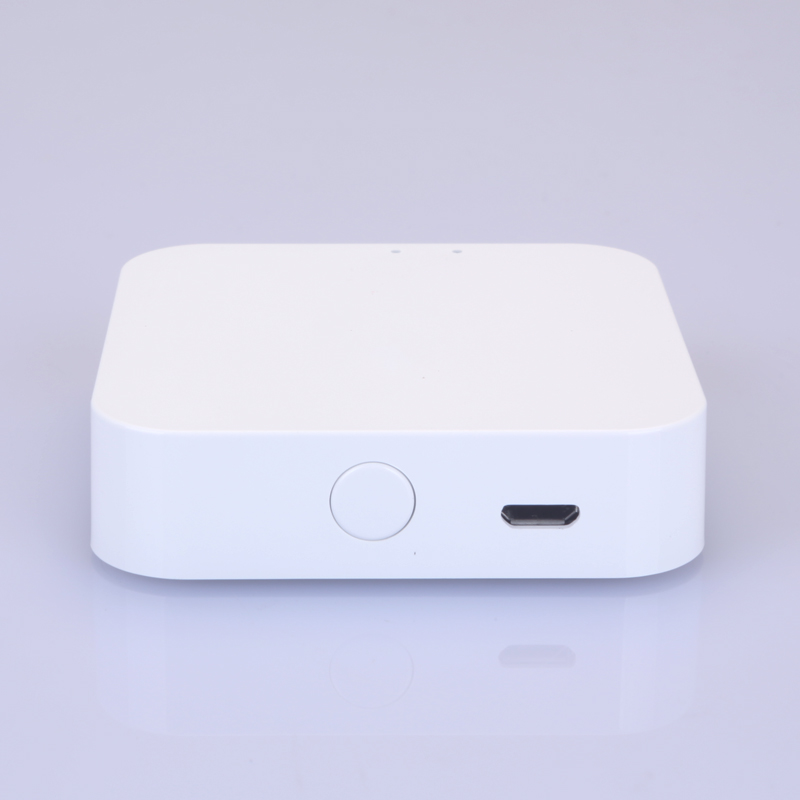

Zigbee Wireless Gateway for IoT Devices
This wireless Zigbee gateway is designed for integration with Zigbee-enabled devices. It enables communication between Zigbee devices and a central control system for smart home automation and IoT applications.
Technical Specifications
Overview
Smart IoT Connectivity
This wireless Zigbee gateway serves as the central hub for seamless device integration, facilitating communication between Zigbee-enabled hardware and your network. Designed for IoT and smart home applications, it supports robust encryption mechanisms to ensure secure connectivity. With its compact form factor and high device capacity, it is an ideal solution for efficient automation and remote monitoring systems.
Technical Specifications
- Model Number
- GL-GWZW-01
- Dimensions
- 60.5 x 60.5 x 16.1 mm
Power Requirements
- Power Supply
- Micro USB DC5V
- Operating Current
- 1 A
Connectivity & Performance
Device Connection Capacity
35 pcs
Strong Current Devices
10 pcs
Weak Current Devices
Security Features
- AES 128-bit encryption
- Wpa-psk
- Wpa2-psk
- WPA/WPA2 security mechanism
- Communication Protocols
- 802.11 b/g/n (WIFI)IEEE 802.15.4 (Zigbee)
Environmental Limits
- Operating Temperature
- -10 to 55°C
- Storage Temperature
- -10 to 55°C
