Yoga Mat Laser Engraving Machine

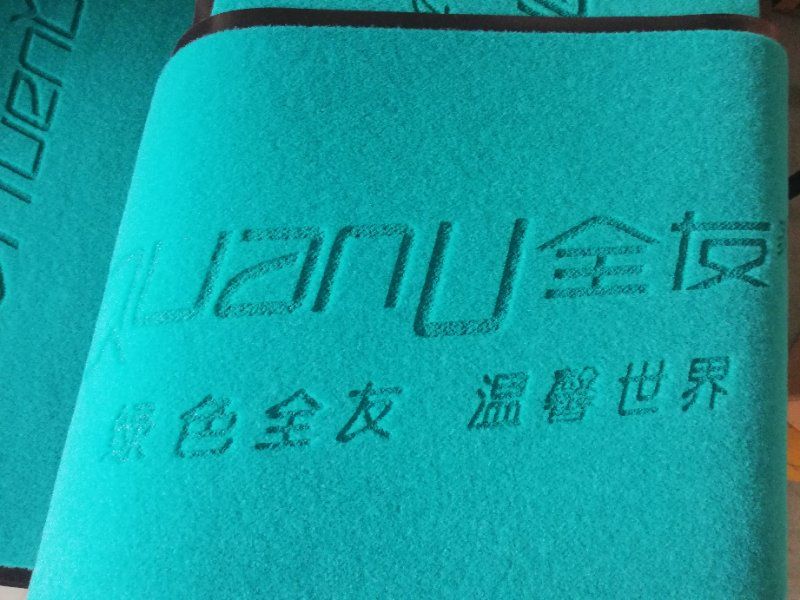

The Yoga Mat Laser Engraving Machine is engineered for high-precision marking and engraving on yoga mats. It employs advanced laser technology to create intricate designs and logos with exceptional accuracy and speed.
Technical Specifications
Product Overview
Industrial Yoga Mat Marking Solution

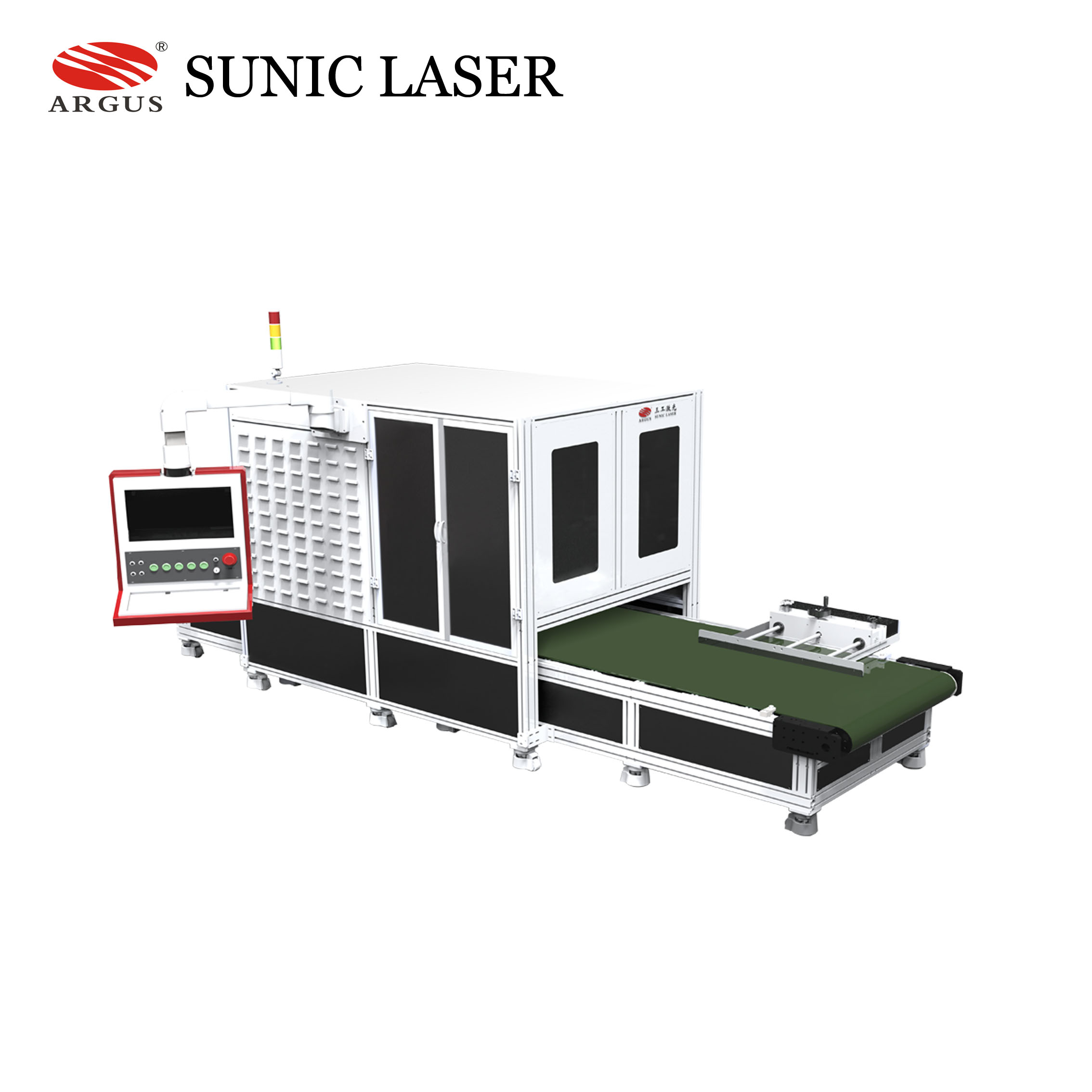

The SCM-800L is a high-precision laser marking system specifically engineered for automated, continuous production of yoga mats and other non-metal materials. It features a versatile 800mm wide working area with an unlimited length capacity, perfect for industrial-scale customization and branding. By integrating advanced Coherent metal R.F. laser tubes and CTI scanners, this machine ensures uniform energy distribution, high repeat accuracy, and long-term operational stability.
Technical Specifications
Performance Capabilities
250 W
Minimum Laser Power
7,000 mm/s
Max Working Speed
0.01 mm
Repeat Accuracy
Technical Data Table
| Parameter | Detail |
|---|---|
| Laser Wavelength | 10.6μm |
| Frequency | 1kHz~100kHz |
| Cooling Method | Water Cooling |
| Total Weight | 850kg (Host 500kg + Belt 350kg) |
Operational Features
Automation Highlights
- Automatic belt worktable system
- Synchronous Transmission System for production lines
- Continuous operation capability
- Suitable for textile, wood, and LGP materials
- Power Input
- AC380V 50Hz 7KVAAC220V 50Hz 7KVA
