Woodworking Edge Bander for Panel Boards
This woodworking edge banding machine is designed for applying edge banding to various types of wood panels. It is equipped with multiple processing stations for pre-milling, edge gluing, end trimming, fine trimming, and corner rounding.
Technical Specifications
Machine Overview
Industrial Edge Banding Solution

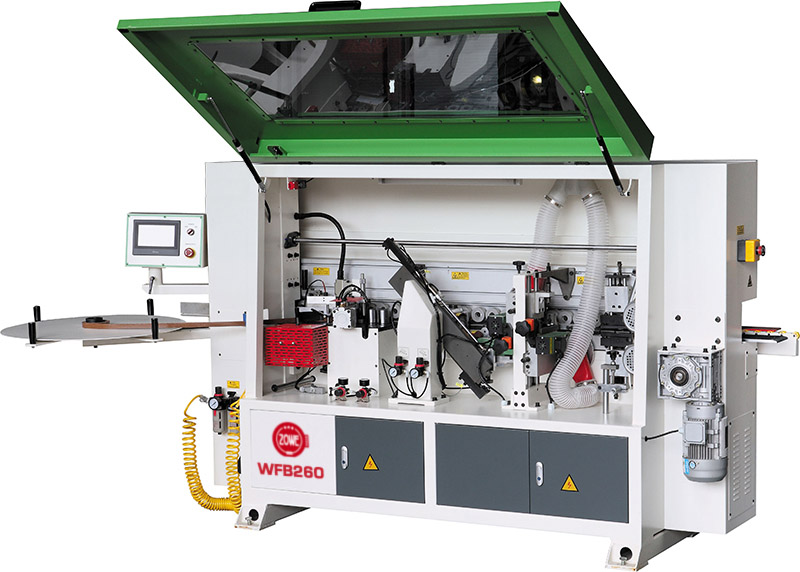

The WFB260 is a robust woodworking edge bander engineered for high-volume production environments. Designed for professional panel processing, it delivers precision gluing, trimming, and finishing to ensure smooth edge applications. With a versatile range of panel and tape capacities, it serves as an essential machine for efficient woodworking factories.
- Processing Stations
- Pre-millingGluingEnd TrimmingFine TrimmingCorner RoundingFlat ScrapingBuffing
Operational Metrics
Key Performance Metrics
14 m/m
Feed Speed
8.03 kw
Total Power
0.6 Mpa
Working Pressure
Technical Specifications
Processing Capacity
| Parameter | Value |
|---|---|
| Panel Thickness | 10-50 mm |
| Edge Tape Width | 15-60 mm |
| Edge Tape Thickness | 0.4-3 mm |
| Min Panel Width | 60 mm |
| Min Panel Length | 150 mm |
Dimensions and Weight
- Dimensions: 3100 x 830 x 1500 mm
- Weight: 950 kg
