Wood Surface Sanding Machine
This sanding machine is designed for sanding and calibrating wood surfaces. It features a robust construction and advanced control system for precise material processing.
Technical Specifications
Overview
Industrial Sanding Solutions

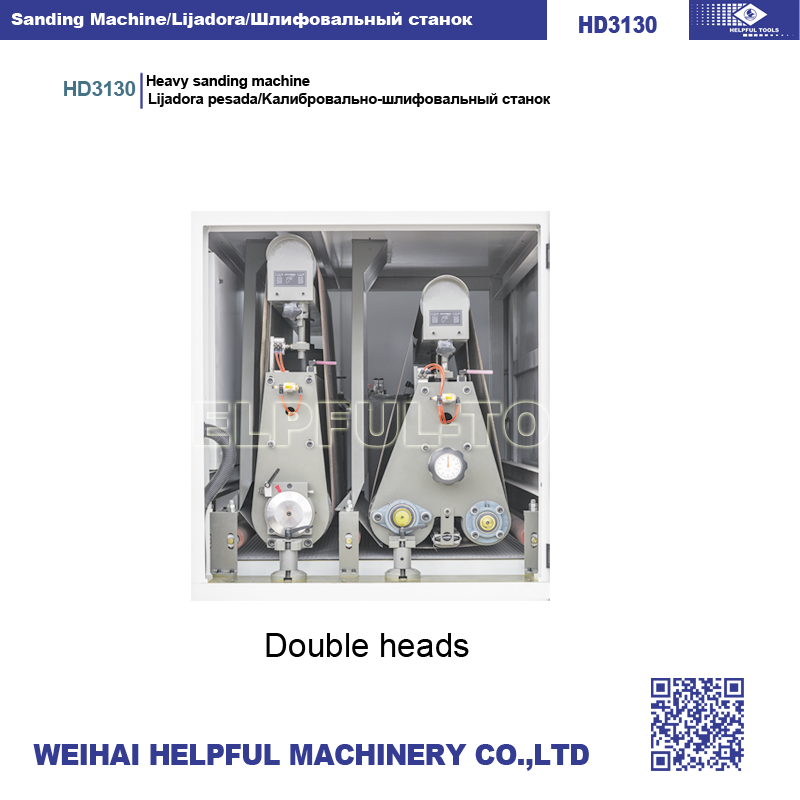

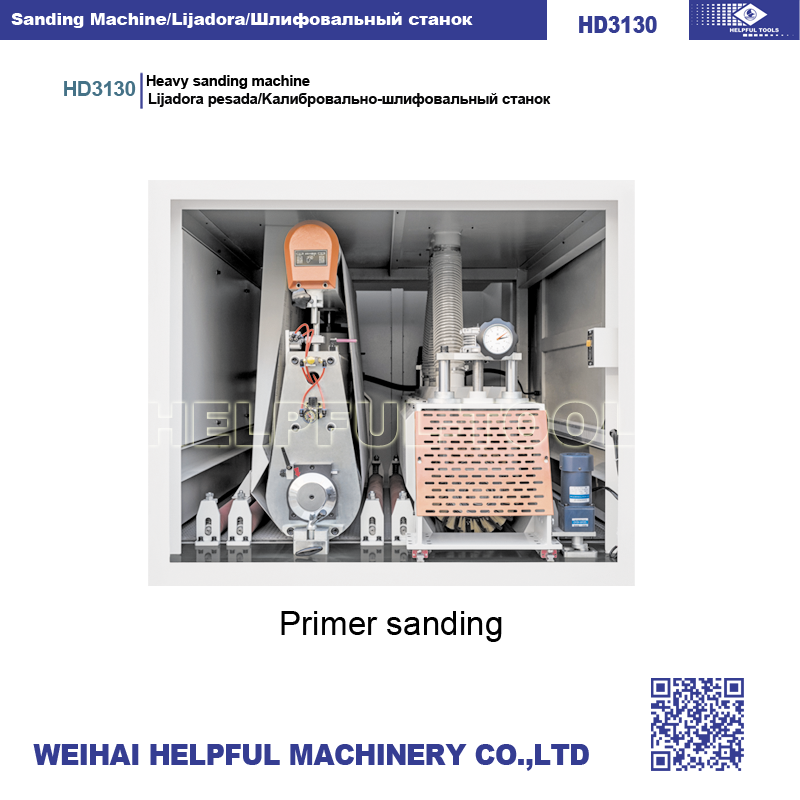

This heavy-duty sanding machine series is engineered for the precise calibration and surface finishing of wood products. Designed for high-volume industrial environments, the equipment features robust construction and advanced frequency-controlled sanding speeds to ensure consistent results across various material types. With configuration options ranging from double-head to three-head systems, it provides versatile performance for primary sanding, calibration, and primer finishing tasks.
Performance Metrics
Operating Metrics
1,300 mm
Maximum Working Width
0.5 MPa
Working Air Pressure
30 m/min
Max Feeding Speed
Technical Specifications
Standard Series Specifications
| Model | Working Width | Total Power | Weight |
|---|---|---|---|
| HD2106P | 600mm | 8.92kW | 2100kgs |
| HD2110P | 1000mm | 24.62kW | 3200kgs |
| HD2113P | 1300mm | 28.12kW | 3800kgs |
Key Operational Features
- Variable frequency control for sanding belt speed
- Integrated dust collection compatibility
- Adjustable working thickness from 2.5mm to 100mm

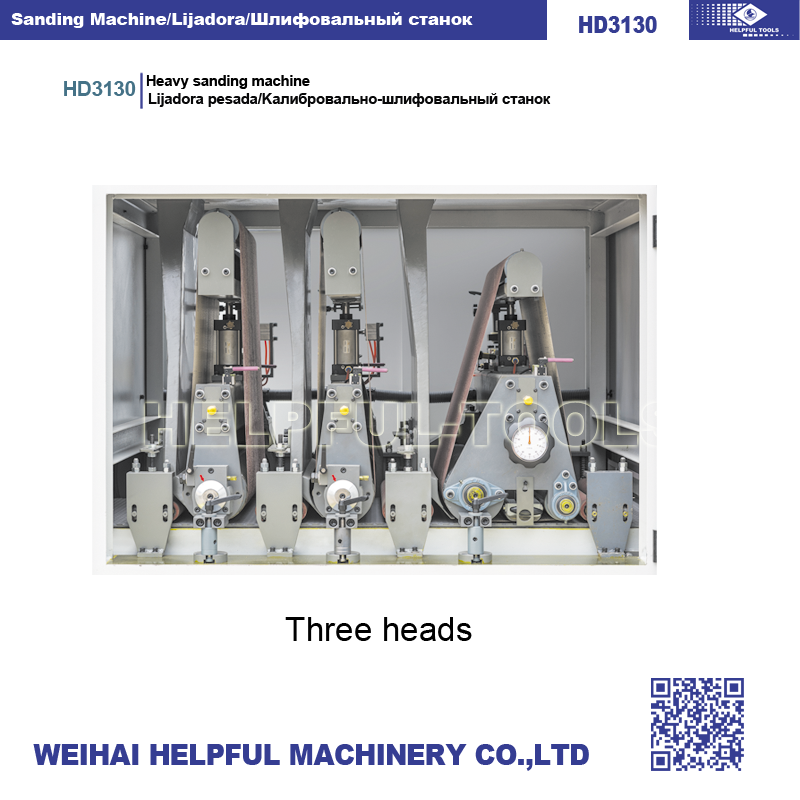

- Multi-head configurations for heavy-duty calibration
- User-friendly control interface
Compliance and Quality
Compliance Badges
Heavy-Duty Industrial GradePrecision CalibrationFrequency Controlled
