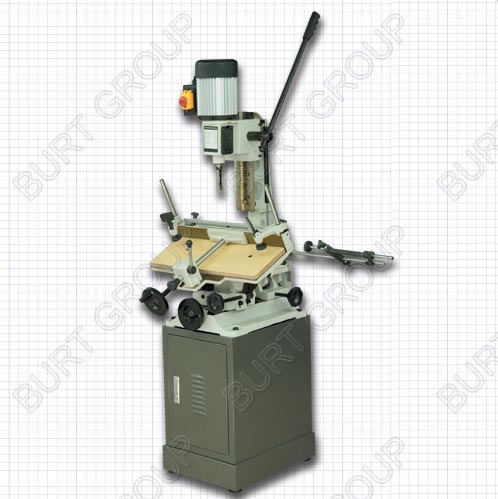

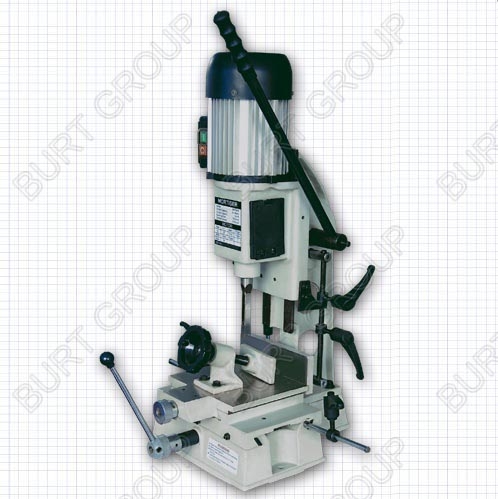

Wood Mortising Machine
This mortising machine is designed for woodworking applications, creating precise mortises for joinery. The machine features a robust construction with an adjustable work table and a mortising head powered by an electric motor.
Technical Specifications
Overview
Precision Woodworking Mortiser
This professional-grade mortising machine is engineered for high-precision joinery in woodworking applications. It features a robust construction with an improved table-moving structure for smooth, accurate performance, complemented by a digital readout for precise movement control. Designed with efficiency in mind, the unit includes a convenient integrated tools cabinet and a detachable stand to optimize workspace and shipping logistics.
Technical Specifications
- Motor Power
- 2200 W
- Motor Speed
- 2850 /min
- Voltage/Frequency Options
- 3 x 400V3 x 230V1 x 230V50Hz60Hz
Performance Metrics
Key Performance Metrics
16 mm
Max Tool Diameter
140 mm
Max Mortising Height
Table Dimensions
Table Specifications
| Dimension | Value | Unit |
|---|---|---|
| Table Size | 500 | 500 x 207 mm |
| Longitudinal Travel | 309 | mm |
| Cross Travel | 150 | mm |
Logistics & Build
- Weight (Net/Gross)
- 100 / 117 kg
- Packing Dimensions
- 1060 x 550 x 550 mm
- Units per 20ft Container
- 80
Features
Key Features
- Improved table-moving structure for smooth, precise performance
- Detachable stand for space-saving packaging
- Digital readout for precise table movement tracking
- Integrated tools cabinet for organized storage
