Well Drilling Continuous Slot Wire Wrap Screen
The continuous slot wire wrap screen is constructed by wrapping cold-rolled triangular profile wire around longitudinal rods. This screen allows water or oil to enter the well freely while preventing sand and gravel from entering.
Technical Specifications
Overview
Continuous Slot Wire Wrap Screens

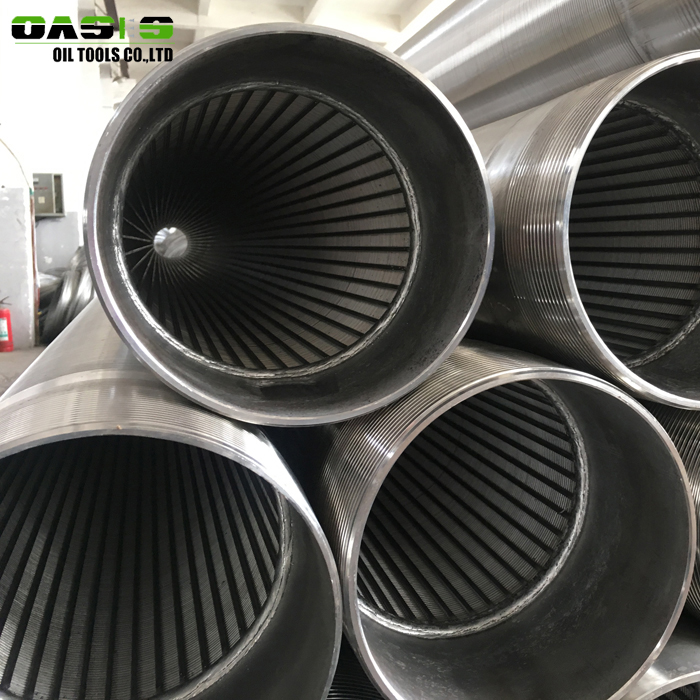

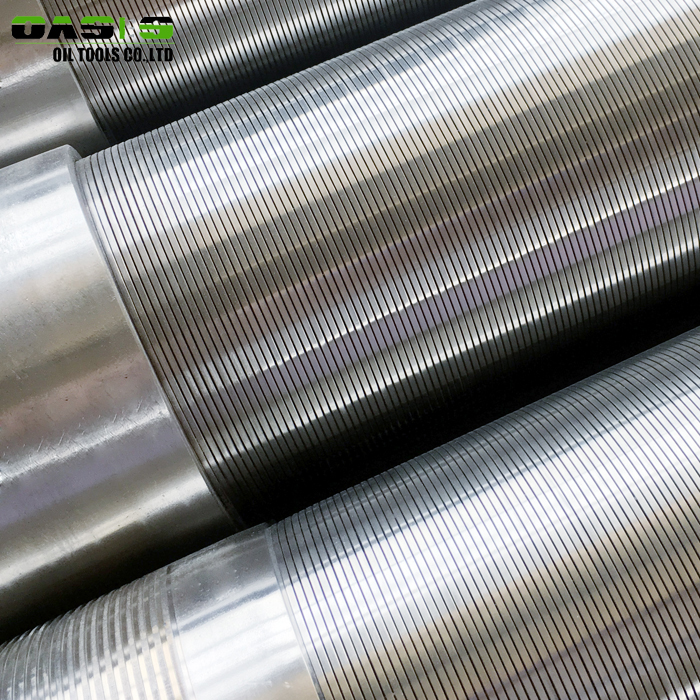

These continuous slot wire wrap screens are manufactured by wrapping cold-rolled triangular profile wire around a circular array of longitudinal support rods. Each intersecting point is fusion-welded to create a robust, high-strength structure that allows water or oil to enter freely while effectively filtering out sand and gravel. Designed for durability in harsh downhole environments, these screens offer high open area to reduce entrance velocity and maximize well capacity.
Dimensions
- Length Range
- Up to 6 meters
- Diameter Range
- 25mm to 1200mm
Technical Details
End Connections
Plain BeveledThreadedFlanged
Slot Sizes
- 0.10mm
- 0.15mm
- 0.20mm
- 0.25mm
- 0.30mm
- Up to 6.00mm
- Available Materials
- Galvanized Low Carbon SteelStainless Steel 304Stainless Steel 316
Construction Specs
Wedge Wire Specifications
| Dimension | Available Sizes (mm) |
|---|---|
| Width | 1.50, 1.80, 2.30, 3.00, 3.30, 3.70 |
| Height | 2.20, 2.50, 2.70, 3.60, 4.30, 4.70, 5.60, 6.30, 7.00 |
Support Rod Specifications
| Dimension | Available Sizes (mm) |
|---|---|
| Width | 2.30, 3.00, 3.30, 3.70 |
| Height | 2.70, 3.60, 4.70, 5.60, 6.30 |
| Round | 2.50 to 6.0 |
