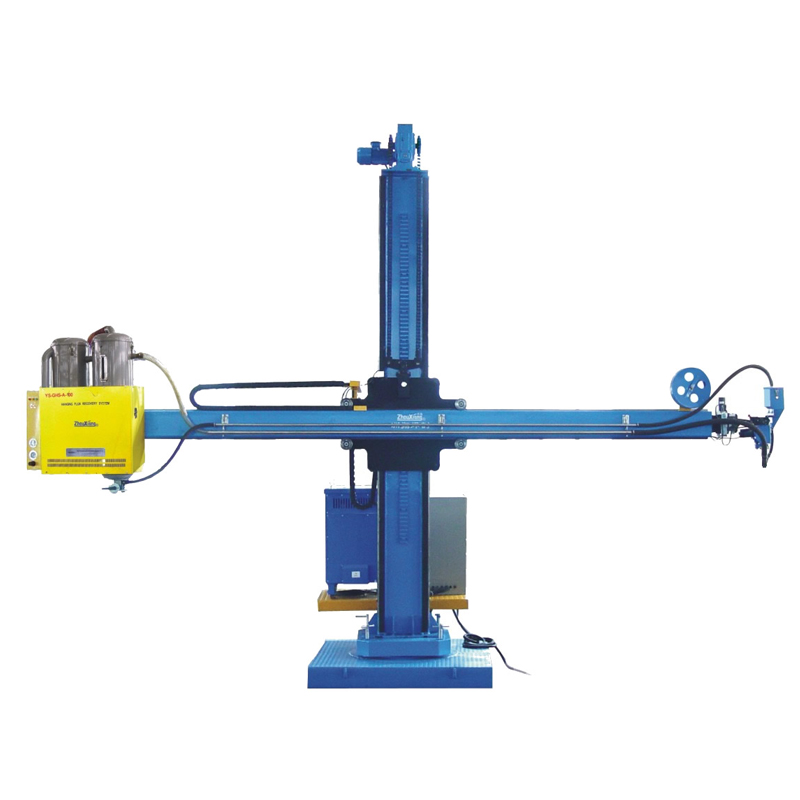

Welding Column and Boom Manipulator
The welding manipulator features a column, welding arm, rotating mechanism, and elevating mechanism. It is designed to meet multi-directional welding needs, with worm gear transmission and a converter for stable speed changes.
Technical Specifications
Overview
Precision Welding Performance
The LCH series welding manipulator offers a versatile solution for multi-directional welding requirements in industrial fabrication. Engineered with a stable worm gear elevating system and precise speed control via converters, it ensures consistent welding quality. The integrated remote control system facilitates efficient operation, supporting advanced automation when linked with submerged arc welding and rotators.
Performance Metrics
Key Performance Metrics
6,000 mm
Vertical Elevating Stroke
6,000 mm
Horizontal Expansion Stroke
1.2 m/min
Max Boom Expansion Speed
Technical Specifications
Mechanical Parameters
| Feature | Specification |
|---|---|
| Suitable Cylinder Diameter | 1000 - 6000 mm |
| Base Rotating Angle | ±1800° |
| Boom Elevating Speed | 1 m/min |
| Trolley Track Center Distance | 1780 mm |
| Trolley Forward/Backward Speed | 1.5 m/min |
- Compatible Power Sources
- MZ-1250ZKR-500
Control & Compatibility
Control System Features
- Integrated remote control operation box
- Speed potentiometer for cross arm
- Full welding parameter adjustment (current/voltage)
- Trinity control mode support
- Compatible with submerged arc welding and rotators
