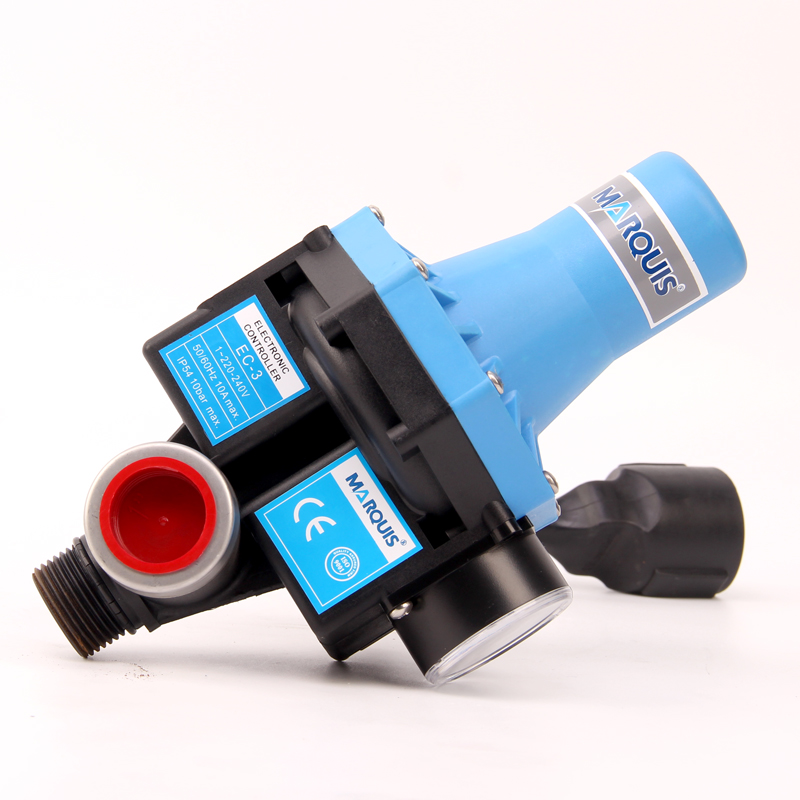

Water Pump Electronic Controller

This electronic controller is designed for water pump systems. It automates the pump's operation, maintaining consistent water pressure and preventing damage.

Request a Quote Download PDFPDF

Technical Specifications

Overview

Intelligent Pump Control Solution

This automatic electronic controller is designed to maintain constant water pressure in domestic water systems by managing pump operation based on demand. It features automatic start/stop functionality, integrated dry-run protection to prevent damage, and a built-in check valve to eliminate backflow. Engineered for reliability, this unit is suitable for clean water applications and offers robust protection against environmental factors.

Electrical Specifications

Voltage Range: 220V-240V / 110V-120V
Frequency: 50Hz-60Hz
Maximum Current: 10 A

Performance Metrics

Maximum Power

1.1 kW
0.75 kW

Starting Pressure

1.5 bar
2.2 bar

Maximum Working Pressure: 10 bar

Installation & Environment

Protection Grade

IP54

Thread Size: G1 (Inlet External / Outlet Internal)
Maximum Working Temperature: 60 °C

Certifications

Compliance: CEISO
