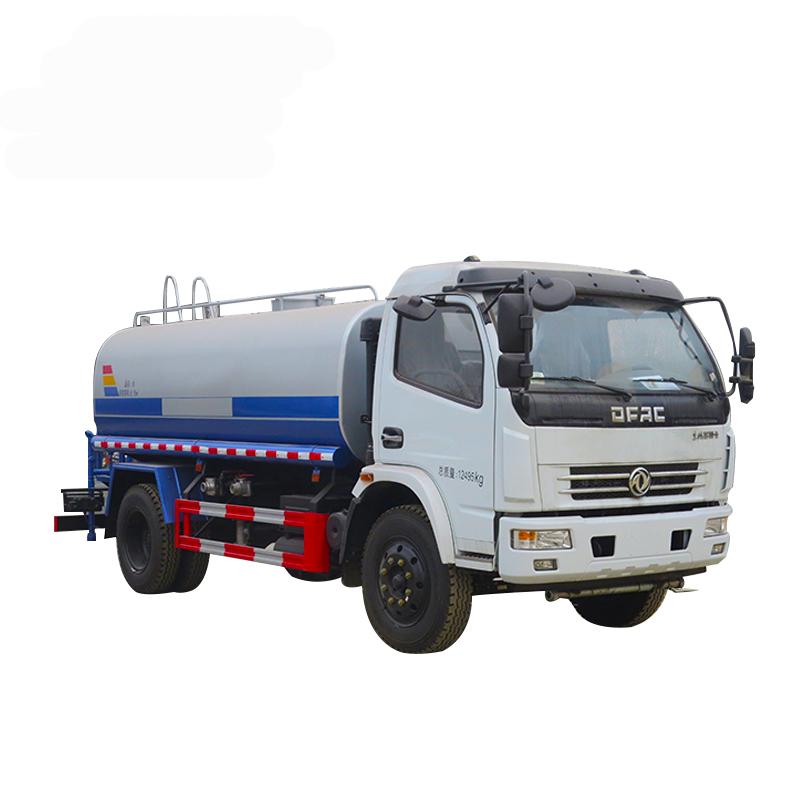

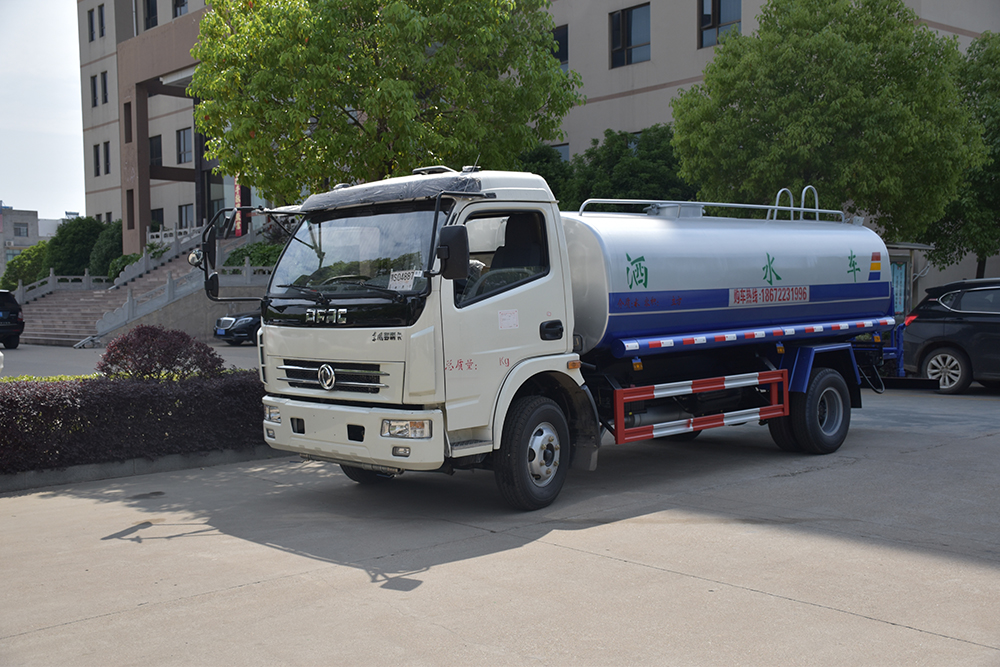

Water Distribution Truck
This water distribution truck is designed for transporting and distributing water across various sites. It is suitable for street cleaning, irrigation, and fire suppression.
Technical Specifications
Overview
Professional Water Foam Fire Truck
This high-capacity water and foam fire truck is engineered for efficient municipal and industrial fire suppression. Built on a durable chassis with a 6,000L water tank and 2,000L foam tank, it provides a comprehensive solution for emergency response. Equipped with a powerful centrifugal pump and high-range monitor, this vehicle ensures reliable performance in demanding fire-fighting environments.
Key Performance Metrics
Key Performance Metrics
6,000 L
Water Capacity
2,000 L
Foam Capacity
205 hp
Horse Power
60 L/s
Pump Flow Rate
Chassis and Engine
Engine Specifications
- Model: 4HK1-TC50
- Emission Standard: Euro5
- Displacement: 5193 ml
- Type: 4-stroke, 4-cylinders in line, water cooling
Chassis Configuration
| Parameter | Value |
|---|---|
| GVW | 18000 kg |
| Curb Weight | 9750 kg |
| Rated Load | 6600 kg |
| Wheelbase | 4700 mm |
| Steering | LHD |
| Driving Type | 4x2 |
Firefighting Equipment
Fire Suppression Systems
- Pump Model: CB10/60 centrifugal pump
- Pump Pressure: 1.0 MPa
- Suction Time: <= 35s (7m depth)
- Monitor Model: PL48
- Water Range: >= 60m
- Foam Range: >= 55m
Vehicle Dimensions
- Dimensions
- 8280x2500x3470 mmApproach Angle: 15°Departure Angle: 12°
