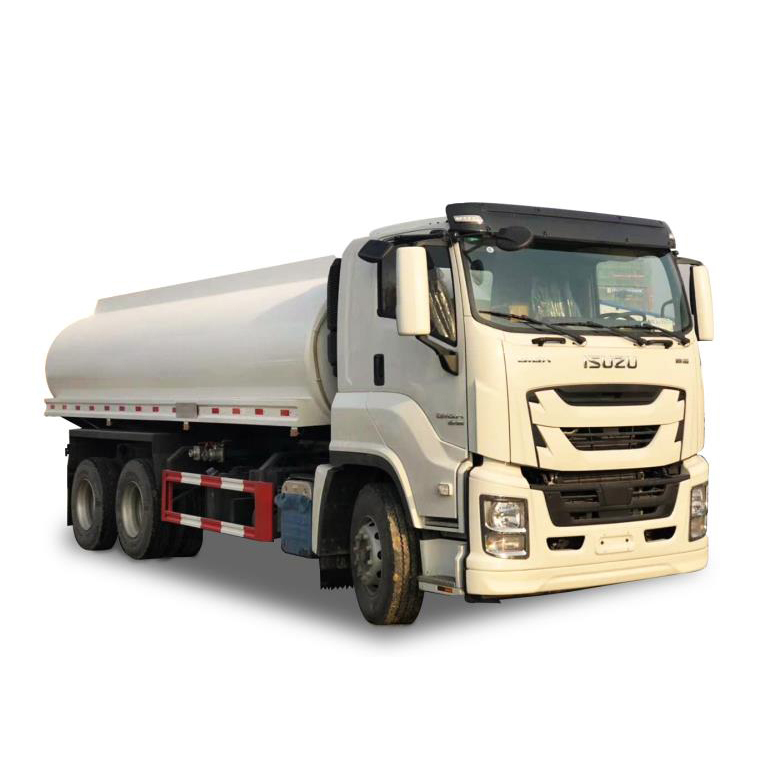

17000L Water Distribution Truck
The 17000L water distribution truck is engineered for effective water dispersal and dust suppression. Its large tank capacity and adjustable spray nozzles make it suitable for road maintenance, construction sites, and agricultural applications.
Technical Specifications
Overview
High-Capacity Water Distribution Solution
This 17000L water distribution truck is engineered for heavy-duty performance in road maintenance, construction site dust suppression, and large-scale irrigation. Built on an 8x4 drive chassis, it combines a massive tank capacity with a robust 380hp engine to ensure reliable operation across demanding terrains. The vehicle is fully equipped with advanced sprinkler systems, including front and rear sprayers and a water cannon, making it a versatile asset for professional water management.
Vehicle Dimensions & Weight
- Chassis Dimensions (LxWxH)
- 10300×2540×3300mm
- Curb Weight
- 13000 kg
- Gross Vehicle Weight (GVW)
- 31000 kg
Engine & Performance
Engine Performance
380 ps
Horsepower
9,839 ml
Displacement
6 In-line
Cylinders
- Transmission
- 8 Speed Manual (8 Forward, 2 Reverse)
Chassis & Drivetrain
- Drive Type
- 8x4
- Wheelbase
- 1850+3280+1370mm
- Tire Configuration
- 13 (including spare), 12R22.5 16PR
Tanker Specifications
- Tank Capacity
- 17000 L
- Tank Material
- Carbon Steel
- Tank Thickness
- 5mm (6mm seal head)
Equipment & Features
Sprinkler System Equipment
- Front dash spray
- Rear & side sprinkler
- Water cannon
- Gravity valve
- Fire interface
- Working platform
- Standard Features
- Power SteeringAir ConditioningTubeless TiresABSMaintenance-Free BatteryCentral LockPower WindowsDriving Data Recorder
