Technical Specifications
Overview
Reliable Diesel Transport Solution

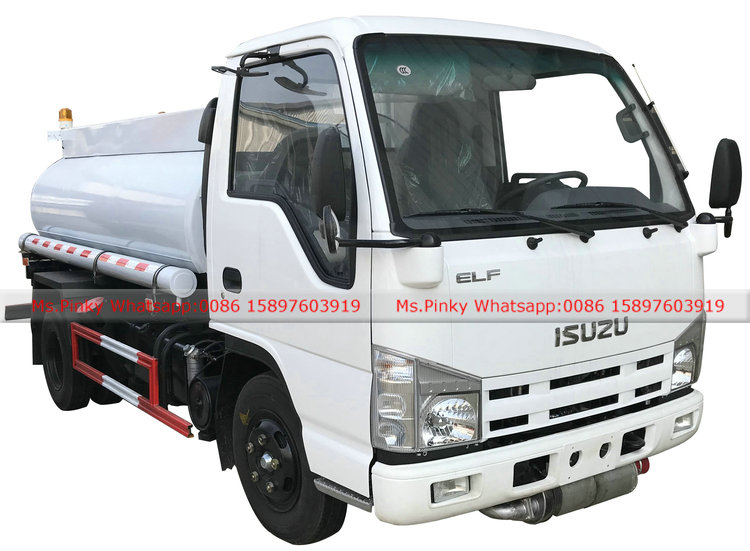

This 4000L diesel fuel tanker truck is engineered for efficient and safe fuel distribution. Built on a robust 4x2 chassis, it features a carbon steel tank body and a powerful 98HP diesel engine, making it suitable for construction sites, agricultural applications, and commercial fuel delivery. The vehicle includes essential safety features like vacuum-assisted oil brakes and a specialized pumping system to ensure reliable performance in demanding environments.
Vehicle Dimensions & Performance
Maximum Speed
120 Km/h
Max Speed
- Overall Dimensions
- 5900 x 1990 x 2300 mm
- Curb Weight
- 3931 kg
- Loading Capacity
- 3200 kg
Engine & Chassis
Engine Specifications
| Parameter | Detail |
|---|---|
| Type | Diesel, 4-cylinder in line |
| Cooling | Water cooling |
| Aspiration | Turbo-charging |
| Displacement | 2771 ML |
| Max Power | 72 KW / 98 HP |
Chassis Configuration
- Wheel base: 3360 mm
- Front axle: 2T
- Rear axle: 4.8T
- Front/Rear tread: 1385/1425 mm
- 5-speed manual gearbox
Tanker Specifications
Safety & Compliance
Euro 4 EmissionVacuum booster pumpAnti-corrosion primer
- Tank Capacity
- 4000 Litres
- Tank Features

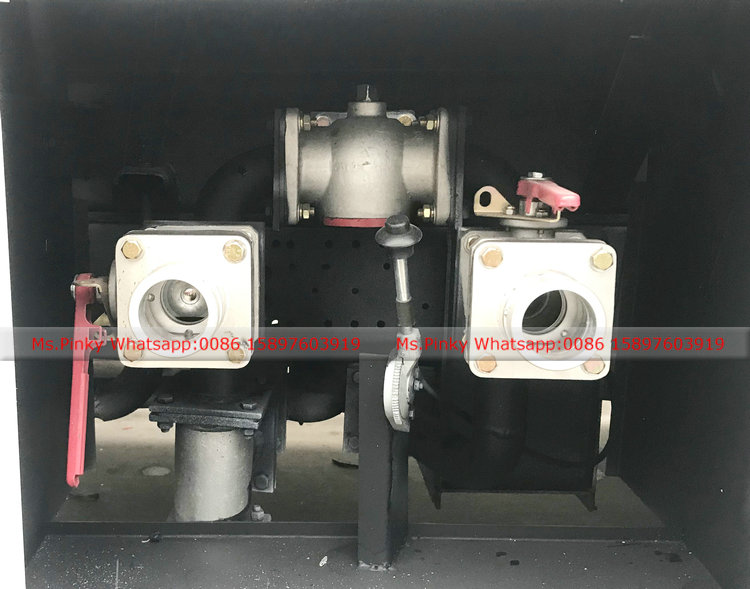

- Carbon steel materialElliptical baffles6-inch drainsTop manholeSide valve cabinet
