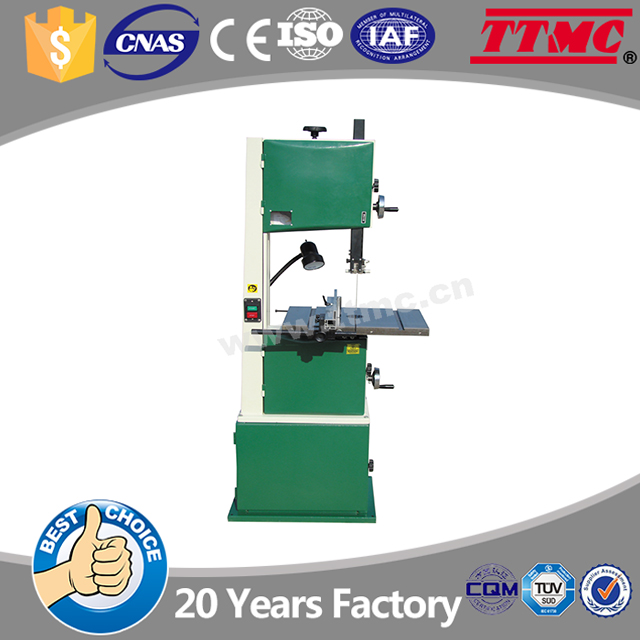

Vertical Wood Cutting Bandsaw
This vertical bandsaw is designed for cutting wood with precision. It features adjustable blade guides and a robust frame for stability and accurate cuts.
Technical Specifications
Product Overview
Precision Woodworking Performance
This vertical bandsaw offers a generous 330mm re-saw capacity, making it ideal for slicing veneers and complex lumber sizing. Designed with a heavy-duty frame and a large 406x546mm work table, it provides the stability and space required for professional woodworking tasks. Features such as quick-release blade tensioning and integrated dust collection ensure efficient operation and a clean workspace.
Cutting Capabilities
Key Cutting Metrics
330 mm
Re-saw Height
346 mm
Re-saw Width
900 m/min
Max Cutting Speed
Blade Specifications
| Attribute | Value |
|---|---|
| Width Range | 3-19 mm |
| Blade Length | 2819 mm |
| Speed Options | 2 Speeds (380/800 m/min) |
Machine Configuration
Work Table Specifications
- Dimensions: 406x546mm
- Left Tilt: 10°
- Right Tilt: 45°
- Dual T-slots: 10x19mm
- Table Height to Floor: 1005mm
Technical Specs
Power and Motor
1.1 kW
Power Output
1.5 HP
Horsepower
14 A
Current Draw (Low)
Physical Footprint
- Net Weight: 114 kg
- Total Height: 1850 mm
- Packing Size: 139x48x60 cm
Advanced Features
- Key Features
- Quick-release tensionDust port (99mm)Edge-facing bearingsHinged guide with sight windowBlade tension window
