Technical Specifications
Overview
High-Performance Automatic Reciprocating Incising Saw

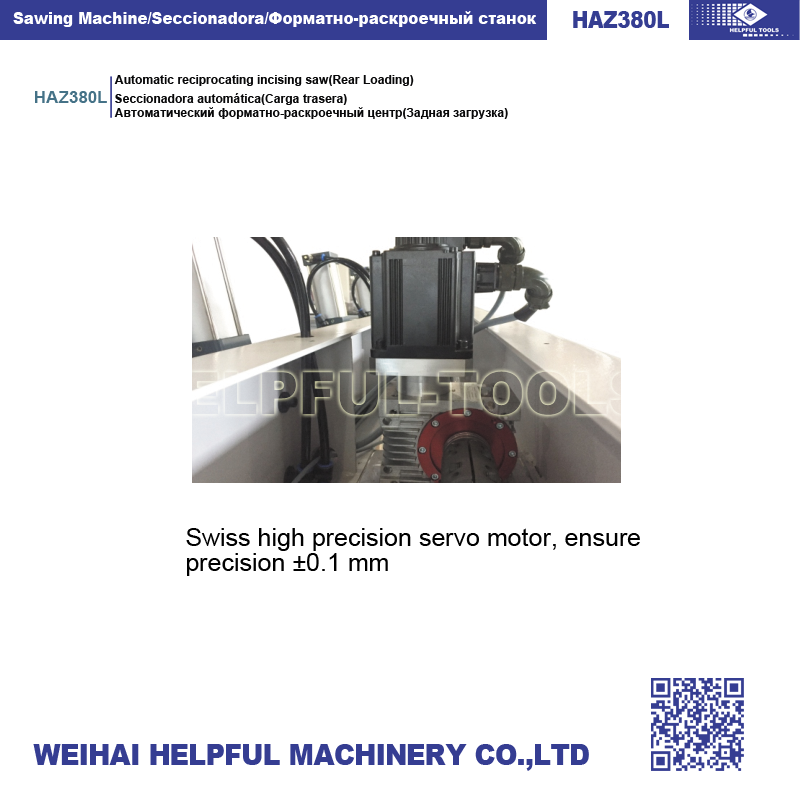

The HAZ380L is a professional-grade automatic reciprocating incising saw designed for high-volume woodworking and panel processing. Featuring a robust rear-loading system and a high-precision Swiss servo motor, it delivers exceptional cutting accuracy of ±0.1 mm. This machine streamlines industrial workflows with its integrated air-floating platform and vertical gripper system, ensuring both material protection and operational efficiency.
Performance Metrics
Key Performance Metrics
85 m/min
Cutting Speed
85 m/min
Max Pusher Speed
0.1 ±mm
Precision Tolerance
4,500 kg
Rear Table Capacity
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Max Working Size | 3800 x 4000 x 120 mm |
| Main Saw Blade | Ø450 x 60 mm |
| Scoring Saw Blade | Ø200 x 30 mm |
| Banked Up Height | 550 mm |
| Air Pressure | 0.6 Mpa |
| Minimum Gripper Size | 34 x 45 mm |
Power System
Motor Power Ratings
- Main Saw Motor: 18.5 kw
- Scoring Saw Motor: 1.5 kw
- Pusher Servo Motor: 2 kw
- Saw Carriage Servo Motor: 2 kw
- Hydraulic Motor: 2.2 kw
Advanced Features
- Operational Features

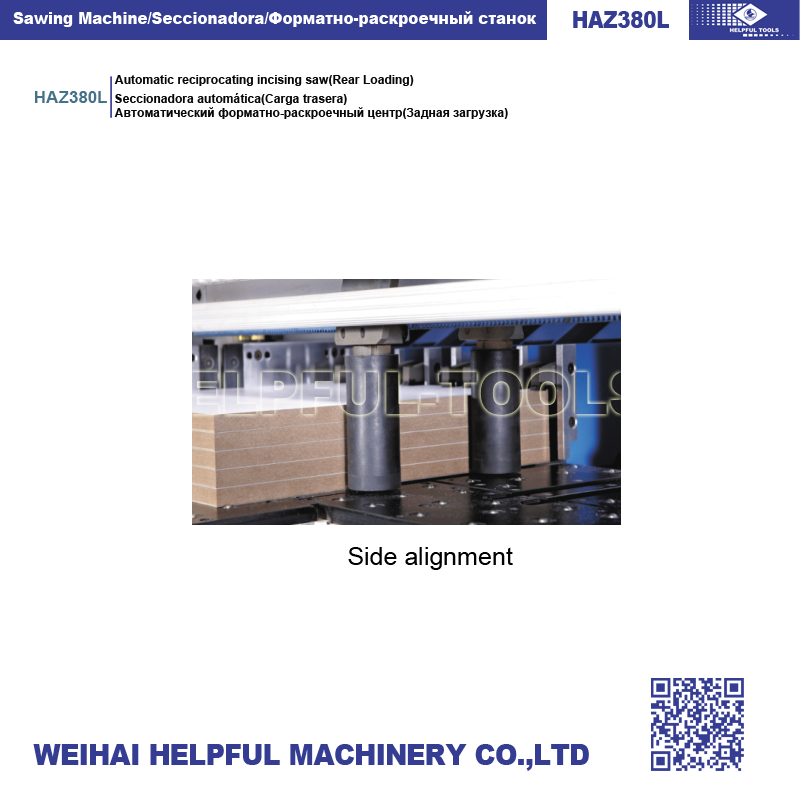

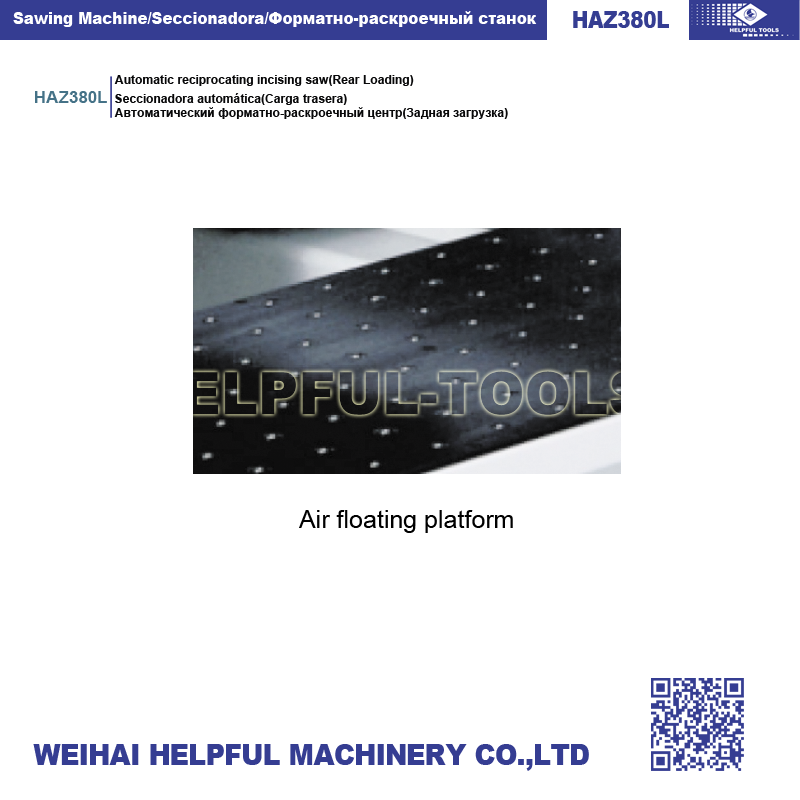

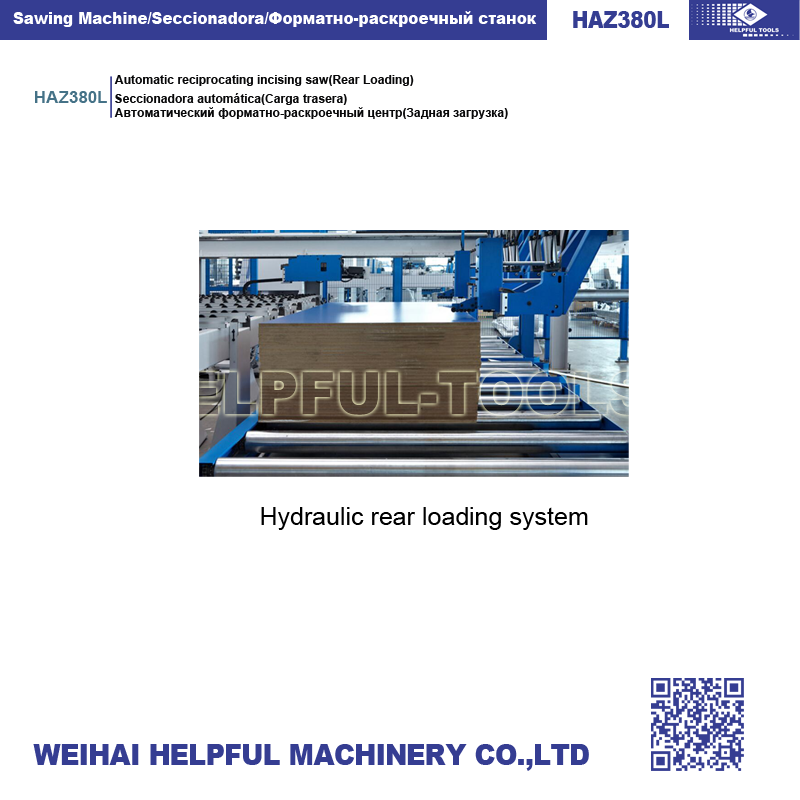

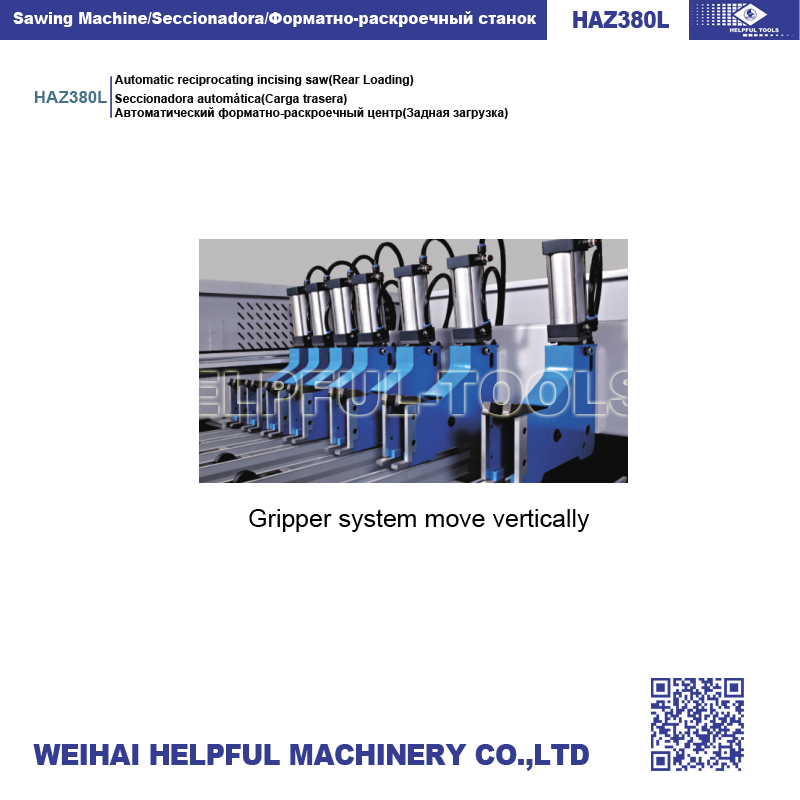

- Rear Loading SystemAir Floating PlatformSwiss Servo MotorVertical Gripper SystemSide AlignmentDust Extraction Ready

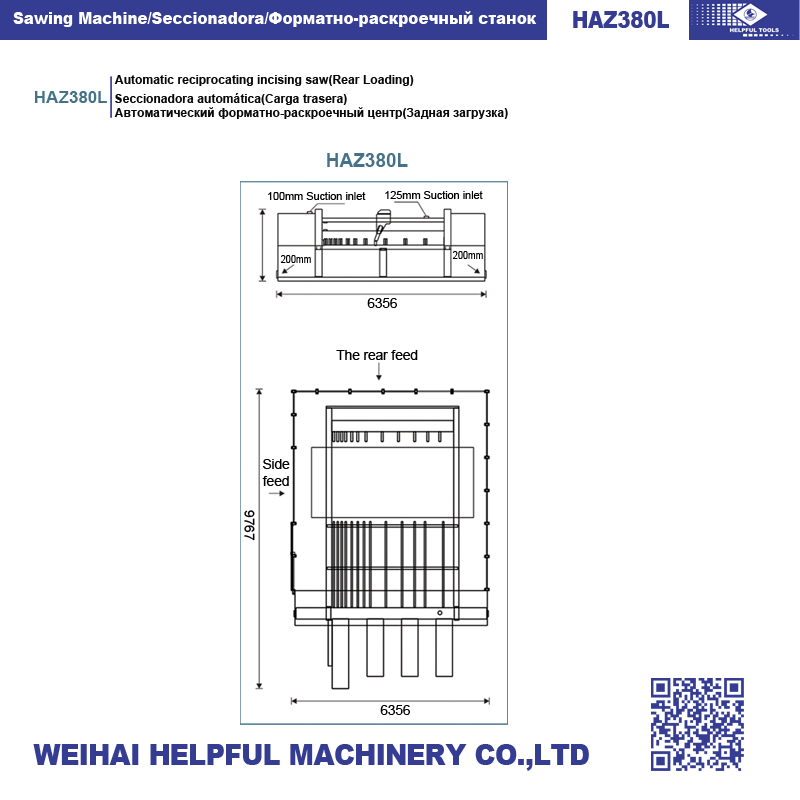

Physical Dimensions
- Outline Dimensions
- 9767 x 6356 x 1890 mm
- Total Machine Weight
- 10450 kg
Dust Extraction
Suction Inlet Diameters
100mm125mm
