Technical Specifications
Product Overview
Enhanced Safety and Visibility

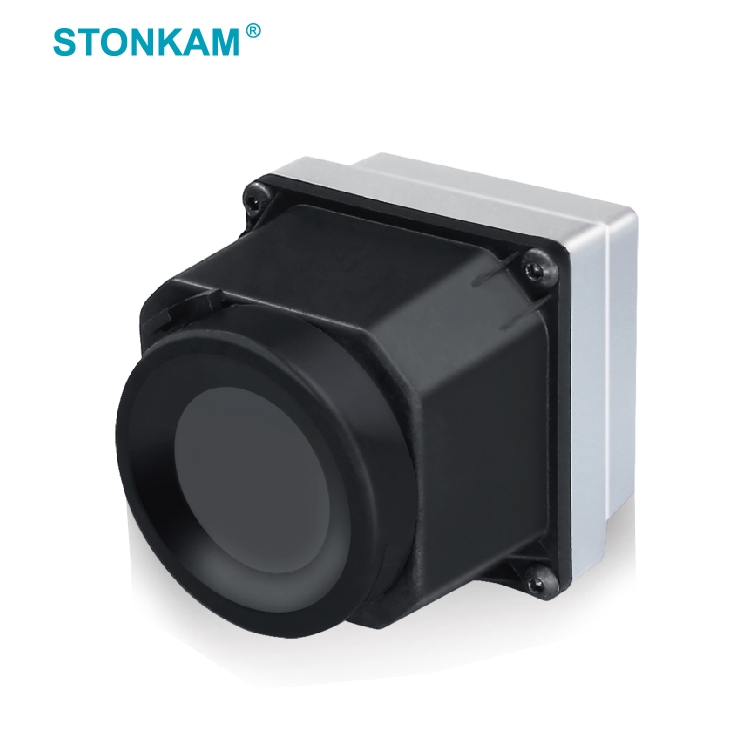

This HD vehicle infrared thermal camera utilizes passive infrared (PIR) technology to significantly improve driver safety. By providing real-time thermal imaging, it allows for the clear detection of pedestrians even in low-visibility conditions. The system is designed for high stability and reliable performance, making it an essential tool for modern vehicle integration and situational awareness.
Key Features
- Highlights
- PIR TechnologyPedestrian DetectionIP69K WaterproofLow Power ConsumptionHigh Stability
Imaging Specifications
Performance Metrics
384 px
Horizontal Resolution
288 px
Vertical Resolution
17 um
Pixel Size
13 mm
Focal Length
Technical Details
Technical Specifications
| Property | Value |
|---|---|
| Detector Type | Uncooled VOx Microbolometer |
| Spectral Band | 8~14um |
| Focusing Method | Fixed focal length |
| Field of View | 28° x 21° |
| Spatial Resolution | 1.3mrad |
Power and Environment
Power & Environment
- Power Supply: DC 12V ±10%
- Power Consumption: <500mW (correction+with heating function on <5W)
- Camera Waterproof Rating: IP69K
