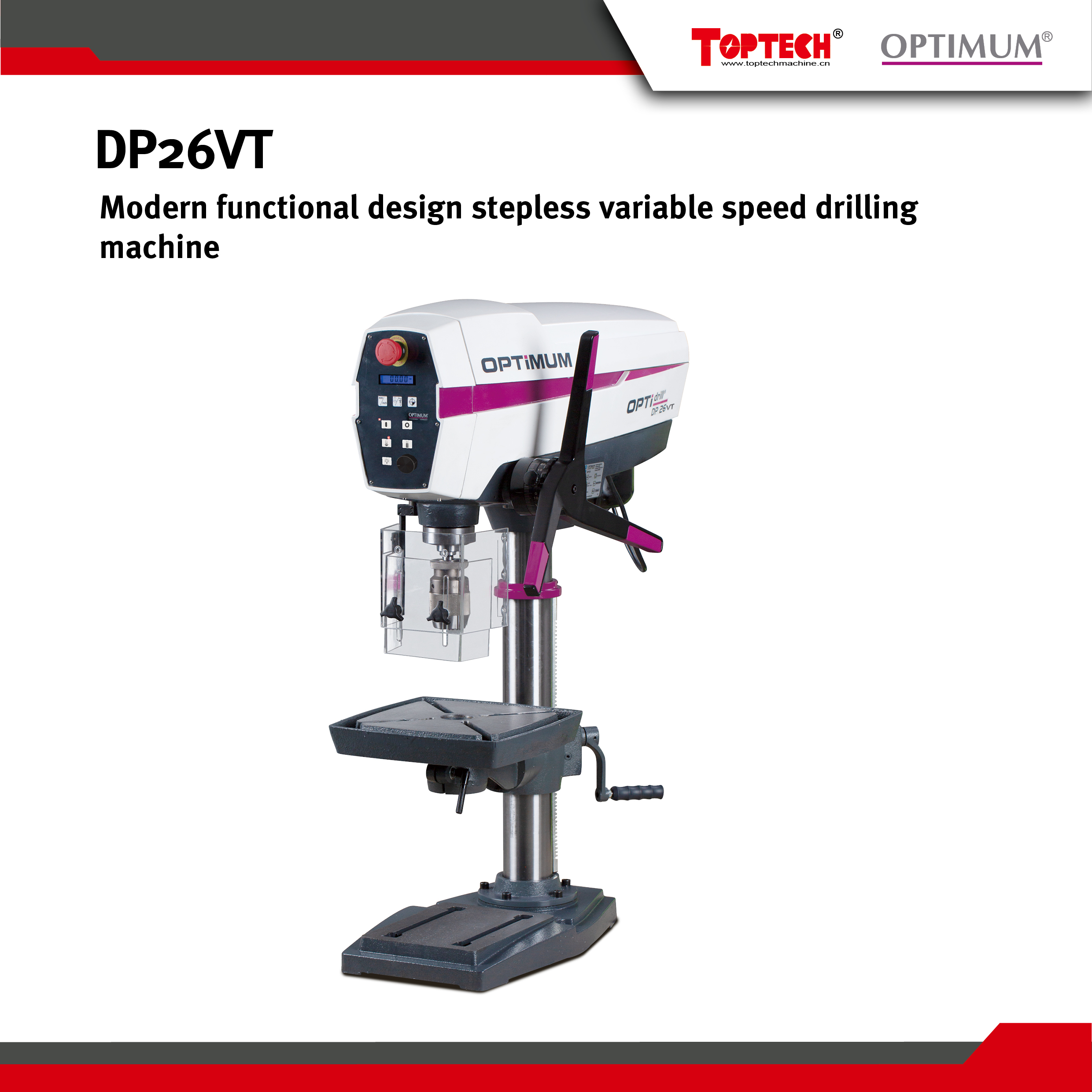

Variable Speed Benchtop Drilling Press
This benchtop drilling press offers variable speed control for optimal force transmission. It features a one-piece casting aluminum handle and a double-layer chuck cover for enhanced protection.
Technical Specifications
Overview
Professional Variable Speed Benchtop Drilling Press
This precision drilling press is designed for high-performance metalworking, featuring a stepless variable speed control for optimal results across various materials. Its robust construction, including a one-piece casting aluminum handle and a stable column design, ensures accuracy and durability in industrial environments. The machine integrates advanced safety features like a 24V low-voltage control system and a double-channel safety switch to protect professional operators.
Performance
Drilling Capacity (Steel)
25 mm
Max Drilling Ø
20 mm
Continuous Ø
Spindle Speed
60 rpm
Min Speed
3,100 rpm
Max Speed
Technical Specifications
Spindle & Sleeve
| Feature | Specification |
|---|---|
| Spindle Seat | MT3 |
| Spindle Stroke | 95 mm |
| Throat Depth | 209 mm |
| Sleeve Diameter | Ø50 mm |
| Number of Steps | 12 |
Work Area
Drilling Table & Base
| Component | Dimensions/Capacity |
|---|---|
| Table Size | 309 x 309 mm |
| Table T-slot Size | 12 mm (Diagonal) |
| Table Tilt | ±45° |
| Base Work Area | 202 x 265 mm |
| Max Distance Spindle to Base | 592 mm |
Electrical & Power
- Motor Power
- 0.75 kW
- Electrical Connection
- 230 V / 50 Hz / 1ph400 V / 50 Hz / 3ph
Safety & Control
Safety and Control Systems
- 24V low-voltage control system
- Double-channel safety switch protection
- Highly integrated PLC control
- Membrane switch board
- Double-layer chuck cover
- V-belt quick tensioning device
Monitoring
- LCD display for machine speed
- LCD display for sleeve feed travel
- Integrated LED lamp
Dimensions
- Net Weight
- 100 kg
- Overall Dimensions
- 748 x 406 x 1025 mm
- Column Diameter
- 80 mm
