Benchtop Drill Press
This benchtop drill press provides guaranteed true running accuracy of ≤ 0.02 mm measured in the drilling spindle. The drilling spindle features precision ball bearings and a high-quality quick-action drill chuck.
Technical Specifications
Overview
Professional Precision Drill Press
This benchtop drill press is engineered for high-precision metalworking, offering a guaranteed true running accuracy of ≤ 0.02 mm at the spindle. Equipped with a robust 750W motor and a 12-step speed range, it provides the versatility needed for both drilling and light milling tasks in demanding workshop environments. Its durable construction features precision ball bearings and a height-adjustable protective cover to ensure both accuracy and operator safety.
Performance Metrics
Drilling Capacity (Steel)
25 mm
Max Ø Steel
20 mm
Continuous Ø Steel
Technical Specifications
- Total Power
- 750 W
- Electrical Connection
- 400V / 3 Ph ~ 50 Hz
- Spindle Stroke
- 85 mm
- Spindle Seat
- MT 3
- Throat Depth
- 210 mm
Speed & Control
- Spindle Speed Range
- 200 - 2440 rpm
- Number of Speed Steps
- 12
Work Table & Base
- Work Surface Table
- 330 x 290 mm
- Table Slew / Rotation
- ±45° / 360°
- T-Slot Size
- 14 mm (diagonal)
- Max Distance Spindle to Table
- 720 mm
Physical Dimensions
- Column Diameter
- 80 mm
- Dimensions (L x W x H)
- 700 x 350 x 1670 mm
- Total Weight
- 82 kg
Features
Standard Features
- True running accuracy ≤ 0.02 mm
- Precision ball bearing spindle
- Quick-action drill chuck
- Height-adjustable chuck cover

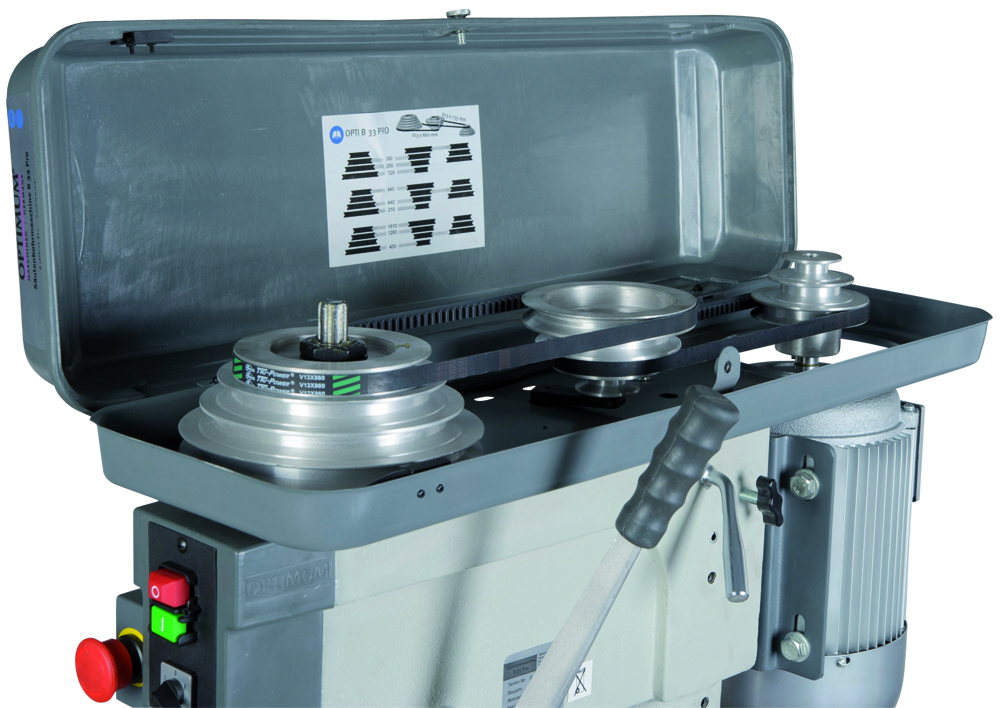

- Variable speed via belt drive
- CE Certified
Compliance
Certifications
CE
