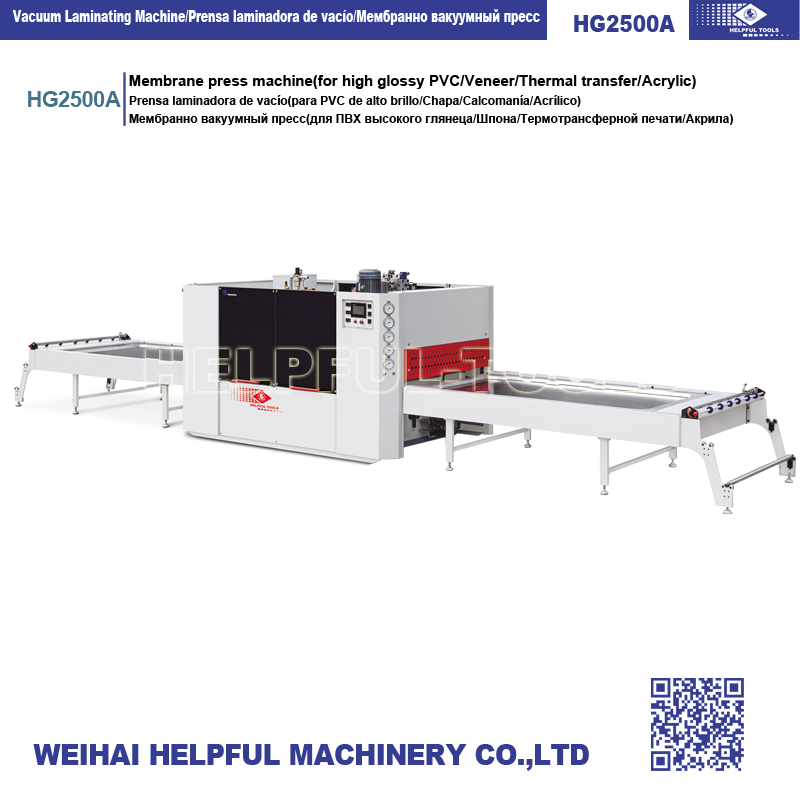

Vacuum Membrane Press for PVC, Veneer, Acrylic
This membrane press machine is designed for vacuum laminating of high glossy PVC, veneer, thermal transfer materials, and acrylic. It ensures precise processing for woodworking and produces high-quality laminated products.
Technical Specifications
Overview
High-Performance Vacuum Membrane Press
This industrial-grade vacuum membrane press is engineered for high-efficiency laminating and pressing of decorative surfaces. It is specifically designed to handle materials such as high-gloss PVC, veneer, thermal transfer films, and acrylic sheets with precision. Utilizing advanced vacuum and positive pressure technology, the machine ensures uniform bonding and a smooth, bubble-free finish, making it an ideal solution for manufacturing high-quality furniture components, cabinet doors, and decorative panels.
Technical Specifications
Performance Metrics
57.2 kW
Total Power
-0.08 MPa
Vacuum Pressure
0.4 MPa
Min Positive Pressure
0.5 MPa
Max Positive Pressure
Model Comparison
| Feature | HG2580A | HG3000A |
|---|---|---|
| Working Table Size | 2580 x 1280 mm | 3000 x 1280 mm |
| Weight | 11000 kg | 12000 kg |
| Outline Dimensions | 11600 x 2250 x 2050 mm | 11500 x 2250 x 2050 mm |
Features & Capabilities
Heating Modes
- Oil heating (Up)
- Electric heating (Down)
- Heating element (Air)
Safety & Control

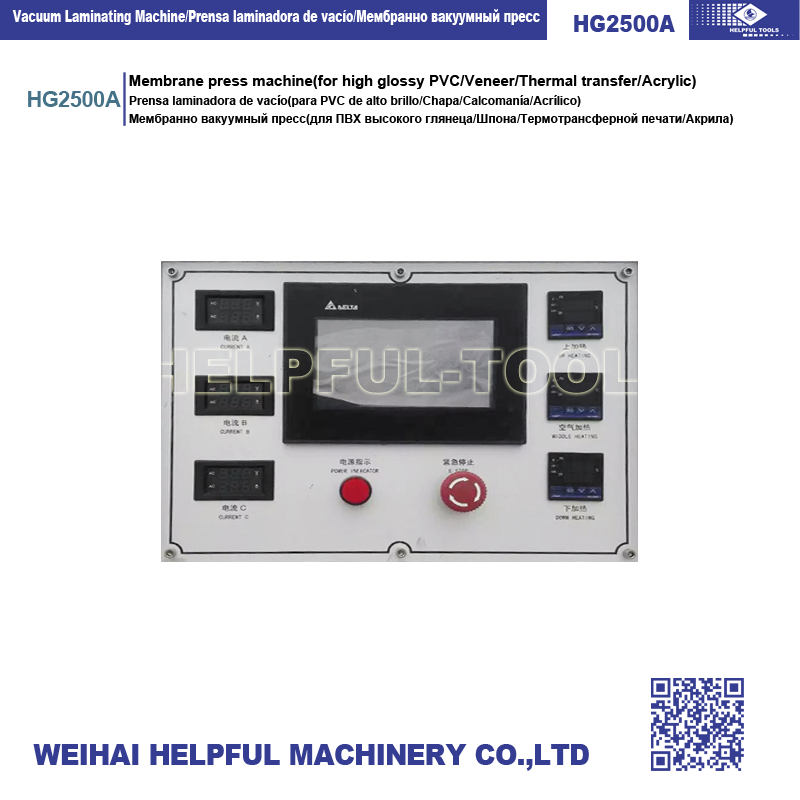

Emergency StopDigital Control PanelPhase Current Display
- Compatible Materials
- High Glossy PVCVeneerThermal Transfer FilmAcrylic
