Vacuum Cleaner Motor
This vacuum cleaner motor is designed for powerful suction and efficient operation. It features robust construction with copper windings for enhanced conductivity and long-lasting performance.
Technical Specifications
Product Overview
High-Performance Vacuum Motor

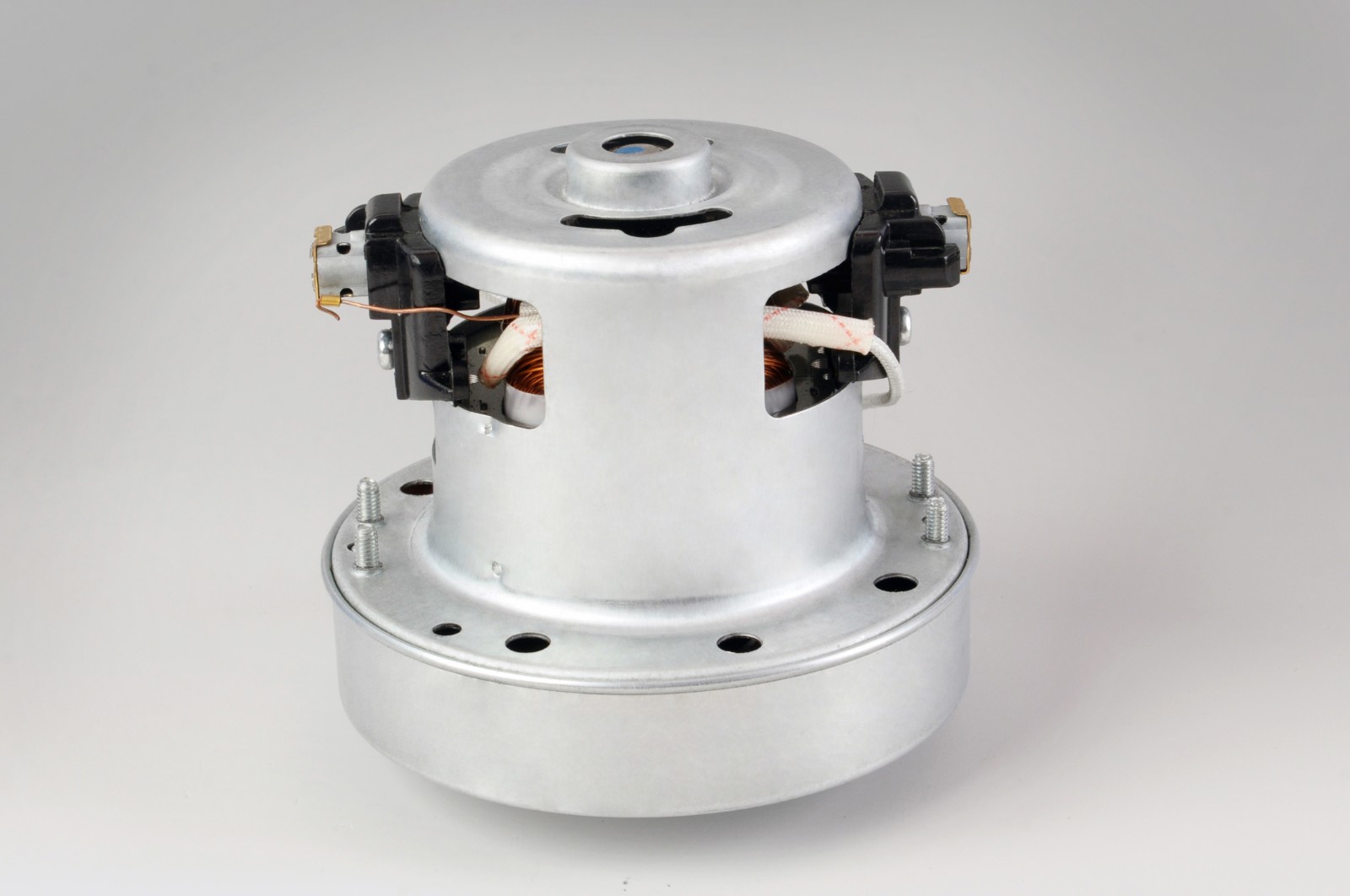

The HWX-CG46 is a specialized dry-use vacuum cleaner motor engineered for high suction efficiency and robust thermal management. Built with quality copper windings and a durable metal housing, this motor ensures reliable electrical contact and long-lasting performance. It is designed for seamless integration into various vacuum models, providing optimal cleaning power across diverse industrial or residential applications.
Electrical Specifications
- Rated Voltage
- 100-240V
- Rated Frequency
- 50 Hz
Performance Metrics
Power and Suction Performance
| Input Power (W) | Max Vacuum (Kpa) | Max Airflow (m³/min) |
|---|---|---|
| 600 | 15 | 2.2 |
| 800 | 19 | 2.4 |
| 1,000 | 20 | 2.6 |
Efficiency
47 %
Max Suction Efficiency
Operational Characteristics
- Noise Level
- <92 dB
- Spark Grade
- < 2
- Temperature Rise
- 115 K

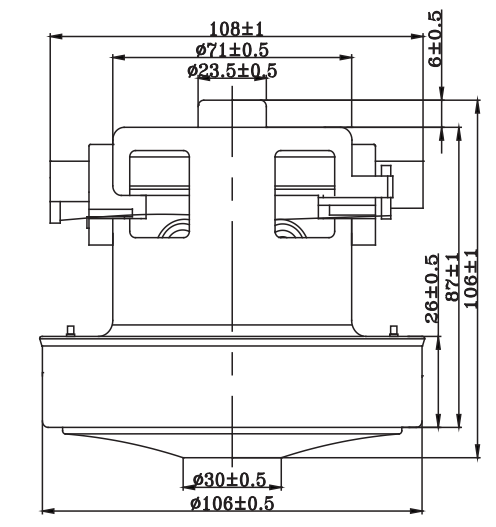

Dimensions
- Key Dimensions (mm)
- Height: 108±1Base Diameter: 106±0.5Middle Diameter: 71±0.5Top Diameter: 23.5±0.5
