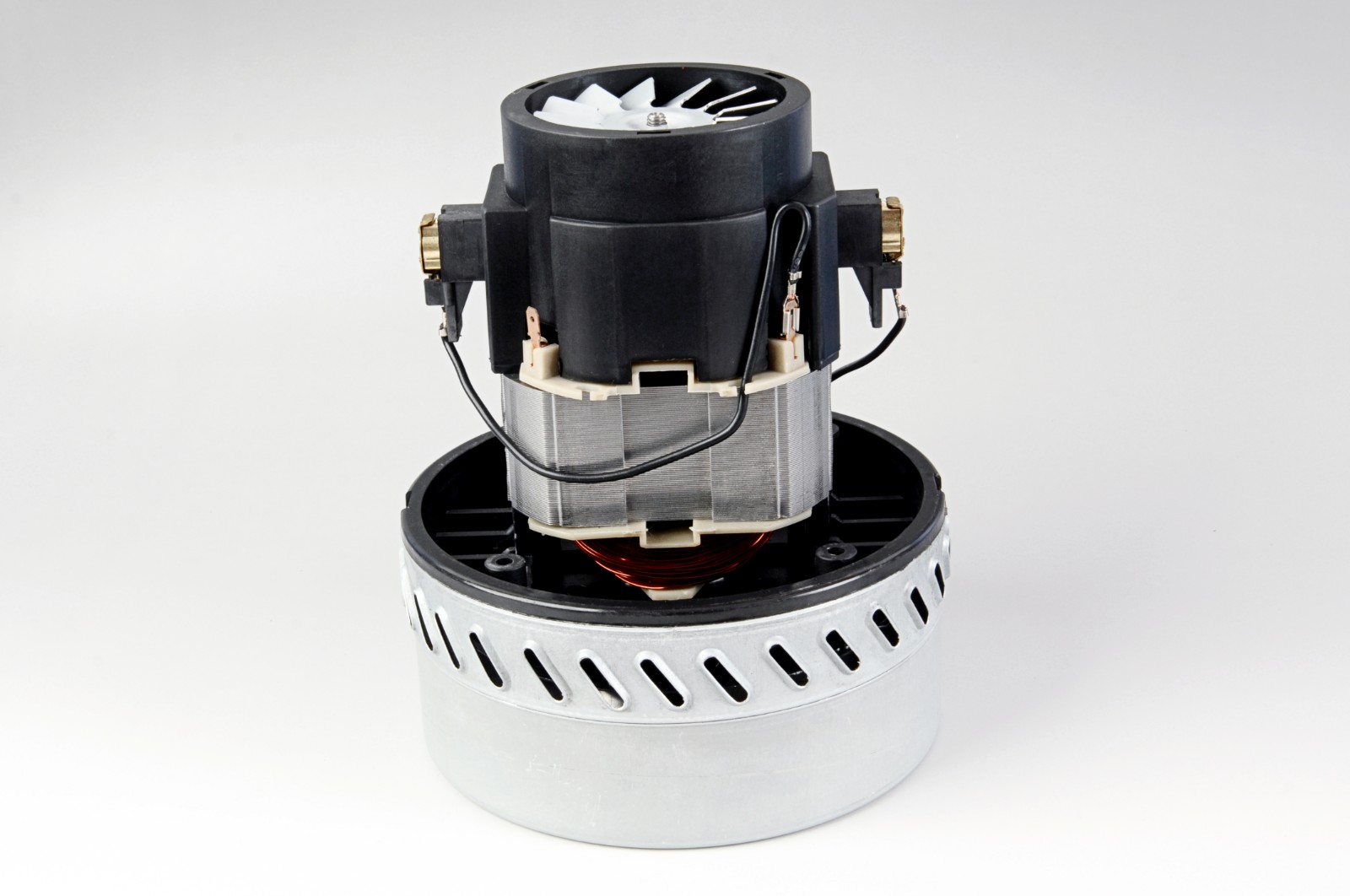

Vacuum Cleaner Motor HWX-CG25
This is a double fan motor designed for both wet and dry vacuum cleaners. It is engineered for a large air flow and long operational life.
Technical Specifications
Overview
High-Performance Vacuum Cleaner Motor
The HWX-CG25 is a professional-grade wet and dry vacuum motor engineered for efficiency and durability. Designed with an optimized winding configuration and high-performance cooling systems, this motor delivers exceptional suction power for demanding household and commercial cleaning environments. Its versatile design ensures seamless integration and reliable, consistent operation under heavy-duty conditions.
Technical Specifications
Performance Ratings
1,400 W
Max Input Power
26 Kpa
Max Vacuum Degree
3.2 m³/min
Max Air Flow

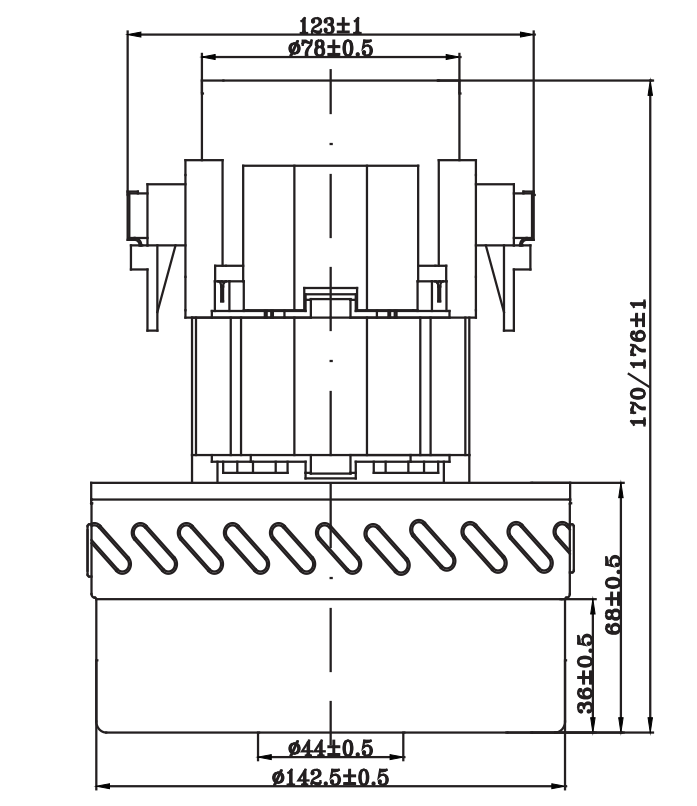

Dimensions & Mechanical Data
| Parameter | Value |
|---|---|
| Motor Height | 167/170/176 mm |
| Outer Diameter | 142.5±0.5 mm |
| Inner Diameter | 44±0.5 mm |
| Upper Section Diameter | 78±0.5 mm |
Electrical & Operational Data
Operational Thresholds
- Noise Level: <92 dB
- Spark Level: <2
- Temperature Rise: <115 K
- Max Suction Efficiency: 35%
- Voltage & Frequency
- 100-240V / 50-60Hz
General Features
- Application Compatibility
- Wet UseDry UseCommercialResidential
