Vacuum Cleaner Motor 1800-2000W
This vacuum cleaner motor offers a large power output between 1800-2000W. It is designed for efficient and reliable operation.
Technical Specifications
Product Overview

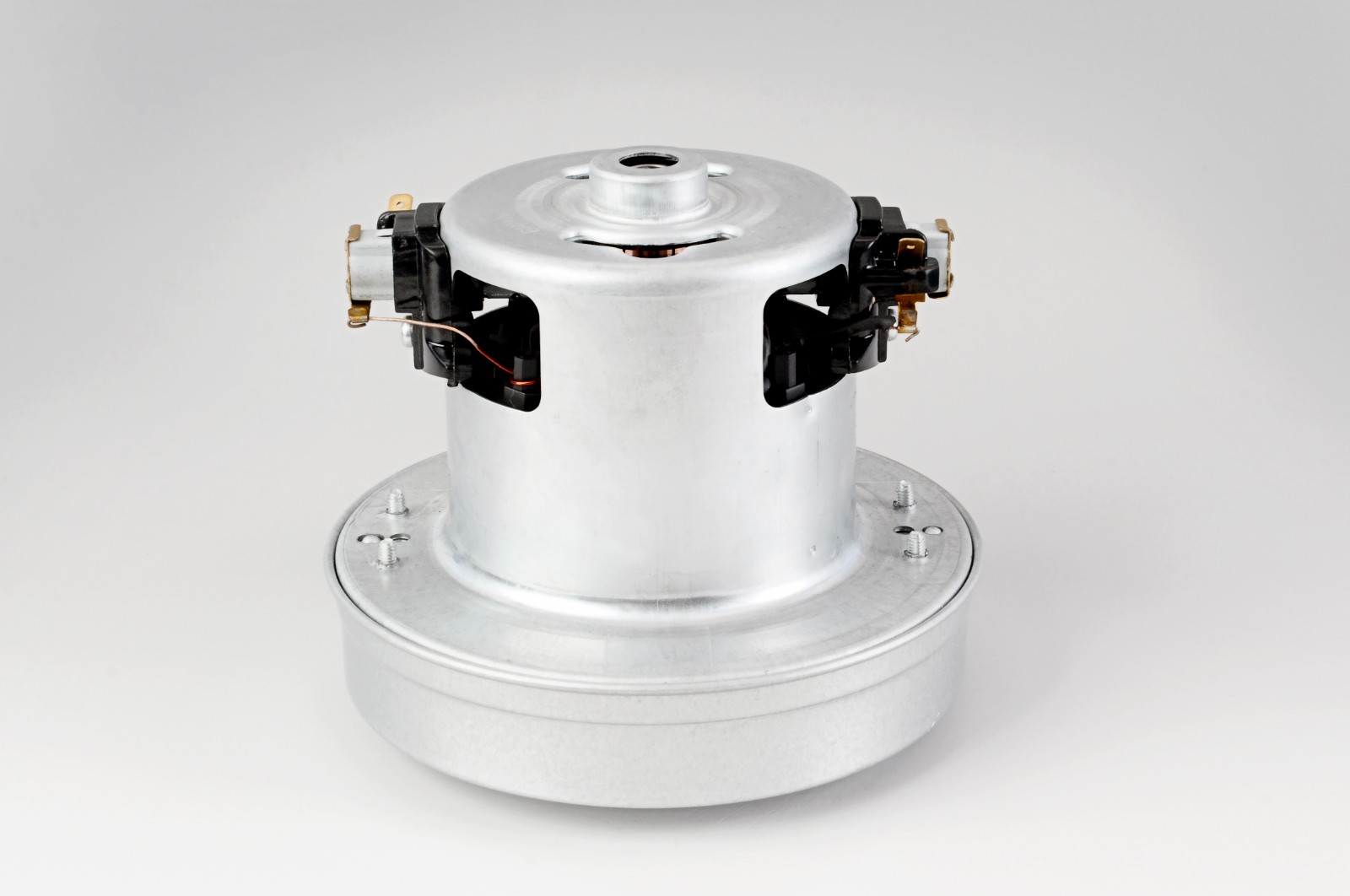

High-Performance HWX-CG08 Motor
The HWX-CG08 is a high-performance vacuum cleaner motor engineered for reliability and efficient operation. Designed with a robust metal housing, it ensures excellent durability and effective heat dissipation for demanding cleaning applications. This motor delivers strong suction power while maintaining low noise levels and efficient airflow, making it an ideal component for a variety of professional and household vacuum cleaner models.
Performance Metrics
Key Performance Indicators
32 Kpa
Max Vacuum
3.2 m3/min
Max Airflow
37 %
Max Suction Efficiency
Technical Specifications
Electrical Characteristics
| Parameter | Value/Range |
|---|---|
| Rated Voltage | 100-240V |
| Frequency | 50/60Hz |
| Input Power | 1800-2000W |
| Noise Level | <92 dB |
| Temperature Rise | 115 K |
| Spark Grade | <2 |

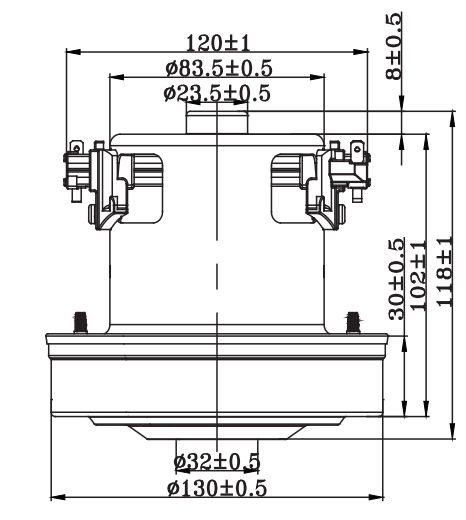

Dimensions Summary
- Overall Width: 120 ± 1 mm
- Main Body Diameter: Ø83.5 ± 0.5 mm
- Motor Height: 118 ± 1 mm
- Base Diameter: Ø130 ± 0.5 mm
