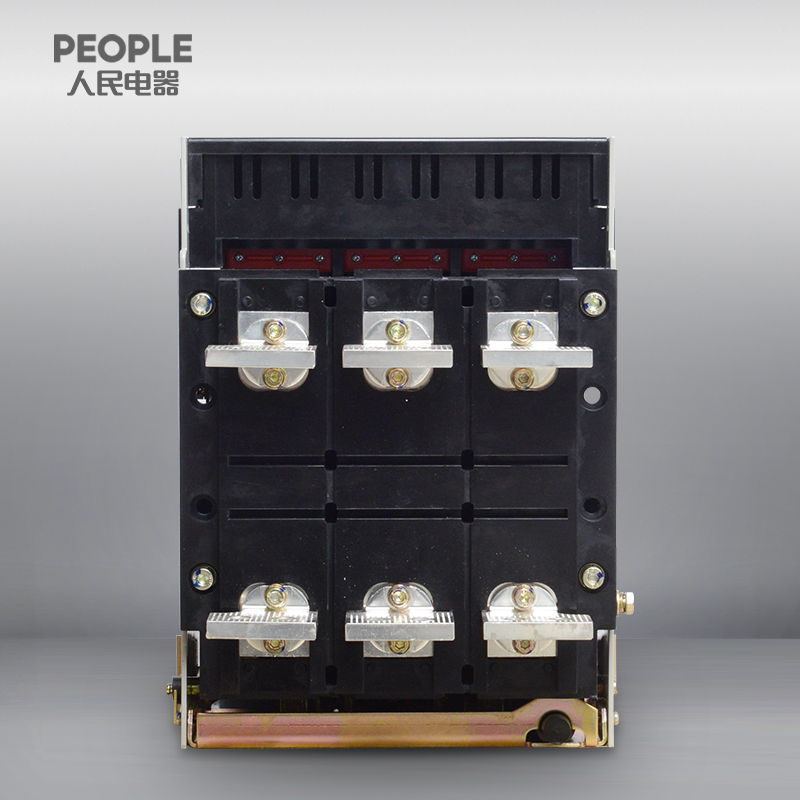

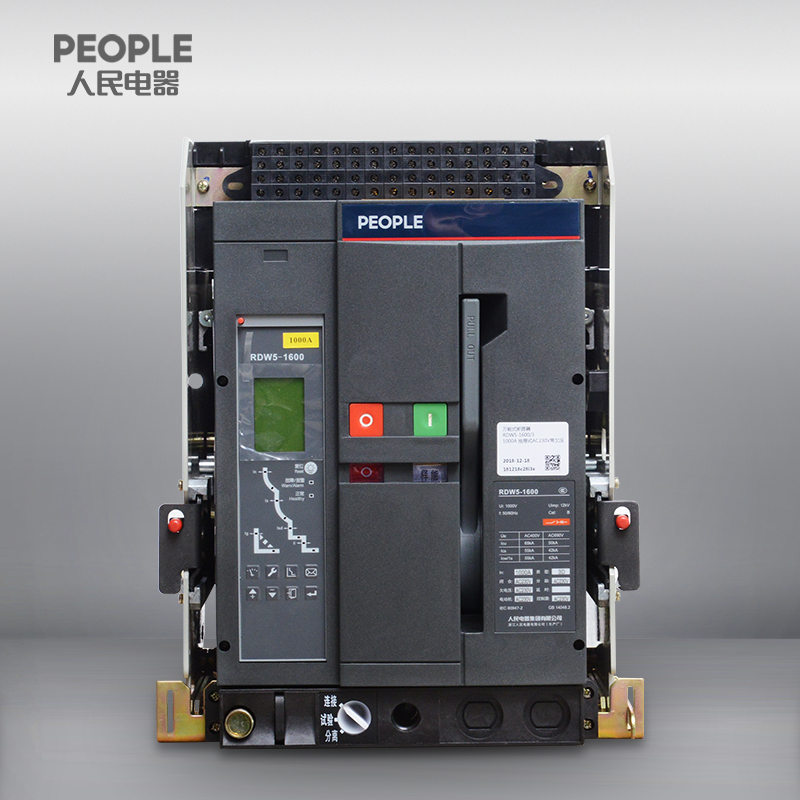

Universal Intelligent Air Circuit Breaker
This air circuit breaker is designed for electric power transmission and distribution systems. It offers comprehensive protection and control features, including overload, short-circuit, and undervoltage protection.
Technical Specifications
Overview
Intelligent Air Circuit Breaker
The RDW5 series intelligent air circuit breaker is designed for power distribution networks operating at AC 50/60Hz. It provides robust protection against electrical faults such as overload, under-voltage, short-circuits, and single-phase grounding. With advanced intelligent control, it supports bidirectional communication and remote control, making it an ideal solution for modern automated electrical systems.
Electrical Ratings
Key Electrical Metrics
690 V
Max Rated Voltage
6,300 A
Max Rated Current
60 Hz
Max Frequency
Protection & Features
- Protection Capabilities
- Overload ProtectionUnder-voltage ProtectionShort-circuit ProtectionSingle-phase GroundingInsulation FunctionRemote Control
Standards & Compliance
International Standards
IEC60947-2
Technical Specifications
Technical Summary
| Feature | Specification |
|---|---|
| Application | Power distribution network |
| Operating Frequency | 50/60Hz |
| Control Capability | Bidirectional communication |
| Installation Type | Modular design |
