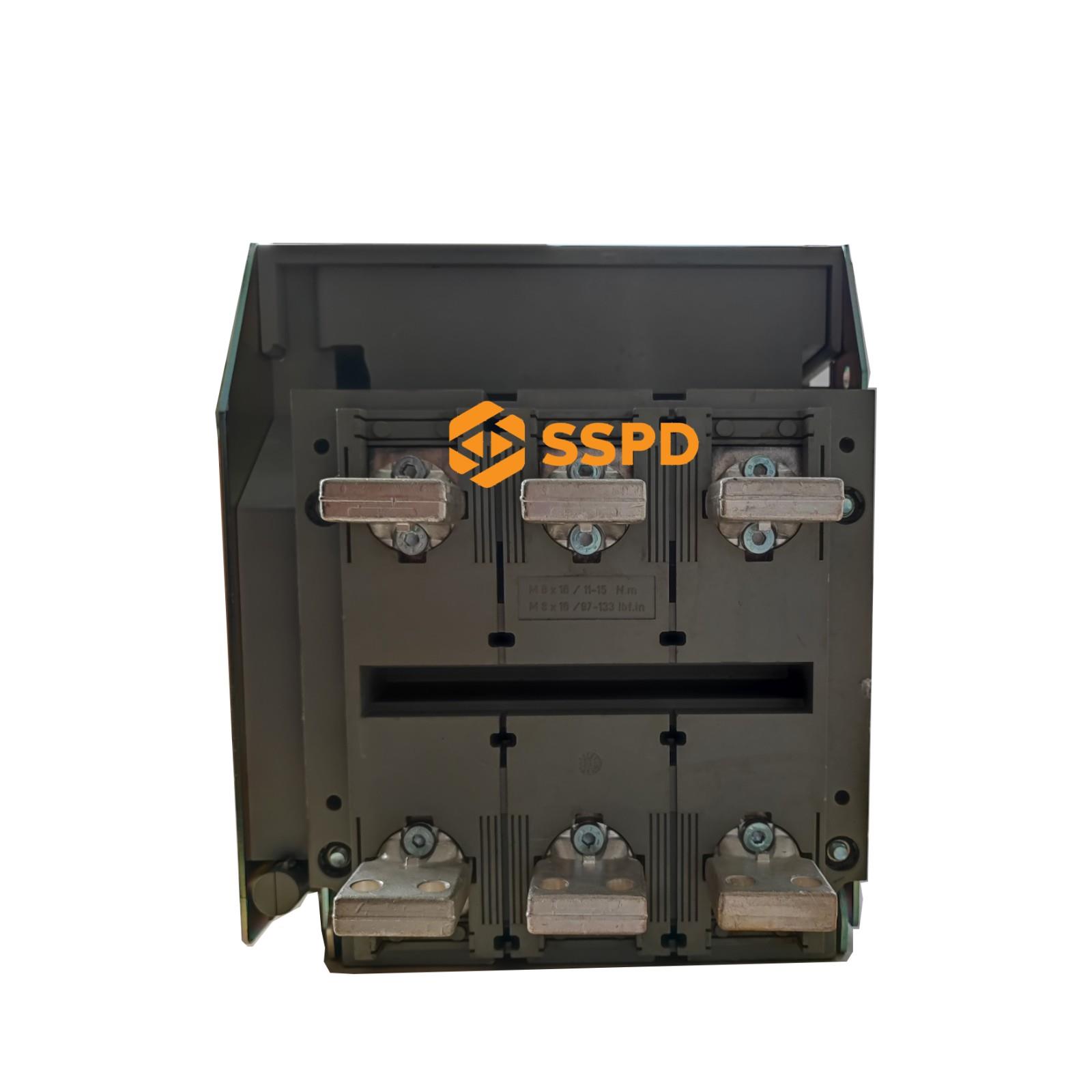

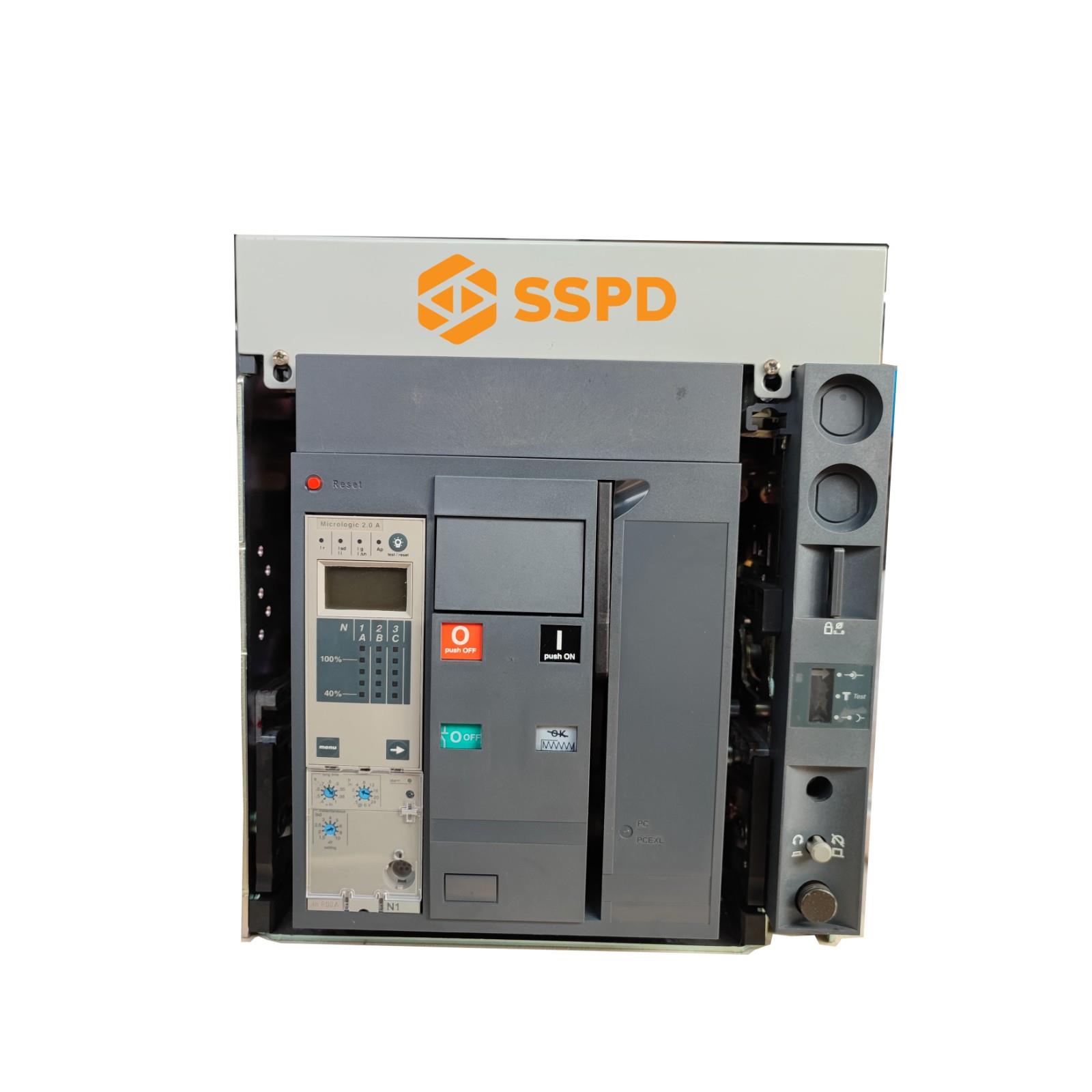

Air Circuit Breaker
This air circuit breaker is designed for electrical power transmission and distribution systems, specifically models ranging from CNT06 to CNT16. It provides robust protection and control for electrical circuits, ensuring reliable performance and safety in various applications.
Technical Specifications
Product Overview
Professional Air Circuit Breaker
The CNT06 to CNT16 series air circuit breakers are engineered for robust electrical power distribution and reliable protection in industrial and commercial environments. These units offer precise monitoring capabilities through integrated control units, ensuring safety and efficiency in demanding electrical systems. With flexible configuration options including fixed and drawout designs, they provide versatile solutions for cable-type feeders and transformer protection.
Electrical Characteristics
- Rated Insulation Voltage (Ui)
- 1000 V
- Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage (Ue)
- 690 V AC
- Number of Poles
- 34
- Degree of Pollution
- 3 (IEC60664-1)
Performance Metrics
Short-Circuit Breaking Capacity (Icu/Ics) at 440V
Configuration & Compatibility
- Available Models
- CNT06CNT08CNT10CNT12CNT16
- Compatible MicroLogic Control Units
- AEPH
- Mounting Options
- FixedDrawout
- Connection Types
- Front ConnectionRear Connection
Standards & Compliance
- Compliance Standards
- IEC60947-2IEC60664-1
