Technical Specifications
Product Overview
Intelligent Air Circuit Breaker System

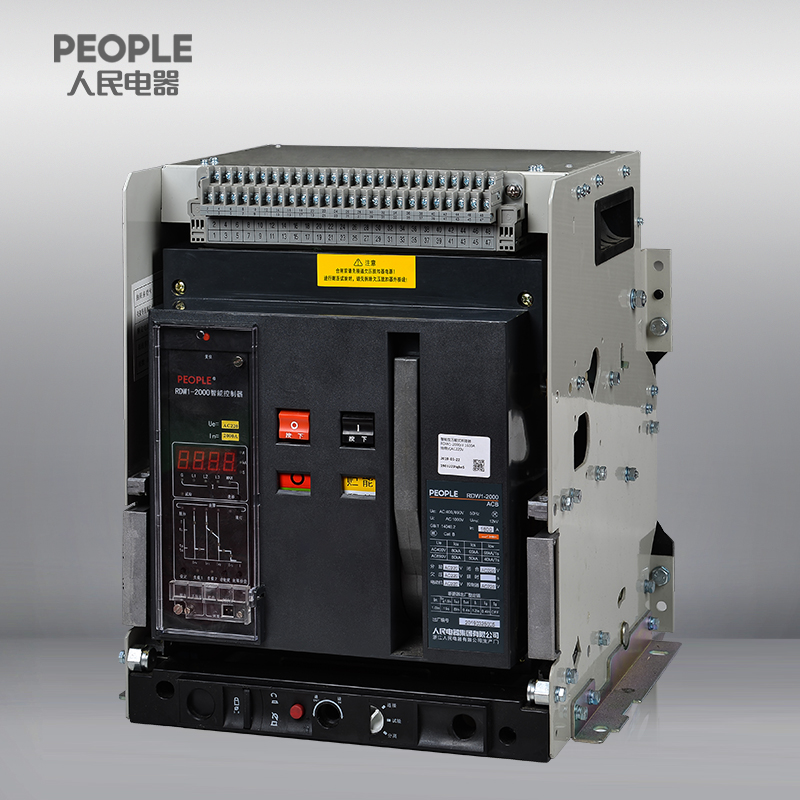

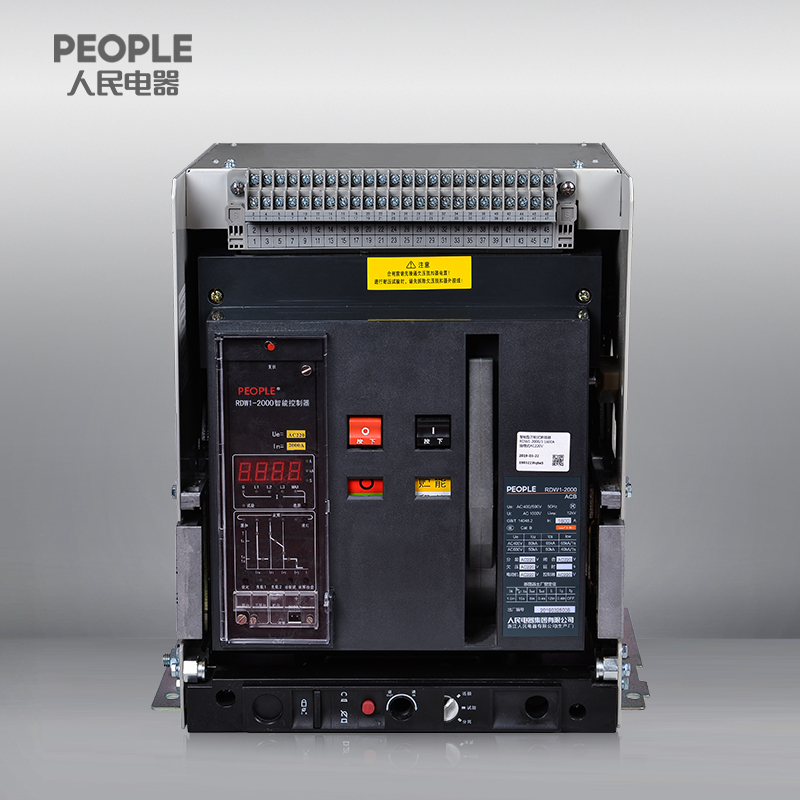

The RDW1-2000~6300 Series is a high-performance intelligent air circuit breaker designed for robust power distribution networks. It provides comprehensive protection against electrical faults including overload, undervoltage, short-circuit, and phase loss, ensuring high power-supply reliability. Equipped with an open communication port, it supports remote control and integration into automated power management systems.
Electrical Ratings
- Rated Operational Voltage
- 690 V
- Rated Current Range
- 400 - 6300 A
- Operating Frequency
- 50Hz60Hz
Operational Environment
- Operating Temperature
- -5ºC to +40ºC
- Maximum Installation Altitude
- 2000 m
- Relative Humidity
- Max 50% at +40ºC
Compliance & Features
Compliance Standards
IEC60947-2
Protection Capabilities
- Overload protection
- Undervoltage protection
- Short-circuit protection
- Single-phase grounding fault protection
- Phase loss protection
System Integration
- Intelligent controller
- Open type communication port
- Remote control functionality
- Isolation function
