Twin Alternating Water Softener Valve

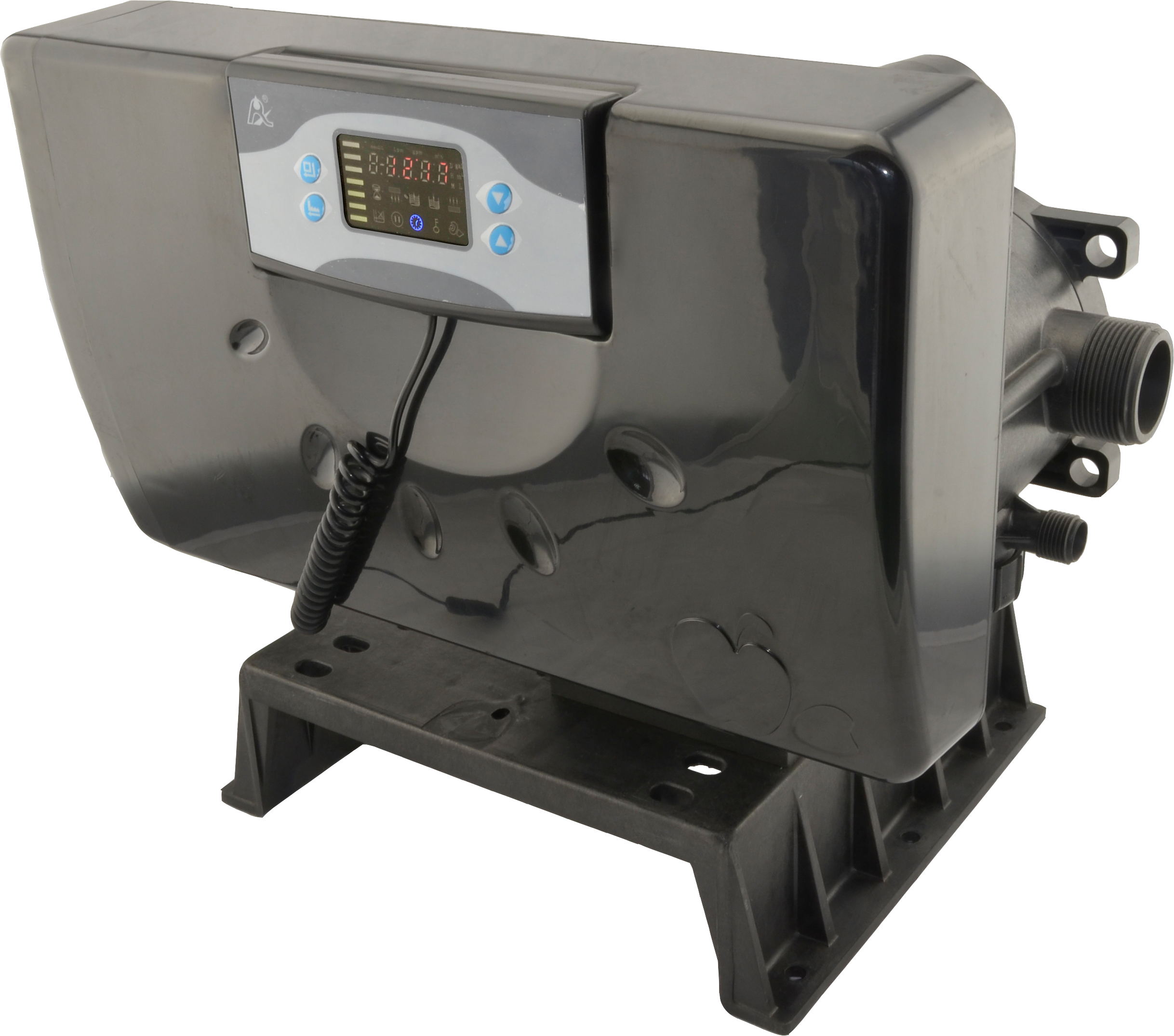

This valve system is designed for water softening applications, alternating between two softener tanks for continuous softened water. It features an electronic control panel with a digital display showing flow rate and total volume.
Technical Specifications
Product Overview
Twin Alternating Valve System
This twin alternating water softener valve is engineered for continuous water treatment, utilizing a dual-tank configuration where one tank remains in service while the other is on standby. It supports a comprehensive range of cycles including service, backwash, brine/slow rinse, brine refill, and fast rinse. Designed for reliability and ease of use, it features an electronic control interface for monitoring critical flow and operational parameters.
Technical Specifications
Flow Rate
10 m3/h
Max Flow Rate
Connection Sizes
| Connection Point | Size |
|---|---|
| Inlet/Outlet | 1.5" M |
| Drain | 1" M |
| Brine Line | 1/2" M |
| Mounting Base | 1.5" M |
Operating Conditions
- Water Pressure: 0.15-0.6 MPa
- Water Temperature: 5-50°C
- Water Turbidity: <2 FTU
- Ambient Temperature: 5-50°C
- Relative Humidity: ≤95% (at 25°C)
System Compatibility
Certifications
CERoHS
- Suitable Applications
- Ion Exchange EquipmentWater Treatment SystemsRO Pretreatment
- Tank Compatibility
- 20"-30" Filter Tanks
Power Requirements
- Power Adapter
- Input AC100~240V/50~60HZ, Output DC24V/1.5A
