Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for water softener systems. It controls water flow during softening and regeneration processes with an electronic control panel.
Technical Specifications
Product Overview

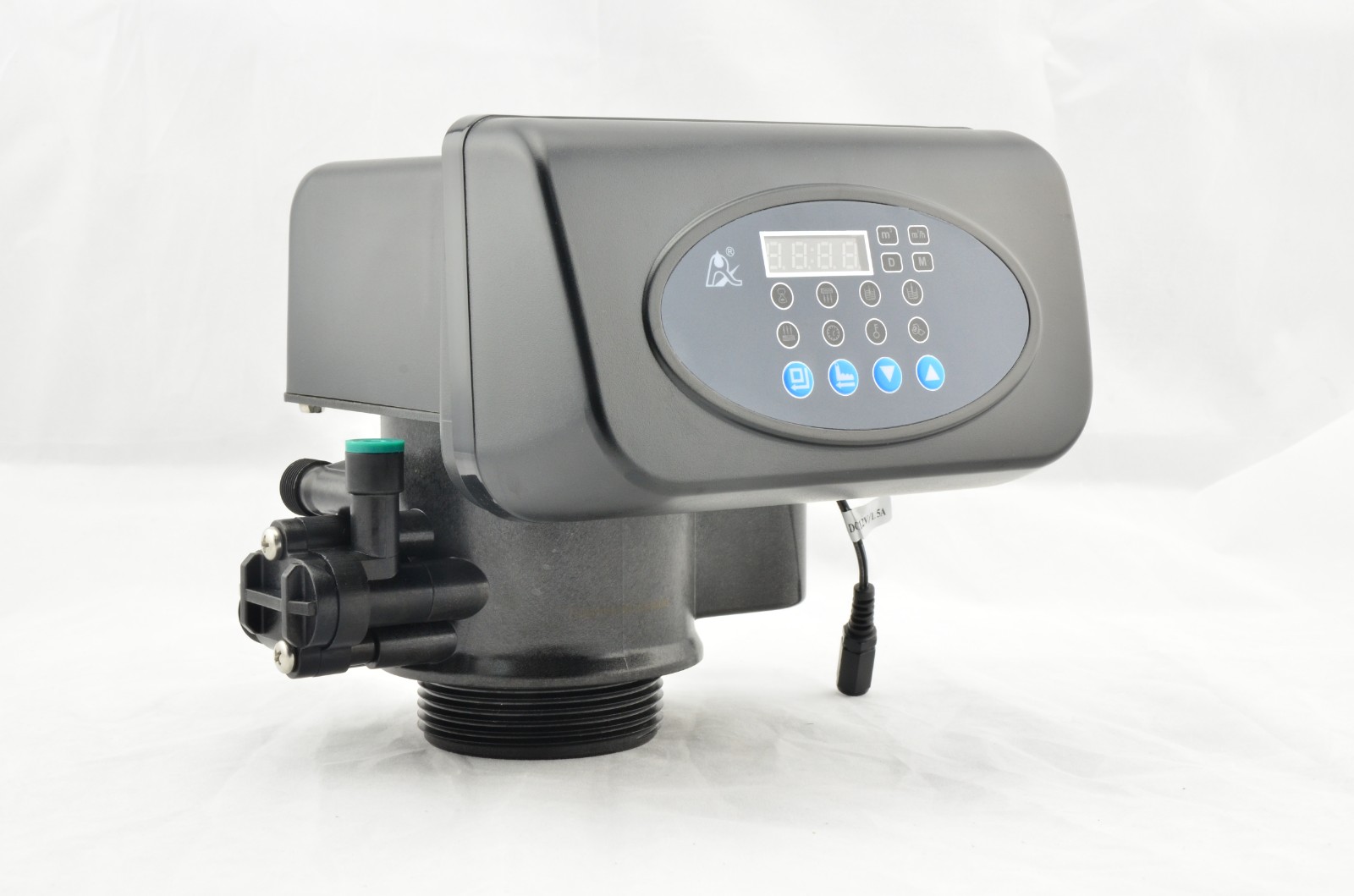

Automatic Multiport Water Softener Valve
This corrosion-resistant multiport valve is engineered for efficient control in water softener and treatment systems. It supports a comprehensive range of regeneration cycles including service, backwash, brine, slow rinse, brine refill, and fast rinse. Available in both time-clock and meter-type configurations, this versatile unit ensures reliable performance for various water treatment applications.
Technical Specifications
Flow Rate
4 m3/h
Maximum Flow Rate
Operating Conditions
| Parameter | Value |
|---|---|
| Water Pressure | 0.15-0.6 MPa |
| Water Temperature | 5-50 °C |
| Max Turbidity | < 2 FTU |
Connection Sizes
- Inlet/Outlet: 1"M
- Drain: 1/2"M
- Brine line: 3/8"M
- Mounting base: 2.5"-8NPSM
- Riser pipe: 1.05"OD
- Power Requirements
- Input AC100~240V/50~60HZ; Output DC12V/1.5A
System Compatibility
Regeneration Types
Time Clock TypeMeter Type
- Compatible Filter Tank Size
- 6" - 18"
- Typical Applications
- Ion ExchangeWater TreatmentRO Pretreatment
Features
Regeneration Cycles
- Service
- Backwash
- Brine
- Slow Rinse
- Brine Refill
- Fast Rinse
- Construction Material
- Corrosion resistant
