Technical Specifications
Product Overview

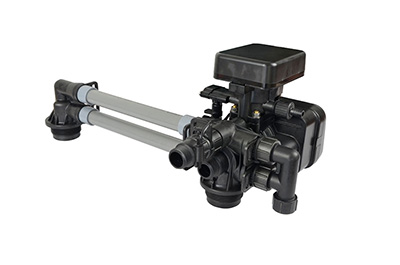

Twin Alternating Water Softener Valve
The F118 Twin Alternating Water Softener Valve is engineered for continuous soft water supply in residential and commercial environments. By utilizing a twin tank configuration, this system ensures that one tank remains in service while the other undergoes regeneration, providing an uninterrupted flow of treated water. The valve features corrosion-resistant construction and advanced electronic controls, allowing for precise, customizable regeneration cycles tailored to specific water conditions.
Technical Specifications
Max Flow Rate
4 m3/h
Flow Rate
Connection Ports
| Connection Point | Specification |
|---|---|
| Inlet/Outlet | G 1" |
| Drain | NPT 3/4" |
| Brine Line | G 3/8" |
| Mounting Base | 3x2.5"-8NPSM |
| Riser Pipe | 3x1.05" OD |
Operating Conditions
Water Quality & Pressure
- Water Pressure: 0.15-0.6 MPa
- Water Temperature: 5-50℃
- Down-flow regeneration turbidity: <5 FTU
- Up-flow regeneration turbidity: <2 FTU
Environmental Requirements
- Ambient Temperature: 5-50℃
- Relative Humidity: ≤95% (at 25℃)
Regeneration Modes
- Supported Modes
- Down-flow ImmediateIntelligent Down-flowUp-flow ImmediateIntelligent Up-flow
Power
- Power Supply
- Input AC100~240V/50~60HZ, Output DC12V/2A
