Truck Bed Crane with Electric Winch

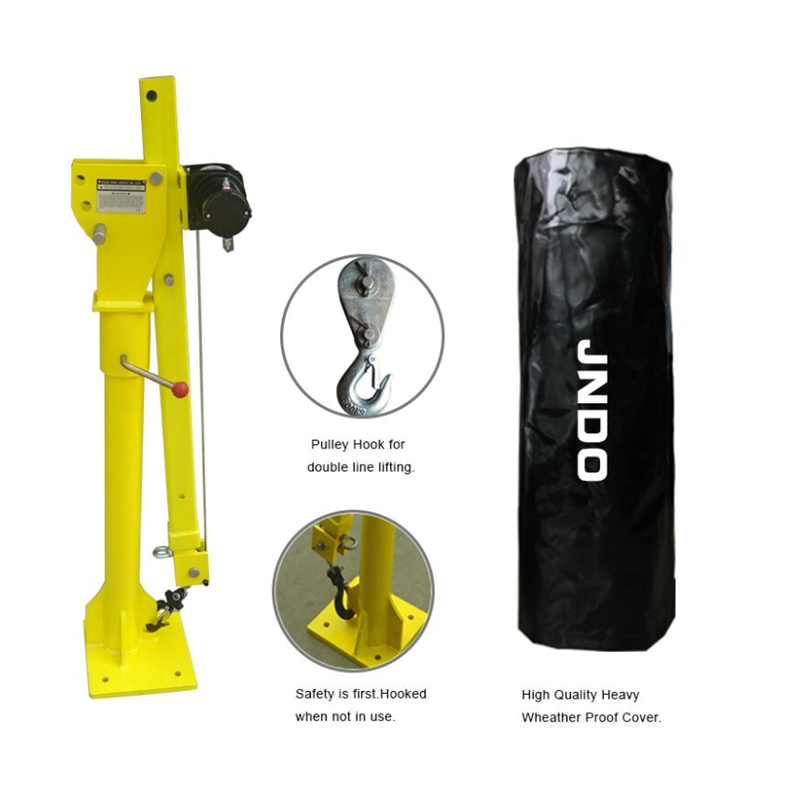

This truck bed crane is designed for easy lifting and loading onto pickup trucks. It features an electric winch with a 3000lb capacity, remote control operation, and a weather-proof cover for durability.
Technical Specifications
Product Overview
Professional Pickup Truck Crane
This 1-ton electric pickup truck crane is a versatile lifting solution designed for pickup trucks, caravan vehicles, loading docks, and platforms. Featuring a compact, foldable design, it saves space when not in use while offering robust lifting capabilities for loads up to 1200kg. With 360-degree rotation and a powerful electric winch, it provides an efficient and safe method for loading and unloading goods in various professional environments.
Technical Specifications
Winch Capacity
3,000 lb
Winch Capacity
- Max Lifting Capacity
- 1200 kg
- Voltage
- 12V DC24V DC
- Rotation Angle
- 360 degrees
Key Features
Safety Compliance
CE Certified125% Overload Tested
Operational Highlights
- Compact, foldable design for minimal storage space
- 3-position gear adjustment for different lifting heights
- 360° swivel operating handle
- Forged heavy-duty swivel hook
- Double line lifting standard for enhanced capacity
Construction
Construction Details
| Component | Feature |
|---|---|
| Main Structure | Thick seamless steel pipe |
| Bearing System | Ball bearings for rotation |
| Hook | Forged alloy steel |
