Tin-Plated Copper Cable Lug
These cable lugs are made from E-Cu material and feature a tin-plated surface treatment. They are used to connect the copper conductor end and include a viewing window to check the conductor location.
Technical Specifications
Overview
High-Conductivity Tin-Plated Copper Lugs
These cable lugs are engineered from high-quality E-Cu copper to ensure optimal electrical conductivity for power distribution and grounding. The surface is treated with tin plating to provide superior corrosion resistance, making them suitable for diverse industrial environments. A built-in viewing window allows installers to easily verify the conductor's location before crimping, ensuring a secure and reliable connection every time.
Material & Construction
Surface Treatment
Tin-plated
- Base Material
- E-Cu (Electrolytic Copper)
Design Features
- Inspection Method
- Integrated viewing window for conductor location verification
- Primary Application
- Connecting copper conductor ends to terminals or studs
Technical Specifications
Standard Model Dimensions
| Type | Length (L) mm | Inner Diameter (d) mm | Hole Diameter (Φ) mm |
|---|---|---|---|
| SC(JGK)1.5-4 | 18 | 1.9 | 4.2 |
| SC(JGK)1.5-5 | 18 | 1.9 | 5.2 |
| SC(JGK)1.5-6 | 18 | 1.9 | 6.5 |
| SC(JGK)2.5-4 | 19 | 2.8 | 4.3 |
| SC(JGK)2.5-5 | 20 | 2.8 | 5.2 |
| SC(JGK)2.5-6 | 20 | 2.6 | 6.5 |
| SC(JGK)4-4 | 19.5 | 3.2 | 4.3 |
| SC(JGK)4-5 | 20.5 | 3.2 | 5.2 |
| SC(JGK)4-6 | 20.5 | 3.2 | 6.5 |

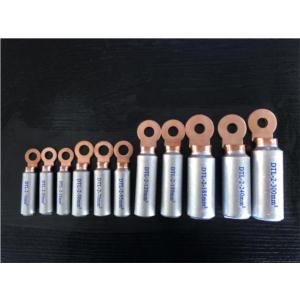

Product Range
- Available Cross-Sections
- 10mm²16mm²25mm²35mm²50mm²70mm²95mm²120mm²150mm²185mm²240mm²300mm²
