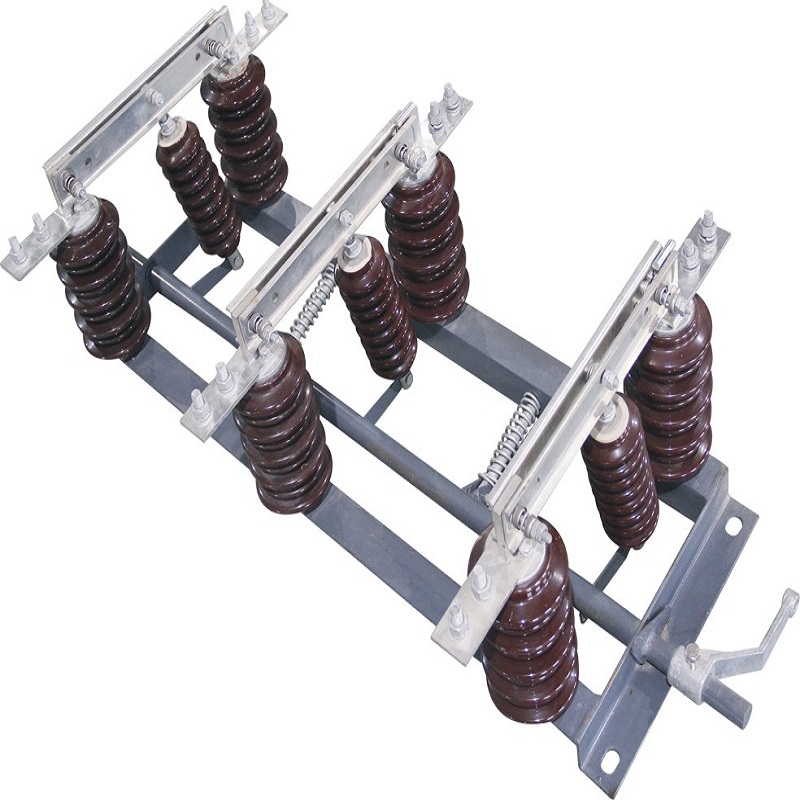

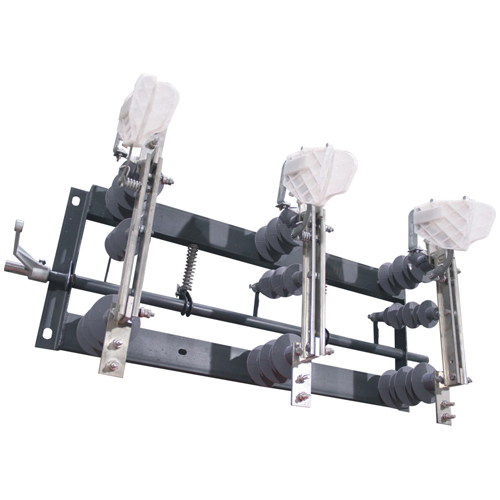

Three-Phase Isolator Switch for High-Voltage Systems
This three-phase isolator switch provides a reliable means of disconnecting circuits in high-voltage electrical systems. It is engineered for durability and long service life, ensuring secure isolation of electrical circuits.
Technical Specifications
Product Overview
High-Voltage Isolation Solution
This three-phase isolator switch series is engineered for reliable power distribution and substation maintenance. Designed for high-voltage environments, these units provide a clear visual break to ensure safe isolation of electrical circuits during service. With robust ceramic insulators and a durable manual operating mechanism, they are suitable for both indoor and outdoor applications in demanding industrial conditions.
- Key Benefits
- Visible BreakHigh-Voltage RatedManual OperationWeather Resistant
Technical Specifications
Operating Characteristics
12,500 A
4S Thermal Stability
31,500 A
Dynamic Stability
Available Configurations
| Type | Voltage (KV) | Current (A) | Creepage Dist. (mm) |
|---|---|---|---|
| GW1 / RGW | 10-15 | 400-1250 | 300-400 |
| GW1 / RGW | 20-27 | 400-1250 | 420-580 |
| GW1 / RGW | 30-36 | 400-1250 | 660-900 |
| HGW1 / HRGW | 10-15 | 400-1250 | 370-520 |
| HGW1 / HRGW | 20-27 | 400-1250 | 600-800 |
| HGW1 / HRGW | 30-36 | 400-1250 | 900-1200 |
