Thermal Overload Relay
This thermal overload relay protects AC motors from overload and phase-failure. It features adjustable current settings and a compact design for essential motor protection.
Technical Specifications
Product Overview
Professional Motor Protection

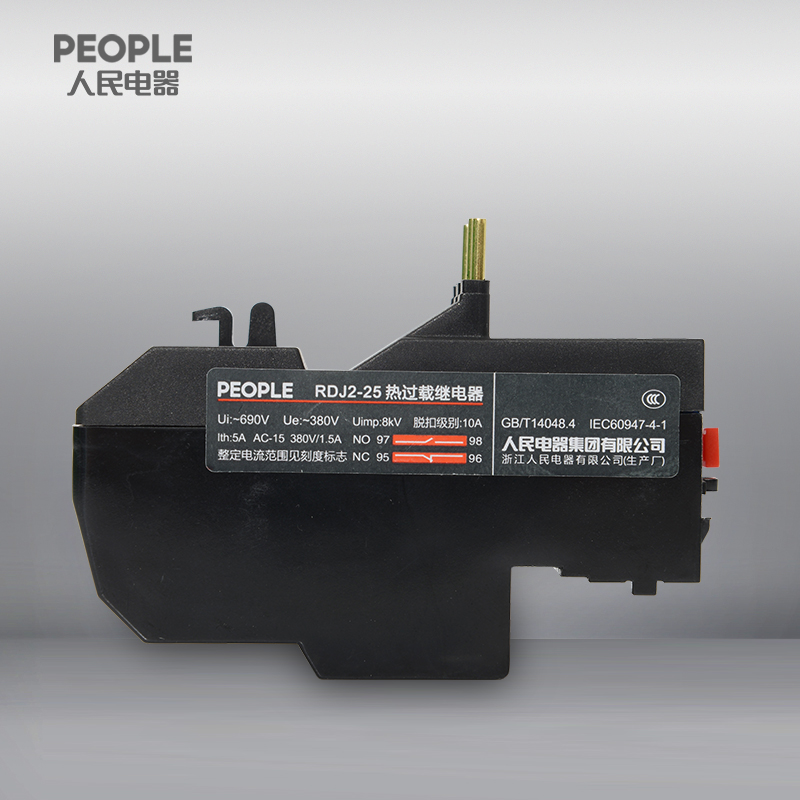

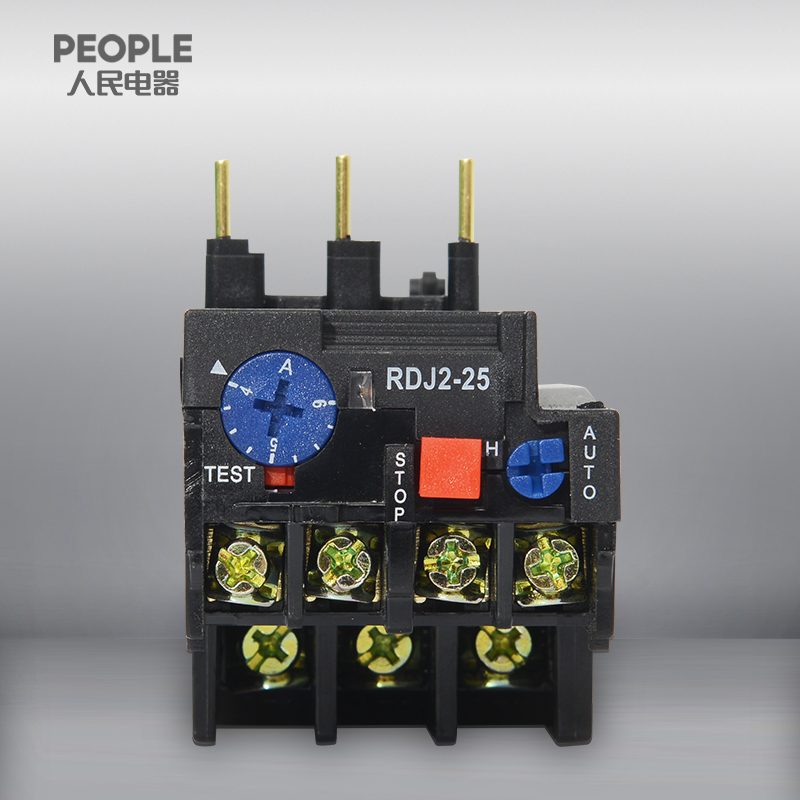

The RDJ2 series thermal overload relay is engineered to provide robust protection for electric motors against overload conditions and phase failure. Designed for integration with AC contactors, these relays offer adjustable current settings and flexible reset options to suit diverse industrial environments. With a compact design and reliable performance, they ensure long-term operational safety for motor-driven equipment.
Electrical Ratings
Rated Current Range
0.16 A
Minimum Current
93 A
Maximum Current
- Rated Working Voltage
- 220VAC380VAC500VAC220VDC110VDC
Technical Specifications
- Tripping Class
- 10A
- Insulation Voltage (Ui)
- 690 V
- Rated Impulse Withstand (Uimp)
- 8 kV
- Compliance Standards
- GB/T14048.4IEC60947-4-1
Compatibility
- Compatible AC Contactors
- CJX2-D series
Design Features
Available Models
- RDJ2-D13
- RDJ2-23
- RDJ2-33
