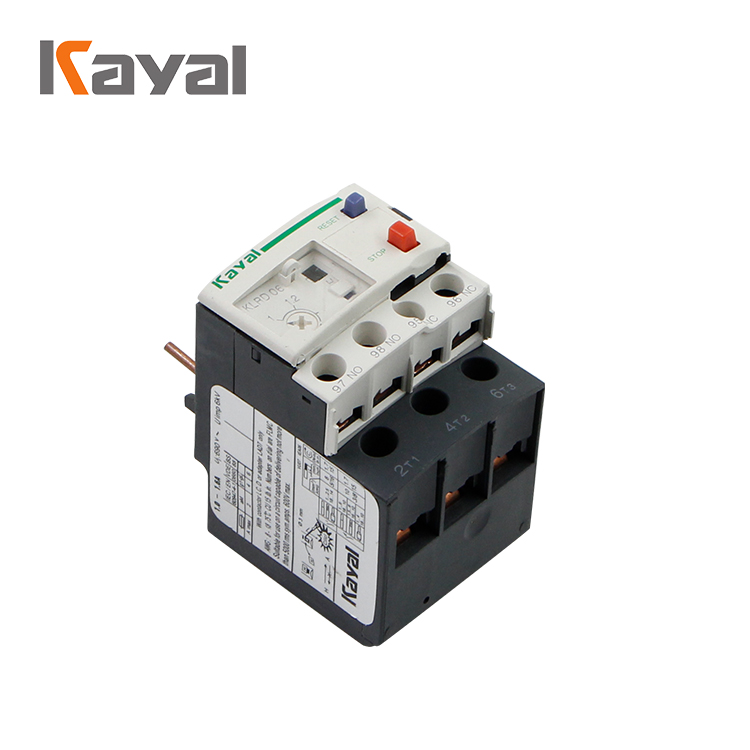

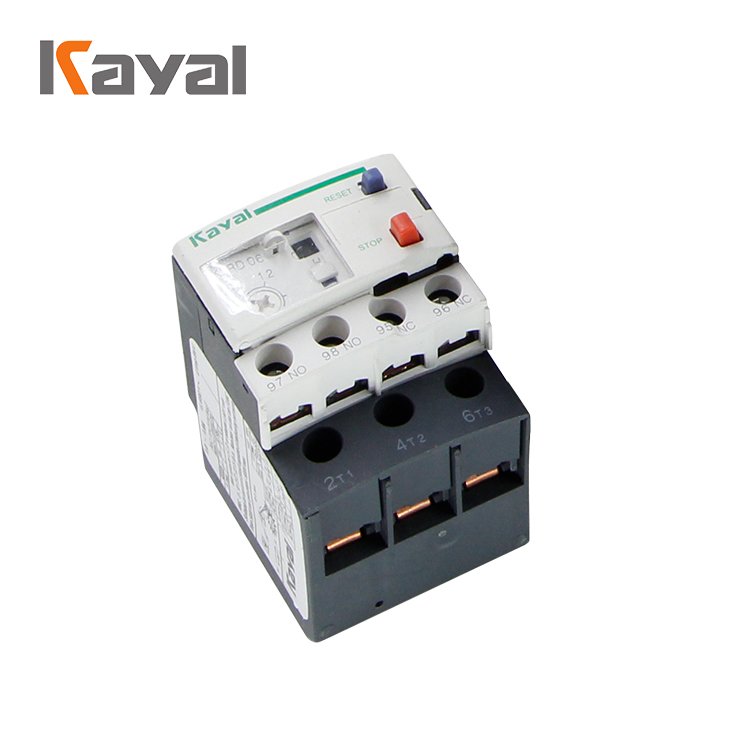

Thermal Overload Relay
This thermal overload relay protects electric motors from overheating and damage due to overload conditions. It features adjustable current settings and auxiliary contacts for remote monitoring and control.
Technical Specifications
Product Overview
Professional Thermal Overload Protection
This advanced thermal relay provides comprehensive protection for electric motors against overloads and phase failures in 50Hz or 60Hz circuits. Engineered for reliability, it features precise adjustable current settings and temperature compensation mechanisms. The unit is designed for seamless integration with AC contactors, offering a robust safety solution for industrial automation, infrastructure, and mission-critical control environments.
Electrical Ratings
- Rated Insulation Voltage
- 660 V
- Auxiliary Circuit Insulation Voltage
- 500 V
- Frequency Range
- 50-60Hz
Technical Specifications
Key Protection Features
- Overload protection
- Phase loss sensitivity
- Temperature compensation

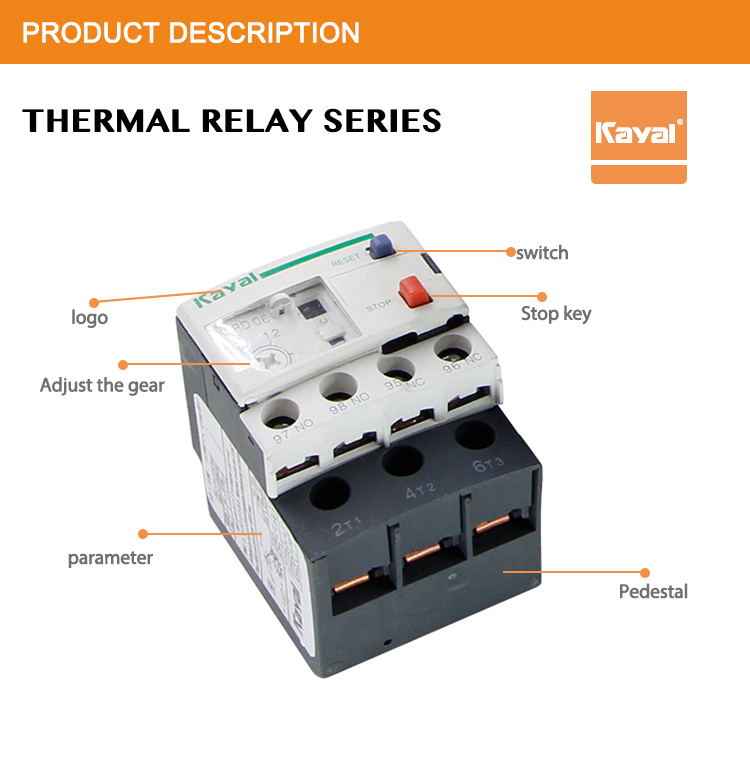

- Manual reset and stop functions
- Rated Current Range
- 0.1A - 96A
- Auxiliary Contacts
- 1 NO1 NC
Performance Data
Three-phase Balance Motion Time
| Setting Multiplier | Motion Time | Condition |
|---|---|---|
| 1.05 | >2h | Cold state |
| 1.2 | <2h | Heat state |
| 1.5 | <4min | Heat state |
Test Ambient Temperature
20 °C
