Thermal Label Printer
This thermal label printer is a compact and efficient printing solution for labeling and identification. It utilizes direct thermal technology to produce high-quality, durable labels without needing ink or toner.
Technical Specifications
Overview

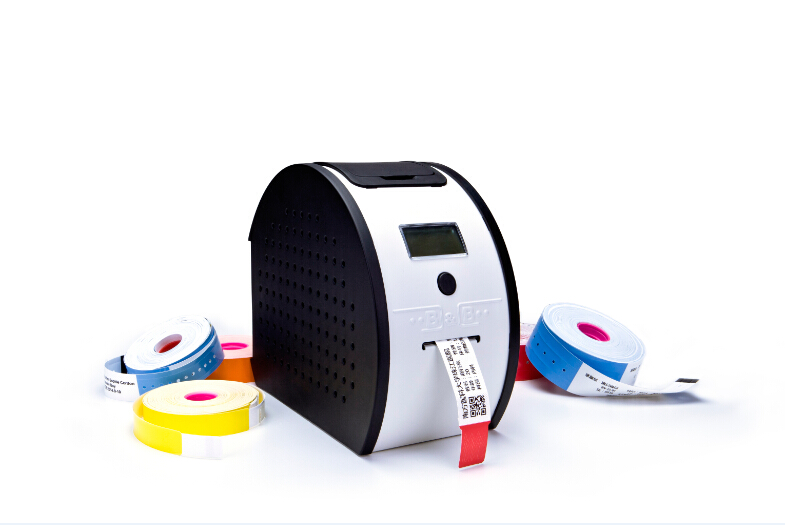

Compact High-Precision Thermal Printer
This professional-grade thermal printer is designed for high-precision printing of small labels, wristbands, and barcodes. Featuring a robust metallic body and a 300 dpi resolution, it ensures clear, accurate output for 1D and 2D barcodes. The device is engineered for ease of use, offering automatic feeding and alignment, making it an ideal out-of-the-box solution for environments ranging from healthcare and retail to logistics and office management.
Printing Capabilities
Resolution
300 dpi
Resolution
- Print Width Range
- 10mm - 40mm
- Maximum Print Speed
- 100 mm/s
Connectivity & Software
Supported Barcode Types
- Linear: Code 39, 128A/B/C, EAN-128, Code 93, Codabar, UPC-A/E, EAN-13/8, Postnet, MSI, GS1 Databar
- 2D: PDF-417, Maxicode, Data Matrix, QR code, Aztec
- Connectivity Interfaces
- USB 2.0Ethernet (RJ45)Wireless 802.11 b/g (Optional)
Physical Specifications
- Dimensions (W x H x D)
- 125mm x 213.5mm x 265.5mm
- Gross Weight
- 3.29 kg
Operating Environment
- Operating Temperature Range
- 4.4°C to 40°C
- Operating Humidity
- 20% - 85% (non-condensing)
Power
- Power Supply
- 100-240VAC, 50-60Hz (70 Watts)
