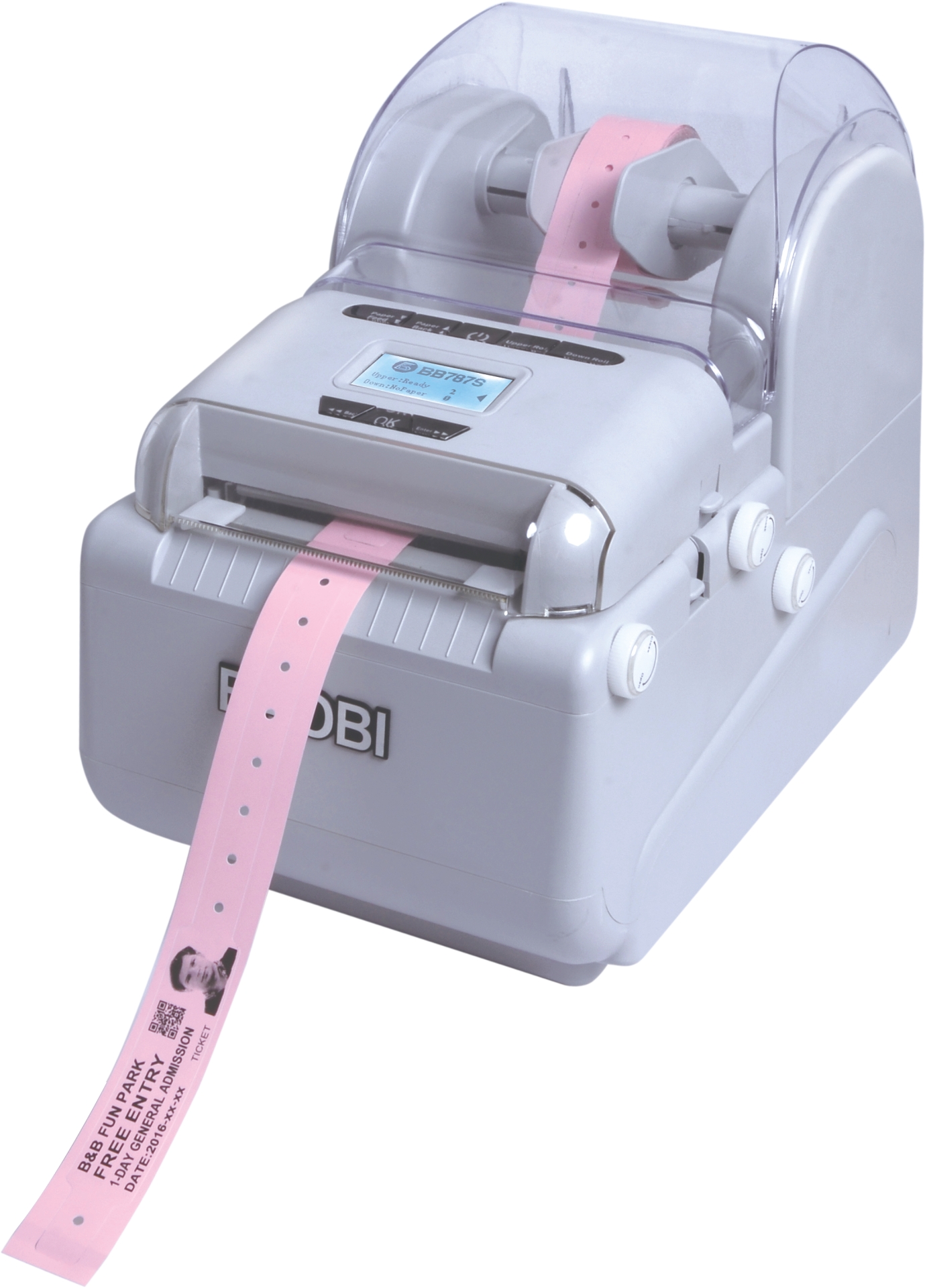

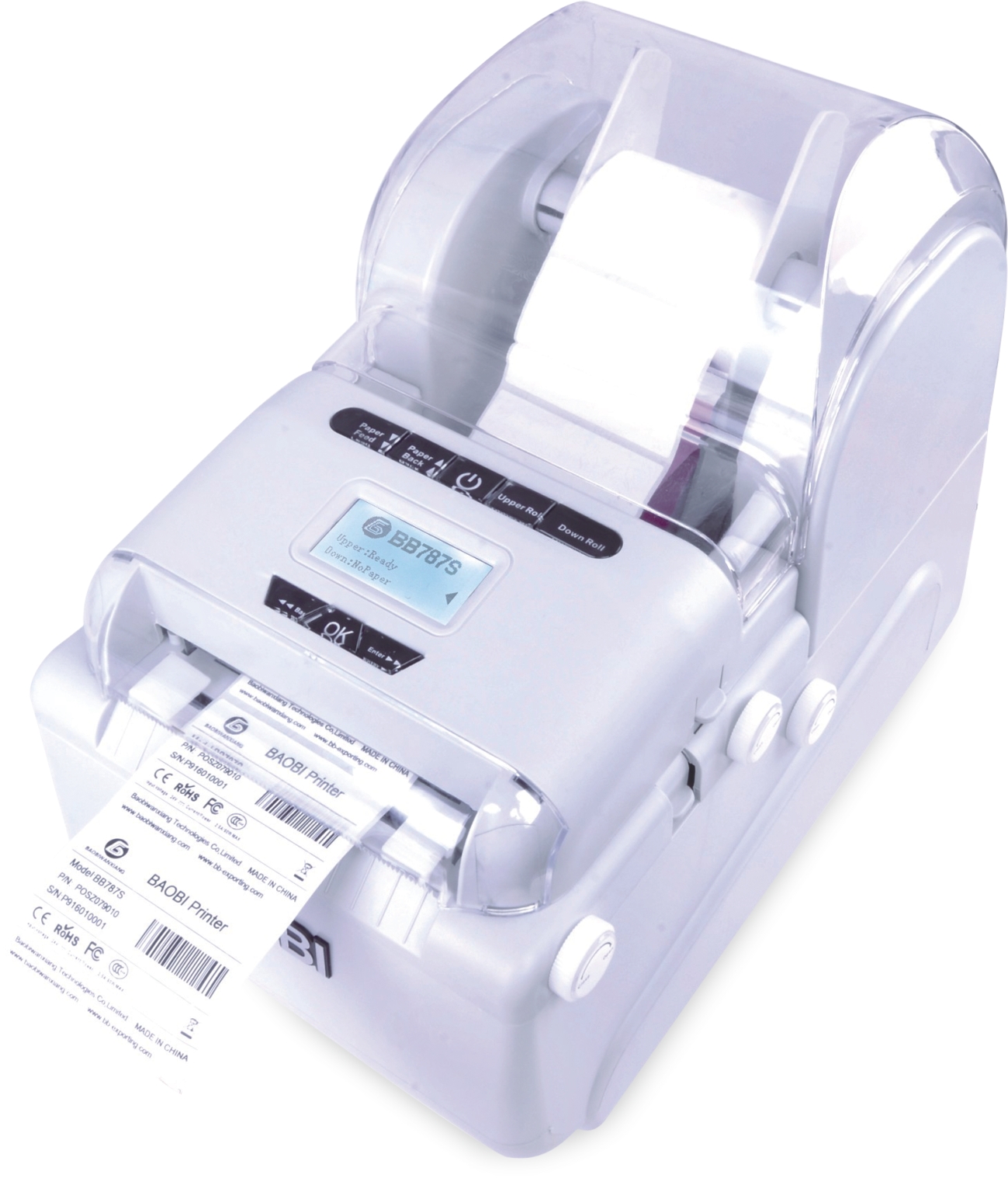

Thermal Ticket and Label Printer
This thermal printer is designed for efficient ticket and label printing. It features a user-friendly interface with a display screen and supports various roll configurations.
Technical Specifications
Overview
High-Performance Thermal Printing Solution
This advanced thermal ticket and label printer features a versatile dual-roll loading system, allowing for seamless switching between labels and wristbands. With a 300dpi resolution and a maximum print width of 108mm, it delivers high-precision output for one-dimensional and 2D barcodes, graphics, and text. Designed for efficiency, it includes an easy-access paper path to resolve jams quickly and an integrated LCD screen for real-time status monitoring.
Printing Performance
Resolution
300 dpi
Resolution
12 dots/mm
Dot Density
Print Speed
- Standard: 60mm/s
- Maximum: 5 ips
- Print Width
- 10mm - 108mm
Connectivity & Software
Supported Barcodes
| Type | Examples |
|---|---|
| Linear | Code 39, Code 128, UPC-A/E, EAN-13/8, Codabar, Interleaved 2 of 5 |
| 2-Dimensional | PDF-417, Maxicode, Data Matrix, QR code, Aztec |
- Connectivity
- USB 2.0Ethernet (RJ45)Wireless 802.11 b/g (Optional)
Physical Specifications
Dimensions & Weight
225 mm
Width
306 mm
Height
345 mm
Depth
3.32 kg
Weight
Operating Environment
Operating Conditions
| Parameter | Range |
|---|---|
| Operating Temperature | 4.4°C to 40°C |
| Storage Temperature | -40°C to 80°C |
| Operating Humidity | 20% - 85% (non-condensing) |
Electrical
- Power Requirements
- 100-240VAC, 50-60Hz, 60 Watts
Compliance
Certifications
CERoHSFCC
