Textile Fiber Bale Plucker
This textile fiber bale plucker provides flexible action and reliable precision. It features high automation and intellectualization for convenient control in blowroom and card systems.
Technical Specifications
Overview

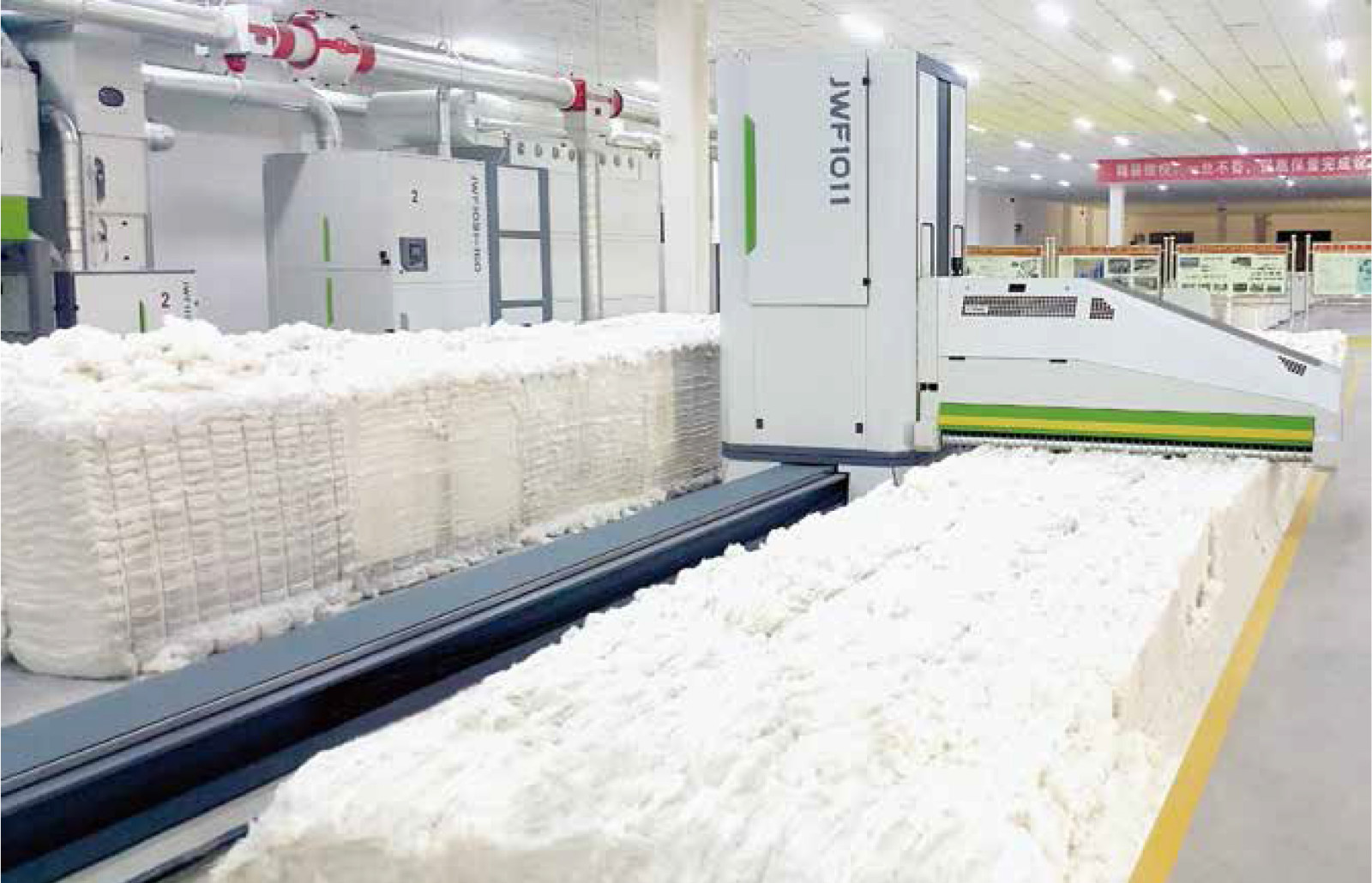

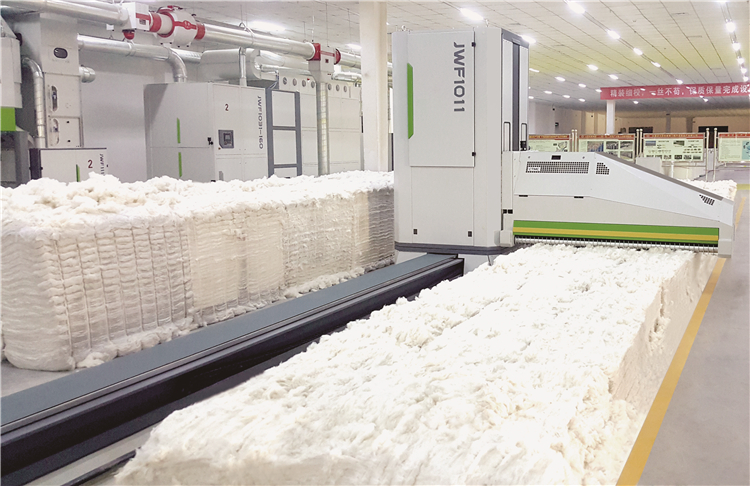

JWF1011 Reciprocating Bale Plucker
The JWF1011 is a high-performance fiber bale plucker designed for the demanding requirements of modern blowing rooms. It features a robust design optimized for production rates up to 2000kg/h, ensuring reliable precision and high levels of automation. This machine is engineered for flexible action and intelligent control, making it an essential component for integrated blowroom and carding systems.
Performance Metrics
Performance Highlights
2,000 kg/h
Max Production
2,300 mm
Working Width
11.92 kW
Total Power
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Blade Number | 22 PCS |
| Maximum Bale Height | 1.6 m |
| Suction Slot Length | 16~50 m |
| Beater Descending Speed | 0.1~20 mm |
| Beater Driven Power | 8 kW |

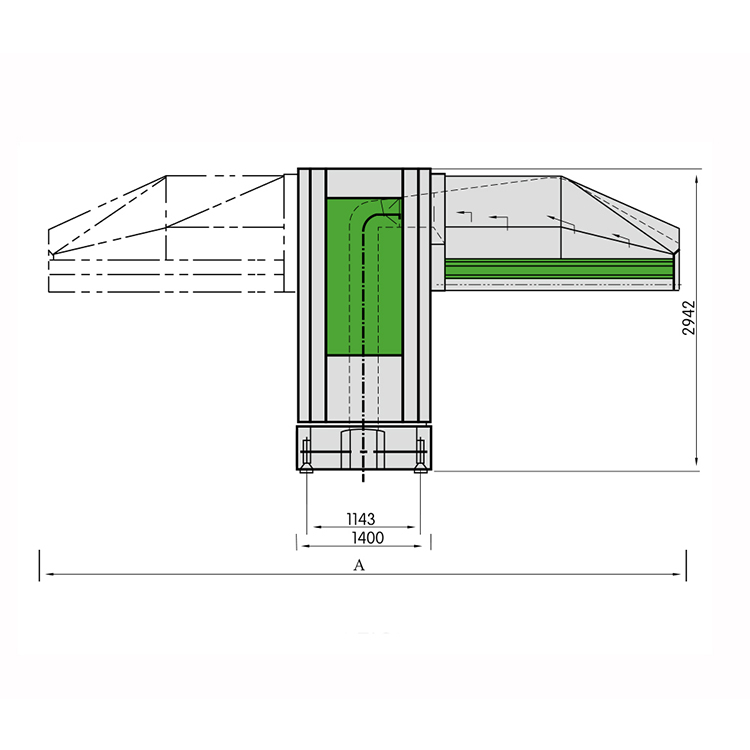

| Dimension A | 6558 mm |
Material Compatibility
- Suitable Materials
- Pure CottonChemical Fiber (<76mm)
Key Features
Advanced Features
- Increased beater blade teeth for fine plucking
- Independent double-motor beater drive
- Enlarged beater center distance for smoother tuft transfer
- Star-shape steel disc compressing roller with chain motor drive
- Optimized suction chamber profile for even air distribution
- Enlarged suction slot area for high-volume transportation
- Adjustable grid height to meet varied production needs
- Supports one machine/two lines for three types of material
Control & Automation
Control System
- Inverter-controlled beater speed
- High automation and intellectualization
- Integrated control for blowroom and card systems
Certifications
Quality Standards
ISO 9001Environmental Management SystemOccupational Health and Safety
