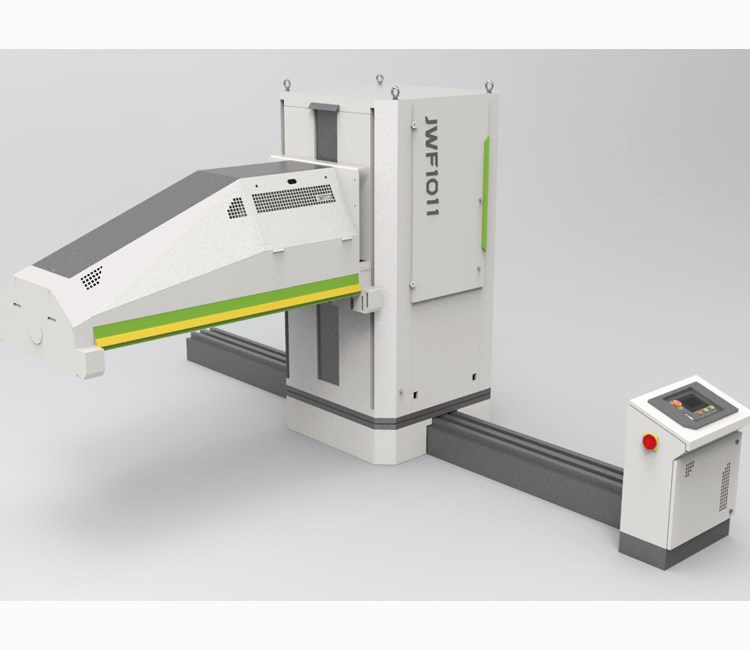

Bale Plucker for Fiber Preparation

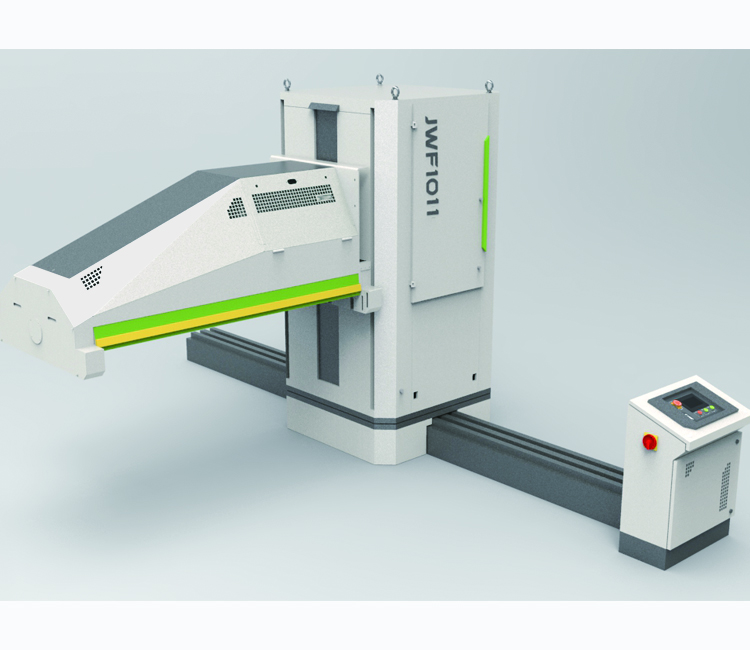

This bale plucker is designed for the initial processing of various fibers including cotton, chemical, and viscose fibers less than 76mm in length. Equipped with a plucker arm featuring two beaters, it moves to pluck material bales which are then transported by air.
Technical Specifications
Product Overview
High-Efficiency Bale Plucker

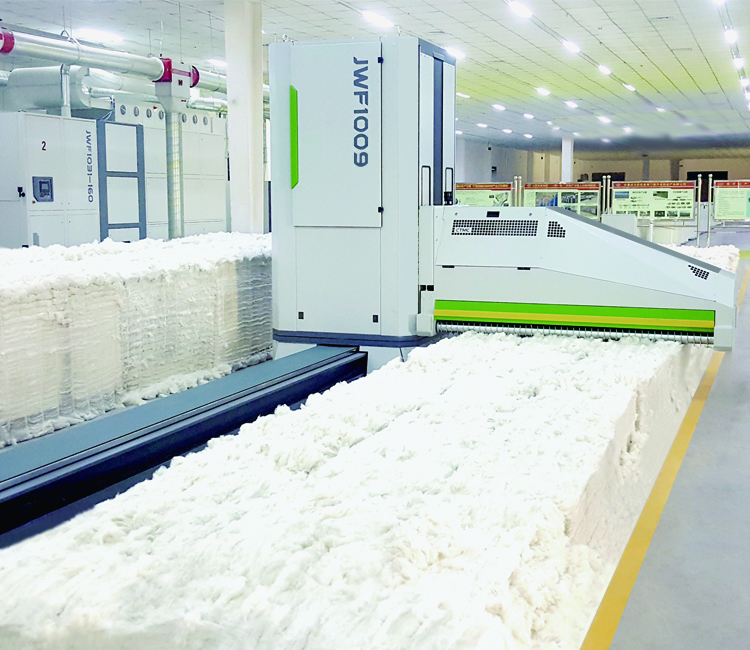

The JWF1009 series bale plucker is a critical primary component of the blowing-carding line, engineered for the precise preparation of cotton, chemical fibers, and viscose. Featuring a dual-beater arm with 180-degree rotation, the machine ensures uniform material extraction and automated processing via an integrated micro-computer. Its balanced design and auto-stop safety functions provide reliable, high-performance material handling for modern textile mill operations.
Operational Specifications
- Fiber Length Capacity
- 76 mm
- Bale Plucking Capacity
- 1 to 3 groups of bales
- Control System
- Micro-computer controlled automatic plucking
Mechanical Configuration
- Knives and Tips (JWF1009-170)
- 16 plucking knives and 96 tips
- Knives and Tips (JWF1009)
- 22 plucking knives and 132 tips
- Beater Configuration
- Dual beater arm with 180 degree rotation
- Safety Features
- Balance deviceAuto-stop functionDetecting rollers
