High Voltage Shutter Interlock Mechanism

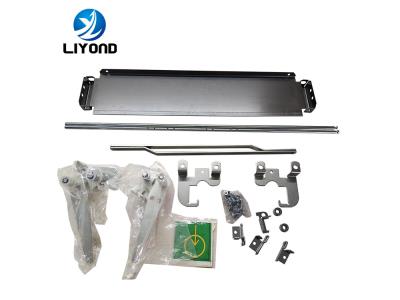

This shutter interlock mechanism is a critical safety component designed for high voltage switchgear systems. It provides essential interlocking functionality for switch widths of 800mm and 1000mm, ensuring safe operation and maintenance. The robust metal construction is engineered for reliability in power transmission and distribution environments.
Technical Specifications
- Model Type
- 5xS.320.010/011/012
- Material & Finish
- Iron with zinc surface treatment
- Supported Switch Width
- 800mm1000mm
- Rated Voltage
- 12kV24kV
- Direction
- Offside
- Application
- High voltage switchgear accessories
Component Parts

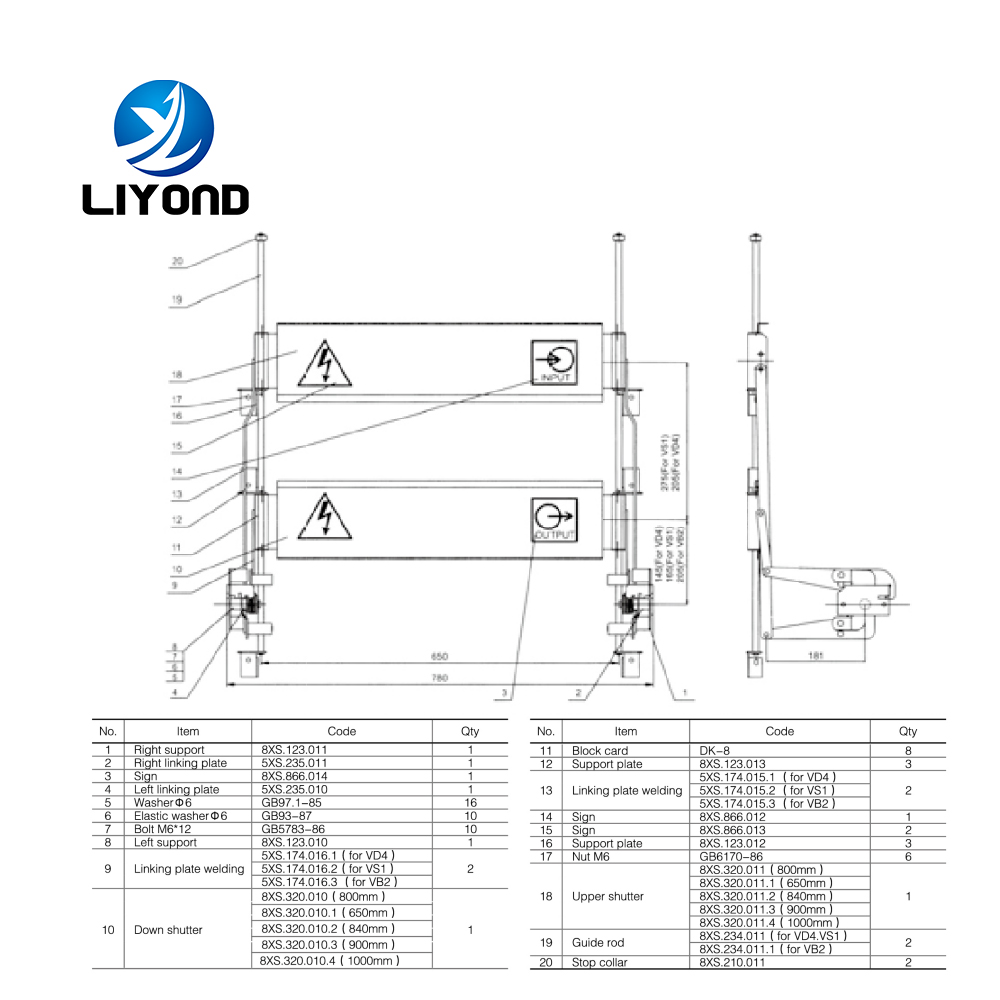

Key Components
| Item Name | Code |
|---|---|
| Right support | 8XS.123.011 |
| Left support | 8XS.123.010 |
| Right linking plate | 5XS.235.011 |
| Left linking plate | 5XS.235.010 |
| Upper shutter | 8XS.320.011 |
| Down shutter | 8XS.320.010 |
| Guide rod | 8XS.234.011 |
| Stop collar | 8XS.210.011 |
