Surge Protection Device
This surge protection device is designed to protect electrical equipment from transient overvoltages. It has a maximum discharge current of 50kA and a voltage protection level of 1.5kV.
Technical Specifications
Product Overview
Professional Surge Protection

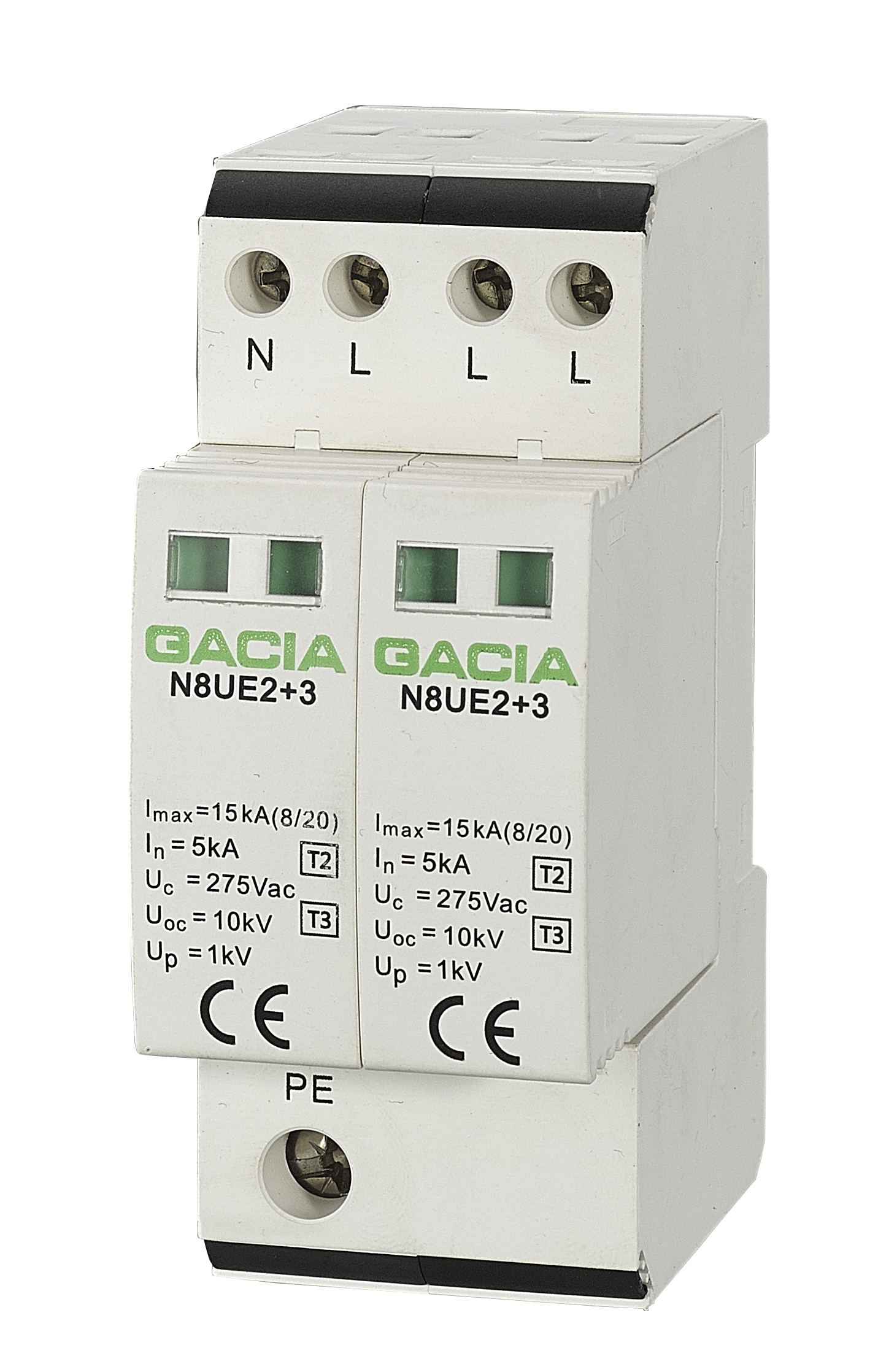

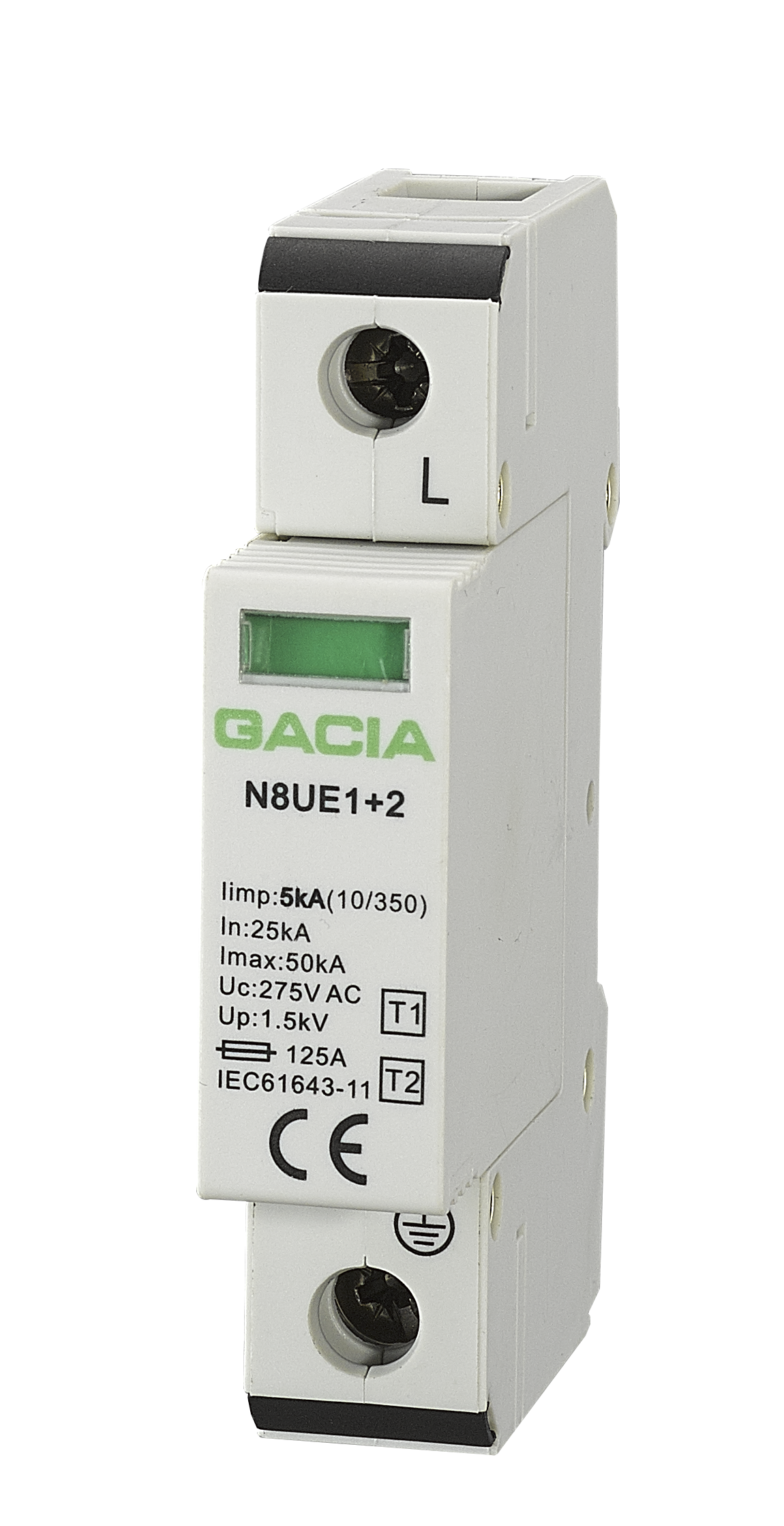

The N8UE Surge Protection Device series provides comprehensive shielding for electrical installations against transient overvoltage and indirect lightning strikes. Designed with a modular, plug-in architecture, these units allow for rapid maintenance and module replacement without requiring full system disconnection. Equipped with status indicators and optional remote signaling, the series offers reliable monitoring for critical industrial and commercial electrical infrastructure.
Technical Standards
- Certifications
- EN 61643-11IEC 61643-11CE
Performance Metrics
Performance Ratings
25 kA
Impulse Current (Iimp)
80 kA
Max Discharge Current (Imax)
440 V
Max Continuous Voltage (Uc)
System Configuration
Connection Configurations
- 1+0
- 1+1
- 2+0
- 3+0
- 3+1
- 4+0
Protection Levels
SPD Classes
Type 1+2Type 2Type 2+3
