Photovoltaic Surge Protection Device
This surge protection device is designed for photovoltaic (PV) systems. It provides protection against voltage surges caused by lightning strikes or other electrical disturbances.
Technical Specifications
Overview
Advanced DC Surge Protection for PV Systems

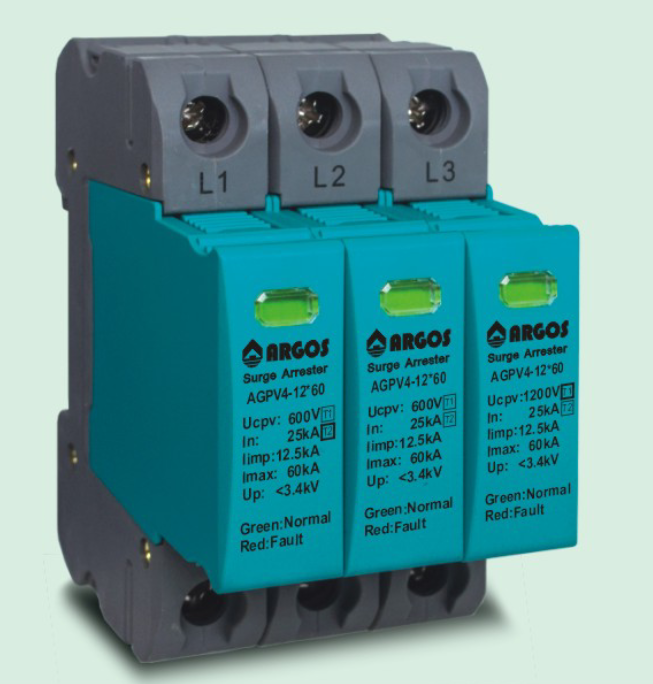

This Type 1+2 DC Surge Arrester is specifically engineered to protect photovoltaic installations from voltage surges caused by lightning strikes and electrical disturbances. It offers a robust defense for L1, L2, and L3 circuits, ensuring the longevity of sensitive solar equipment. With a rapid response time and clear visual status indicators, it provides reliable, high-capacity protection for professional B2B solar energy projects.
Key Performance Metrics
Performance Highlights
60 kA
Max Discharge Current (Imax)
25 kA
Nominal Discharge Current (In)
25 ns
Response Time (tA)
Technical Specifications
Model Variants & Ratings

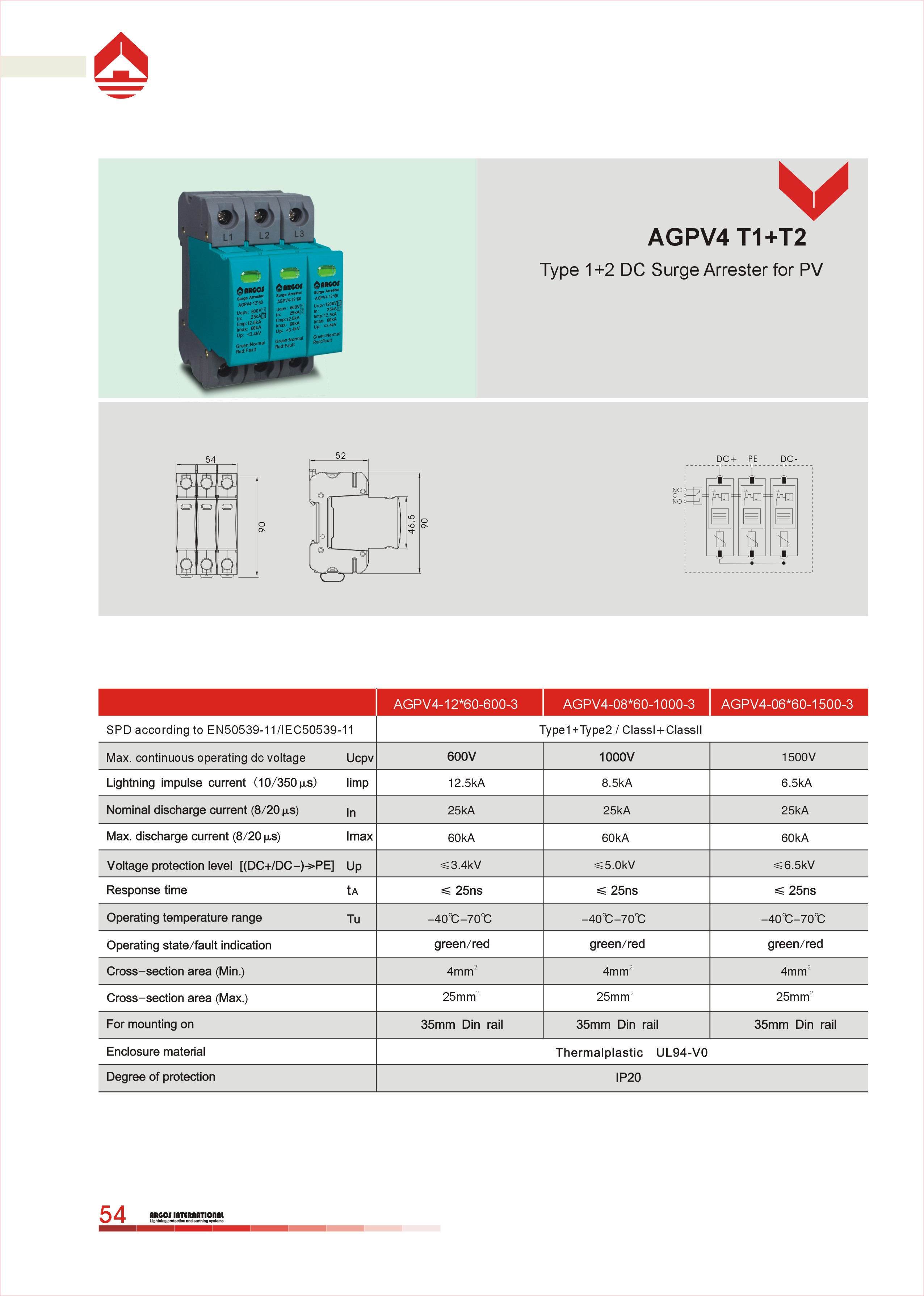

| Model Series | Max Voltage (Ucpv) | Impulse Current (Iimp) | Protection Level (Up) |
|---|---|---|---|
| AGPV4-12*60-600-3 | 600V | 12.5kA | ≤3.4kV |
| AGPV4-08*60-1000-3 | 1000V | 8.5kA | ≤5.0kV |
| AGPV4-06*60-1500-3 | 1500V | 6.5kA | ≤6.5kV |
| AGPV4-12*40-600-3 | 600V | 12.5kA | ≤2.6kV |
| AGPV4-12*40-1000-3 | 1000V | 12.5kA | ≤4.0kV |
Installation & Environment
Degree of Protection
IP20
Wire Cross-Section Area
- Minimum: 4mm²
- Maximum: 35mm²
- Mounting Method
- 35mm DIN rail
- Operating Temperature
- -40°C to 80°C
Construction & Safety
Visual Status Indicators
- Green: Normal Operation
- Red: Fault Condition
- Enclosure Material
- Thermoplastic UL94-V0
Standards
- Compliance & Standards
- EN50539-11IEC50539-11Type 1+2Class I+II
