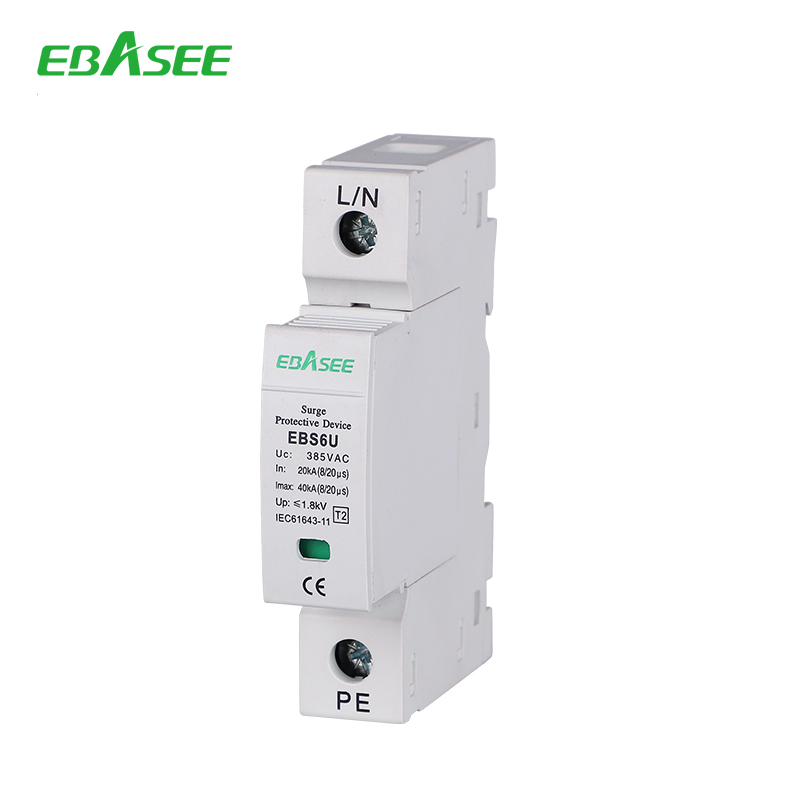

Surge Protection Device
This surge protection device (SPD) protects electrical installations from transient overvoltages. It complies with IEC61643-11 standards.
Technical Specifications
Product Overview
Professional Surge Protection
This Surge Protective Device (SPD) is engineered to safeguard electrical installations against transient overvoltages. Designed for reliable performance in residential, commercial, and industrial settings, it adheres to international safety standards. The device features a robust thermoplastic housing and is compatible with standard guide mounting systems.
Technical Specifications
- Model Name
- EBS6U
- Compliance Standard
- IEC61643-11
- Available Poles
- 1P2P3P4P
Performance Metrics
Key Electrical Ratings
275 VAC
Max Continuous Voltage
20 kA
Nominal Discharge Current
40 kA
Max Discharge Current
1.8 kV
Voltage Protection Level
- Response Time
- 25 ns
Installation and Design
Wire Cross Section
- Min: 4mm²
- Max: 35mm²
- Mounting
- 36mm Standard Guide
- Housing Material
- Thermoplastic UL94-V0
- Dimensions (L*W*H)
- 90*70*54mm
Operational Environment
- Operating Temperature
- -5 to +40 °C
