AC Surge Protection Device
This surge protection device safeguards electrical systems and equipment from transient overvoltages. It is designed to protect against lightning strikes and switching operations.
Technical Specifications
Product Overview
Professional Surge Protection
This Surge Protective Device (SPD) is engineered to safeguard sensitive electrical systems and equipment from transient overvoltages triggered by lightning strikes or switching operations. Featuring a modular design for effortless installation and replacement, it utilizes a high-performance MOV core housed in a durable thermoplastic casing. This device is compliant with international safety standards, making it an essential component for ensuring the reliability and longevity of electrical installations in various environments.
Technical Specifications
Performance Ratings
385 V AC
Max Continuous Voltage (Uc)
40 kA
Max Discharge Current (Imax)
20 kA
Nominal Discharge Current (In)
1.8 kV
Protection Level (Up)
Electrical Configuration

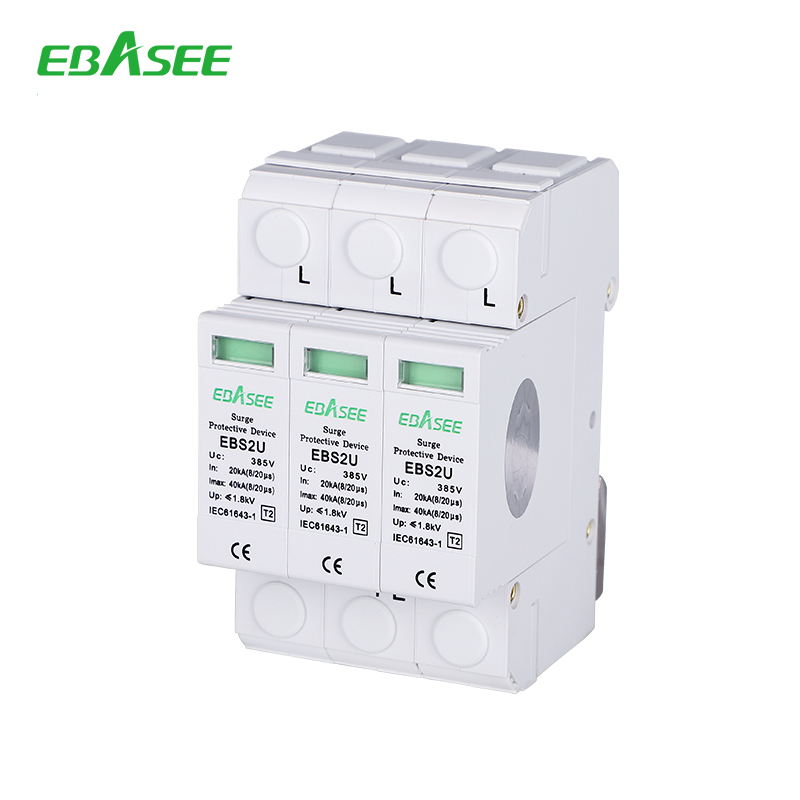

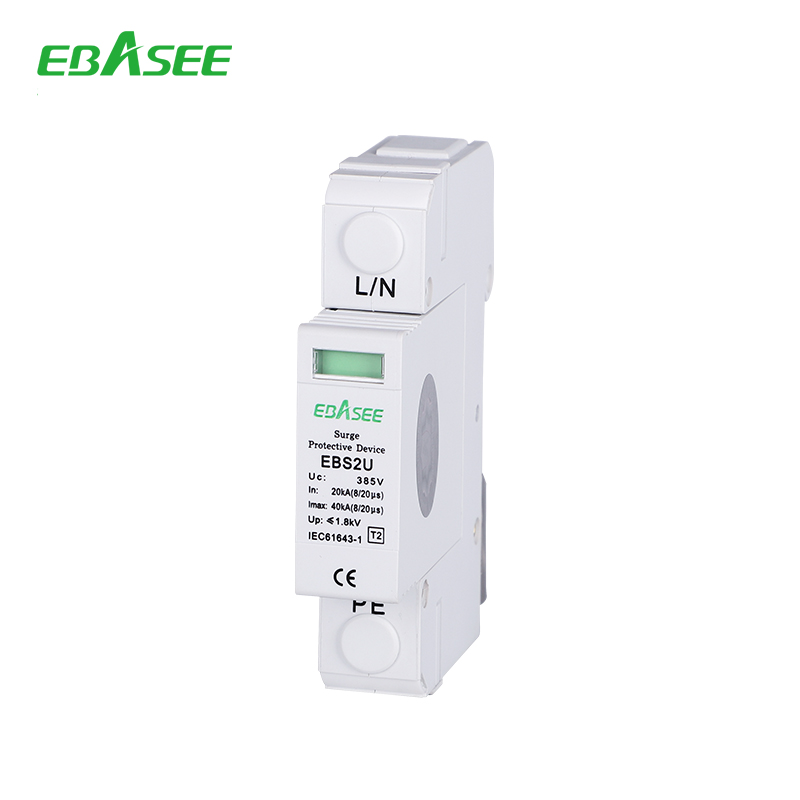

- 1P Configuration
- 2P Configuration
- 3P Configuration
- 4P Configuration
- Regulatory Standards
- IEC61643-11CERoHSIP20
Operating Parameters
Operational Environment
| Parameter | Specification |
|---|---|
| Temperature Range | -40℃ to 80℃ |
| Response Time (tA) | 25ns |
| Status Indicator | Green/Red |
| Mounting | 36mm Standard Guide |
Physical and Installation
Installation Specs
| Feature | Value |
|---|---|
| Wire Capacity | 4mm² to 35mm² |
| Dimensions (LxWxH) | 90x70x54mm |
| Casing Material | Thermoplastic UL94-V0 |
| Remote Signaling | Optional |
