Surge Protection Device
This surge protection device is designed to protect sensitive electronic equipment from transient overvoltages. It provides reliable protection against surges and spikes.
Technical Specifications
Overview

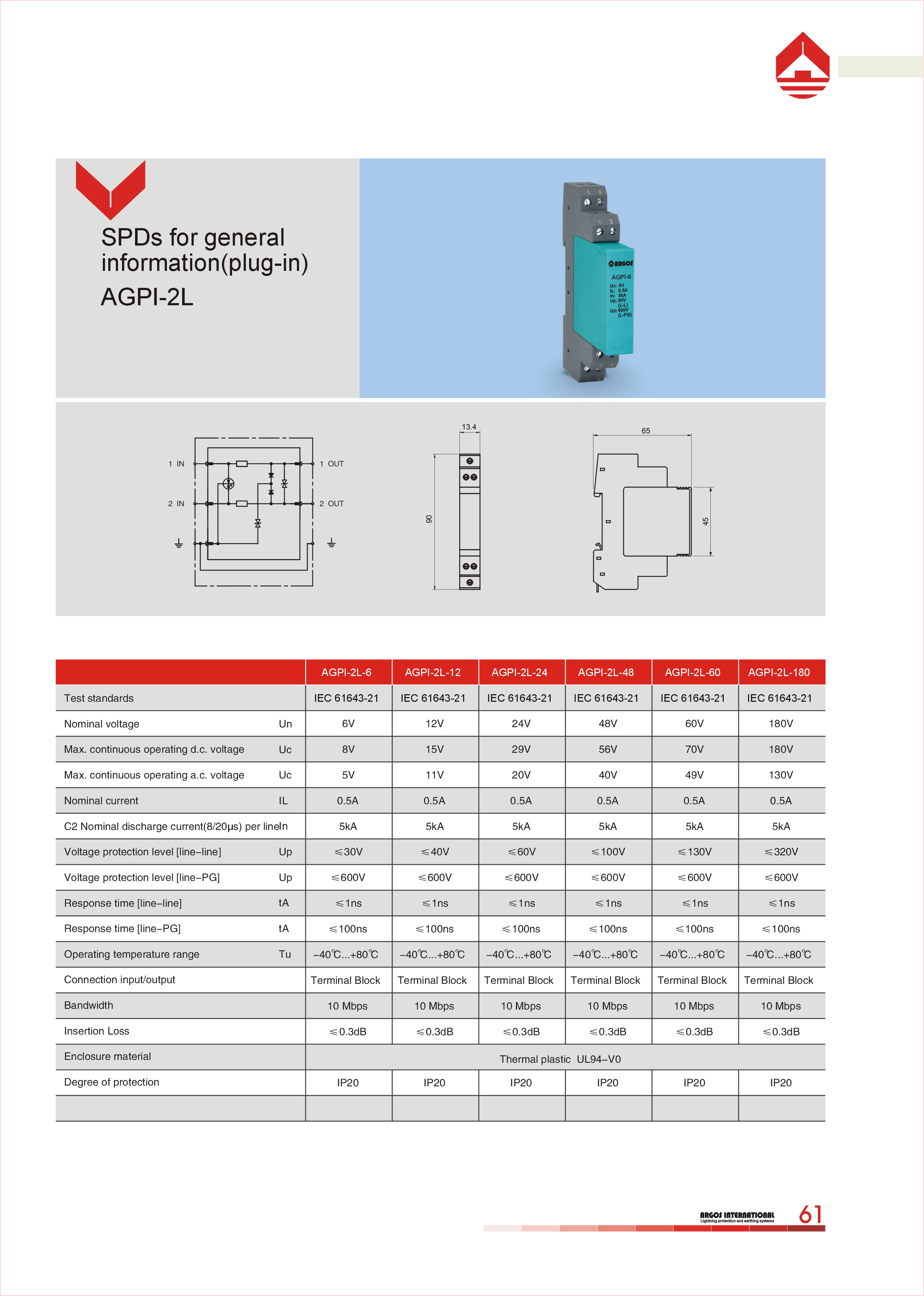

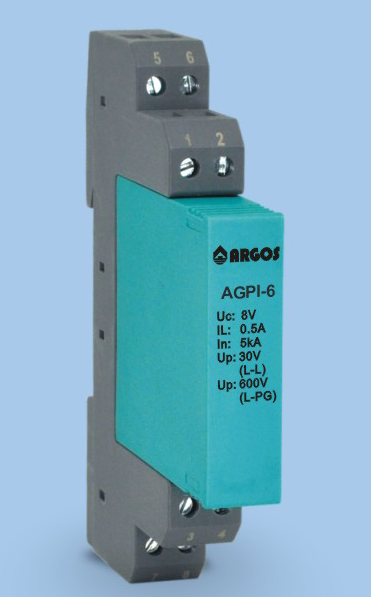

Professional Data Protection SPD
This series of Surge Protection Devices (SPDs) is specifically designed to safeguard sensitive electronic equipment and data lines from transient overvoltages and lightning surges. Featuring a robust plug-in design with terminal block connections, these units offer high discharge capacity and fast response times to ensure continuous system reliability. They are ideal for a wide range of industrial and commercial applications requiring dependable signal and data line protection.
Performance Highlights
Key Performance Metrics
5 kA
Nominal Discharge Current (In)
1 ns
Response Time (L-L)
10 Mbps
Bandwidth
Technical Specifications
- Nominal Voltage Options (Un)
- 6V12V24V48V60V180V
- Max. Continuous Operating DC Voltage (Uc)
- Up to 180V (model dependent)
- Nominal Current (IL)
- 0.5 A
- Voltage Protection Level (Line-Line)
- ≤30V to ≤320V
- Voltage Protection Level (Line-PG)
- 600 V
- Insertion Loss
- ≤0.3dB
Physical & Environmental
Degree of Protection
IP20
- Operating Temperature Range
- -40°C to +80°C
- Enclosure Material
- Thermal plastic UL94-V0 / Polyamide PA 6.6
- Connection Type
- Terminal Block
Compliance
Test Standards
- IEC 61643-21
Advanced Protection Data
High Capacity Model Comparison
| Parameter | Standard Series | High Capacity Series |
|---|---|---|
| Total Discharge Current (In) | 5kA | 20kA |
| Nominal Current (IL) | 0.5A | 1.0A |
| SPD Class | General Information | TYPE2 P1 |
