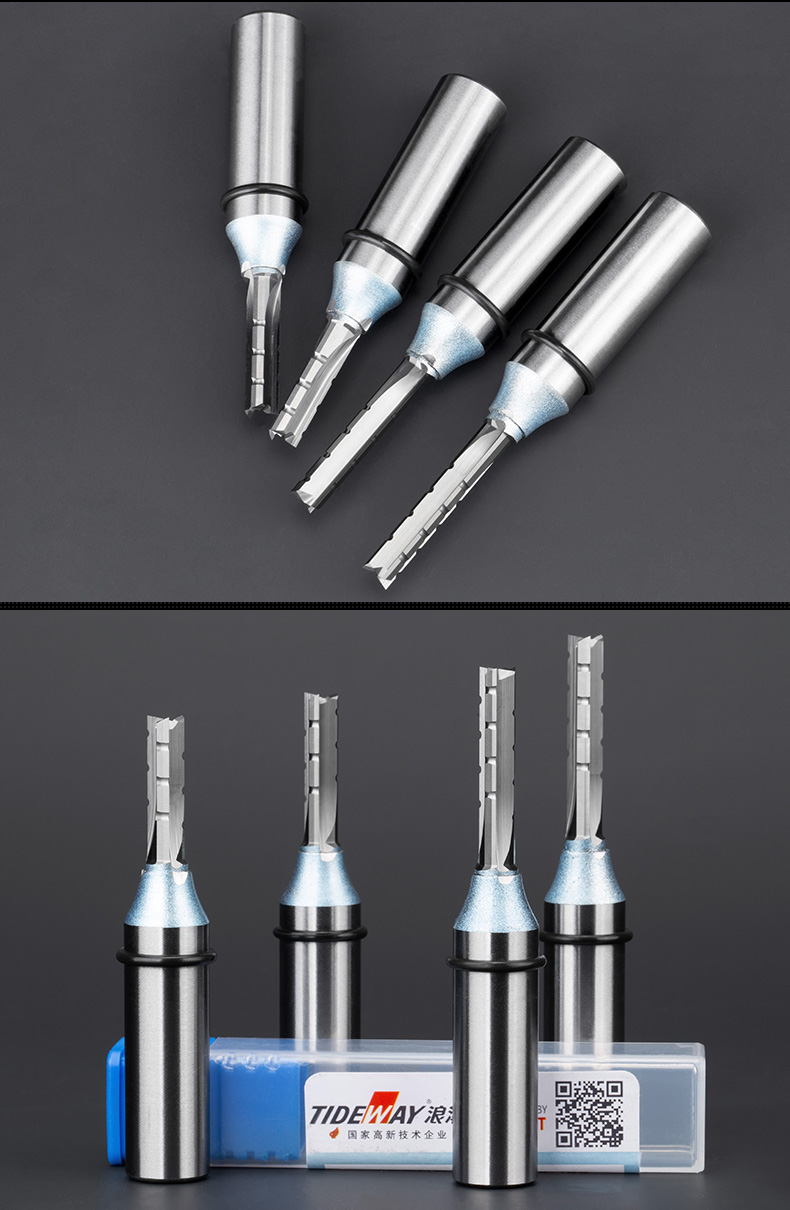

Straight Router Bit
This straight router bit is designed for clean and accurate cutting in various materials. Its high-quality carbide cutting edges ensure extended durability and optimal performance for creating grooves, dados, rabbets, and for general stock removal.
Technical Specifications
Product Overview
High-Performance Straight Router Bit
This industrial-grade straight router bit features a specialized three-edge staggered tooth structure for superior stability and chip removal. Engineered with high-toughness carbide rods (HRA94.5), it delivers exceptional precision and durability for demanding machining tasks. Designed to enhance throughput, it offers increased cutting speeds and longer service life, making it a cost-effective choice for professional woodworking and industrial production environments.
Technical Specifications
- Carbide Hardness
- 94.5 HRA
- Blade Structure
- Three-edge staggered tooth
Performance Metrics
Feeding Rates
26 m/min
Non-veneered Plate Feed Rate
18 m/min
Veneered Plate Feed Rate
- Key Performance Benefits
- Enhanced Chip RemovalReduced NoiseHigher Cutting SpeedIncreased Tool LifeHigh Stability
Versatility
Supported Operations
- Cutting
- Grooving
- Drilling
- Trimming
- Engraving
- Bottom cleaning
