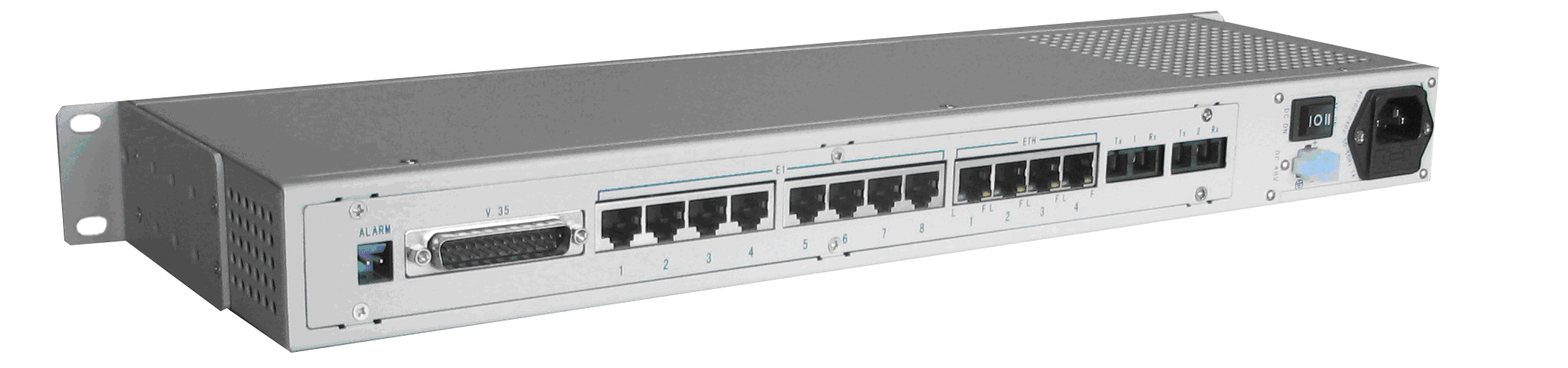

STM-1 Multi-Service Add-Drop Multiplexer
The STM-1 Multi-Service Add-Drop Multiplexer (ADM) is designed for telecommunication networks. It supports TDM and Ethernet services to meet the needs of today’s network evolution.
Technical Specifications
Overview
STM-1 Multi-Service Add-Drop Multiplexer
This STM-1 Multi-Service Add-Drop Multiplexer is a compact, 1RU solution designed for high-efficiency telecommunication network management. It supports versatile topologies, including both ring and linear configurations, and offers robust protection switching via MSP and SNCP. With multi-service capabilities covering E1, FE, and V.35 interfaces, it provides a flexible and reliable infrastructure component for modern data transmission.
Technical Specifications
Supported Services
- E1
- Fast Ethernet (FE)
- V.35 (Framed/Unframed)
Compliance
RoHSGFPVC-12 VCAT EoS
- Supported Topologies
- RingLinear
- Protection Switching
- MSPSNCP
Power & Physical
- Form Factor
- 19-inch 1RU Rack Mount
- Power Supply
- -48V DC100~240V AC
Management & Features
Management & Diagnostics
- Built-in BERT
- Loop-back capabilities
- Remote AC power failure alarm
