Technical Specifications
Overview

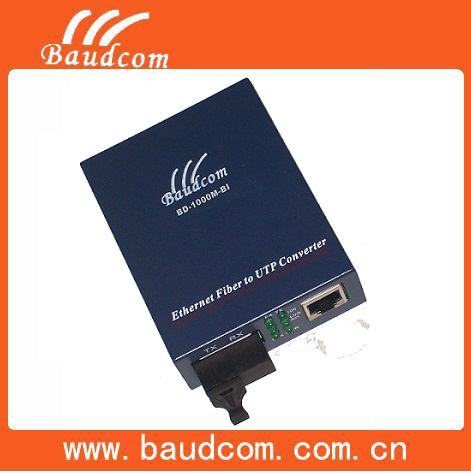

Gigabit Ethernet Fiber Media Converter
This WDM Gigabit fiber media converter is designed to efficiently transmit 1000M Ethernet electrical signals over a single fiber optic cable. It seamlessly bridges 10/100/1000M Base-TX Ethernet to 1000Base-FX transmission, effectively extending network reach. With support for VLAN tagging and advanced broadcasting storm prevention, it provides a stable and reliable solution for long-distance network connectivity.
Technical Specifications
- Network Standards
- IEEE802.3IEEE802.3uIEEE802.3zIEEE802.3ab
- Ethernet Interface
- RJ45
- Auto-Adaptable Speed
- 10/100/1000M
- MAC Address Capacity
- 2000 MAC
- VLAN Support
- 802.1Q (up to 16 groups)
Transmission Performance
Transmission Metrics
100 m
Cat5 Distance
550 m
Multi-mode Distance
80 km
Max Single-mode Distance
Environmental & Physical
- Operating Temperature
- 0°C to +50°C
- Storage Temperature
- -20°C to +70°C
- Dimensions (W x L x H)
- 118 x 70 x 27 mm
Power Supply
Power Options
- DC-48V (Range: DC-36V to DC-72V)
- AC220V (Range: AC160V to AC240V)
Ordering Information
Available Models
| Model | Description |
|---|---|
| BD-1000M-BI-20 | WDM media converter, 10/100/1000M ethernet, single fiber, 20KM |
| BD-1000M-BI-40 | WDM(BI-DI) media converter, 10/100/1000M ethernet, single fiber, 40KM |
