Technical Specifications
Product Overview

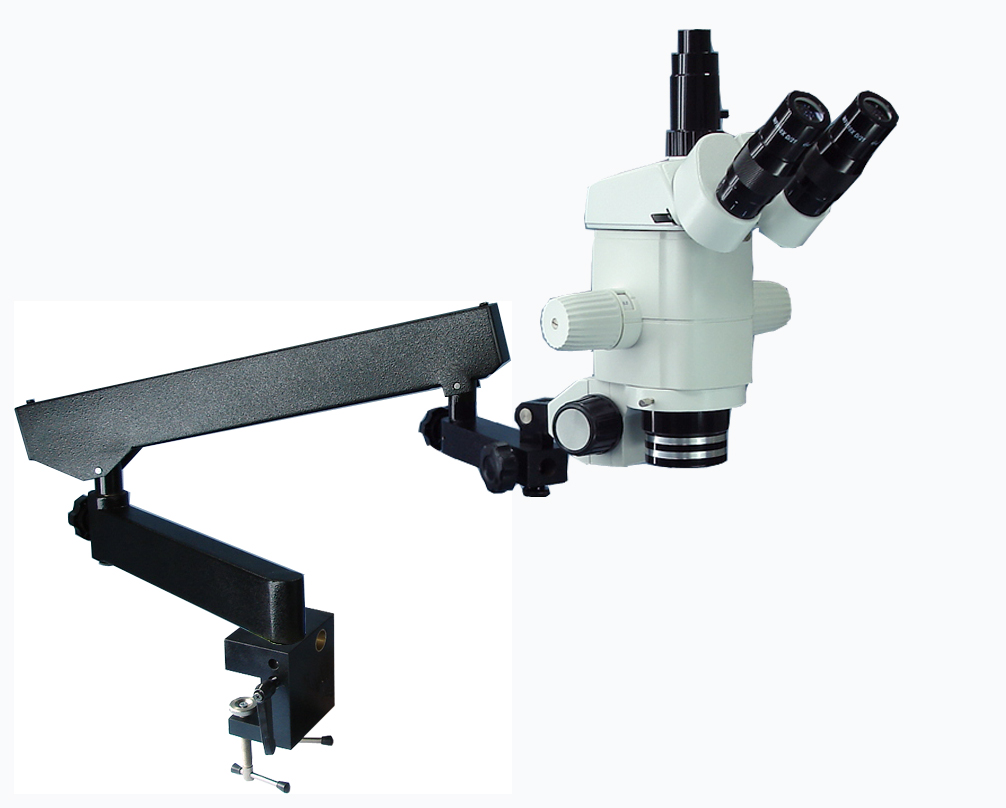

Professional Stereo Zoom Microscope
The SM series stereo zoom microscope is engineered for precision inspection and laboratory applications. Featuring a high-quality optical system with a robust 8:1 zoom ratio, it provides distortion-free, high-contrast imagery across the entire range. Its modular construction and flexible boom arm design ensure adaptability for diverse industrial and research workflows.
Optical Performance
- Zoom Ratio
- 8
- Magnification Range
- 6.2x - 50x
- Field of View
- 33.9mm - 4.2mm
- Working Distance
- 80 mm
Ergonomics & Viewing
- Interpupillary Distance
- 50mm - 75mm
- Dioptric Correction
- +5 to -5
- Included Eyepiece
- WFH10X-D/21 High eye point, wide-field
Mounting & Mechanical
- Flexible Arm Range
- 745 mm
- Max Clamp Opening
- 57 mm
Illumination
- Illumination Type
- 8W Fluorescent Ring Light
System Compatibility
- Key Capabilities
- Modular DesignTrinocular HeadDistortion-Free OpticsParallel Beam Paths
