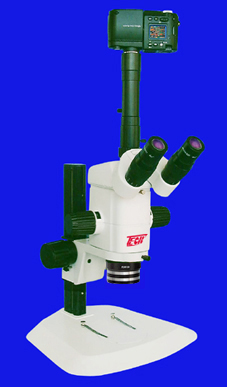

Stereo Video Microscope with 8:1 Zoom Ratio
This stereo video microscope features two parallel beam paths and a high-quality optic system for high-resolution imaging. It offers an 8:1 zoom ratio and modular design for various application packages.
Technical Specifications
Overview
High-Precision Stereo Imaging
This modular stereo video microscope is designed for demanding industrial and research applications requiring detailed observation and precise manipulation. Featuring an 8:1 zoom ratio and a high-quality plan achromatic optical system, it delivers sharp, distortion-free imagery. Its versatile construction supports a wide range of magnification options and is compatible with external CCD, camera, and computer interfaces for advanced documentation.
Optical Performance
Key Performance Metrics
80 mm
Working Distance
21 mm
Eyepiece Field of View
76 mm
Mounting Diameter
- Zoom Ratio
- 8 :1
- Magnification Range
- 6.2x - 50x
- Dioptric Correction
- +5 to -5
Stand and Hardware
Focusing Specifications
| Feature | Measurement |
|---|---|
| Focusing Distance | 175mm |
| Track to Plate Centerline | 128mm |
| Extended Working Distance | 250mm |
- Base Dimensions
- 335 x 305 x 21 mm
Compatibility
- Imaging Compatibility
- CCD CameraDigital CameraTelevision OutputComputer Interface
